Easy and Fast Hand Waving Acquisition System for 5D Motion Film

Product Specifications

Prod Model:	JMDM-HW01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Acquisition Time:	as Long as The Film Plays
Simple:	a Sensor Hardware and Software Control
Type:	3dof or 6dof
Item No.:	Jmdm-Hw1
Function:	Automatic Control
Task:	Program
Structure:	Combination
Signal:	Continuous
Mathematical Model:	Non-Linear
Material:	Stainless Steel
Customized:	Customized
Condition:	New

Product Description

Easy and fast hand waving acquisition system for 5D motion film
1. Specification
Makes movements editing of 3D/4D/5D/7D motion movies as easy as playing!

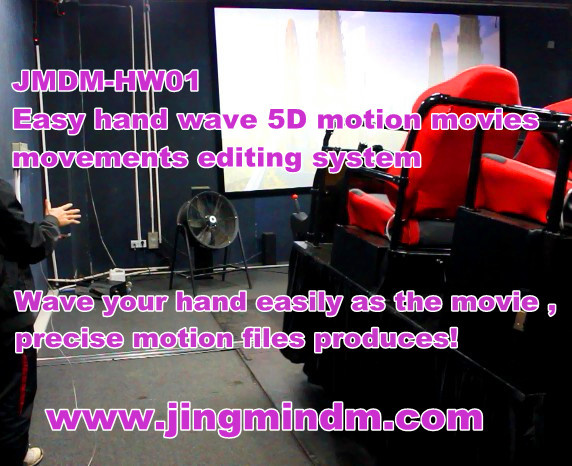

1.1. Wave your hand easily as the movie, precise motion files produces! It's the editing movements process of 5D movies. You won't need any metal frame units, only wave your hand and use JMDM-HW01 editing system.

1.2. Wave your hand, at the same time, the motion chairs are carrying the movements you are waving and producing. It helps you with confirm if the motion is good and precise.

1.3. The system only need wave your hand, use the JMDM-Hand Motion hand device and JMDM hand motion type 5D motion action acquisition software. It can collect action in the meantime real-time controlthe motion of the dynamic seats platform by indicating gesture and makethe gatherers knowthe current situation of the platform, sothat accurate controllingthe range of the movement and speed and makethe acquisition is more precision.

1.4. It can be usedfor both 3DOF platform and 6DOF platform.

2. Acquisition process
The system only need wave your hand, use the JMDM-Hand Motion hand device and JMDM hand motion type 5d motion action acquisition software. It can collect action in the meantime real-time control the motion of the dynamic seats platform by indicating gesture and make the gatherers know the current situation of the platform, so that accurate controlling the range of the movement and speed and make the acquisition is more precision.

3. Feature
1)System composition and usage is simple: Only a tiny hand device and acquisition software can be realized hand motion acquisition 5 d movie action. No longer need to slowly edit the TXT document like the difficult movement of a snail (1 generation tradition action edit mode), also do not need any metal frame type acquisition (the second generation new action edit mode)
2)Acquisition and control at the same time to facilitate real-time validation and adjust to collect range of the movement and speed.
Collect actions by hand motion in the meantime dynamic seat perform an action, it effective verifies the exactness of the action!
3)It achieves to create the multiple types of platform action file at the same time.
Achieve to create the multiply types of platform action files after acquisition in one time, such as: The low end 3DOF(pneumatic cylinder /hydraulic cylinder with single valve, double valves without linear transducer), high- end 3DOF (pneumatic cylinder /hydraulic cylinder with double valves and linear transducer, electric cylinder ) and low-end 6 DOF (pneumatic cylinder /hydraulic cylinder with single valve, double valves with linear transducer), high-end 6 DOF( pneumatic cylinder /hydraulic cylinder with double valves and linear transducer, electric cylinder).
