Product Specifications
| Prod Model: |
YH-1350F/ 53.2'' Has been passed CE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Knife Pressure 25-500g: |
Memory 512k-4m |
| Type: |
Cutter |
| Work Type: |
Cut Off |
| Material: |
High-speed Steel |
Product Description
Currently, 3M and AVERY DENNISON Diamond and imported super reflective film are more and more widely used in China and even the whole world. The average cutting plotter could not cut thoroughly or there is deformation when processing these materials, for they are made according to the theory of micro prism (harder) and have highly flexible and sticky back-adhesive, which costs waste of manpower and materials. We designed this super reflective film cutting machine to solve the mentioned problem. We spent 1 year trying our best to make it better and doing many cutting businesses for our customers and now it has replaced manual operating.
This machine can also cut brown paper of 1mm thick and sandblasted film. The highly precise cutting enablesit to show its skill in the industries of packaging, costume plate making and automobile beautification.
Standard Features
Streamline design, brief and natural.
More specialized integrated circuit, quick speed, less noise, strong anti-jamming ability, simultaneous speed of curves and straight lines, smooth curves, high precision, more remarkable performance and stabilization.
The intelligent paper detecting function automatically halt working when lacks paper, which saves the cost for the customer. The intelligent radiation design guarantees the machine works well.
It can cut material of at least 16cm wide which creates value for customers.
Automatic paper feeding system satisfies the long time cutting of entire volume and overweight materials.
The great knife pressure meets needs of cutting all ranks of 3M diamond reflective film available in current markets.
Standard language and strong software compatibility support professional soft wares like ARTCUT, Cutting Master, FLEXISIGN and etc.
Technical parameters

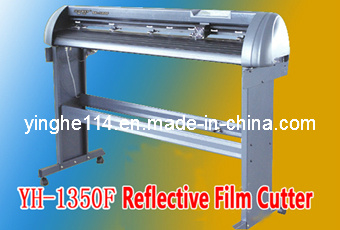

Model YH-1350F / 53.2''
Max. Paper feeding 1350mm
Max. Cutting measurements 1250mm*infinite
Knife Pressure 25-500g
Cutting speed 50mm/s-500mm/s
Memory 512k-4M
Interface RS-232 or Memory disk
Language DMPL HPGL
CPU 4CPU control
Power Supply AC90V-AC240V 50Hz-60Hz 60W
Driving System Stepper
LCD Chinese display with backlight
Working Temperature -10- 35
Environmental Humidity 5%-95%
Yinghe Group LIMITED is one of the biggest leading company for sign equipment & media in China., Since founded in 2002. It mainly produces all kind of advertisement equipment, marking equipment and engrave machine such as inkjet printer, engraver, cutting plotter, DOT pin marker, and is a high scientific and technical enterprise that combines research, development, production and sale together.
Yinghe Group LIMITED relies on market experience for many years, establishes a relatively stable, continuously expanding and perfect sale and after-sale-service network. Our products have spread all provinces, municipalities and autonomous regions all over in China. Since 2002, Yinghe has begun targeting the foreign market. Now our product has been sold to Europe, USA, South America, North America, and Africa, totally more than 50 countries.
Branch office: China: Guangzhou, Shanghai, Beijing, Wuhan, Xi'an, Kunming, Hongkong.
Overseas parter: Nigeria, India, Poland.
