Dongguan Yuanyao Electronics Technology Co., Ltd. >> Easy Operation Ipx5 Test Standard Water/Rain Proof Flush Test Instrument

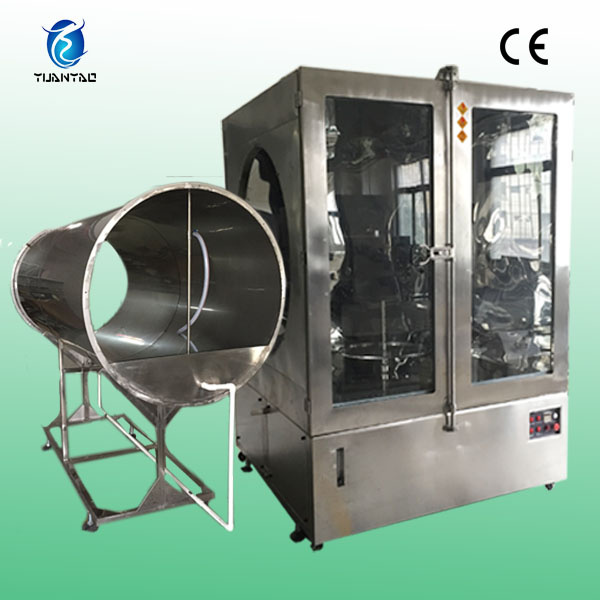

Easy Operation Ipx5 Test Standard Water/Rain Proof Flush Test Instrument

Name: Easy Operation Ipx5 Test Standard Water/Rain Proof Flush Test Instrument
Brand: China-Manufacturer-Directory.com
SKU: 736736225
Availability: InStock
Rating: 4.3 (84 reviews)

Supplier:	Dongguan Yuanyao Electronics Technology Co., Ltd.
Price:	US $ 4000-20000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	YSRT-1728-E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Internal Size(Mm):	120012001200
Test Specimen Frame:	17rpm
Flow Rate Of The Weter:	0.07L/Min
Material:	SUS#304
Water Temp.:	Normal
IP Class:	Ipx1~Ipx8
Warranty:	12 Months
Other Components:	Chamber Lamp.Wiper, Casters with Adjusters
Service:	Customization
Application:	Auto Testing Machine
Type:	Material Testing Machine
Weight:	0-100Kg
Power Source:	AC220V
Control:	Controller
Oil Cylinder Position:	N/a

Product Description

Easy Operation Ipx5 Test Standard Water/Rain Proof Flush Test Instrument

Specification

1 Easy operation and resonable price
2 Internal material: SUS#304
3 Digital electronic controller
4 High quality, good performance
5 Protection: IP

Application

Water/Rain Proof Flush Test Instrument mainly applies to communications products, auto parts (such as automotive rear-view mirror, car audio, automotive electronics, automotive lighting, car lights, motorcycle lamps, motorcycle mirrors), outdoor lighting and signaling devices.

Package ang Delivery

Package: Strong wooden cases, meet the international standard.
Delivery details: In 15-20 working days.

Features

1. Digital setting, operating easy, maintenance quickly.
2. Design consider auto maker's sand electronic industry testing.
3. Adopt large viewing glass can let operator see the specimen clearly.

Model		YSRT-1728-A		YSRT-1728-E(IEC-529)(CNS14165)
Internal Dim.W×H×D(mm)		1200×1200×1200		1200×1200×1200
External Dim.W×H×D(mm)		1750×1850×1300		1750×1850×1300
Water Temp.		Normal		Normal
Spray Type	Total Water Flow(L/min)	R1	1.8	IP×1	With in 1~1.5mm/min(In drip box)
		R2	3.2	IP×2	With in 3~3.5mm/min(In drip box)
		S1	24.5	IP×3	angle±600,R:400mm,1.1L/min
		S2	39.2	IP×4	angle±1800,R:400mm,1.8L/min
	Pressure of spray nozzle(kgf/cm*2)	R1	0.1	1.Flow rate of the water=0.07L/min 2.1P×3,Radius:400mm,16Number or open holes=16,total water flow:1:1L/min. 3.1P×4,Radius:400mm,25Number or open holes=25,total water flow:1:8L/min. *Radius:200mm,R400mm. (For 1P×3,1P×4 only)
		R2	0.3
		S1	1
		S2	3

(RPM)Test Specimen Frame		17RMP		1RPM
Spray Nozzle Rotation Speed		23RPM		Promote the pipe on both sides of the vertical line of 30 ° each time back and forth about four seconds to promote Swing 60 ° from vertical for 4 seconds at one time Promote the pipe on both sides of the vertical line of 180 ° for about 12 seconds to promote one round Swing 180 ° from vertical for 12 seconds at one time





Material	Interior	SUS#304
	Exterior
Other Components		Chamber lamp.Wiper casters with Adjusters		Chamber lamp.Wiper,casters with Adjusters

Power Source(K.W.)		AC 1Ψ 220V 60/50Hz 4KW

If you are interested in the items, please contact me soon.

Founded in 2009, Dongguan Yuanyao Electronics Technology Co., Ltd. Has become a leading manufacturer of environmentally friendly test chambers.

Our main products include Programmable Temperature & Humidity Chambers, Thermal Shock Testers, Walk-In Environmental Test Rooms, LCM (LCD) Aging Chambers, Salt Spray Testers, Aging Ovens, Vibration Combined Test Chambers, Steam Aging Testers, etc.

We have helped companies in a wide range of industry sectors including photo electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions realize their climate test objectives.

We have developed rapidly these years. The commitment of our experienced team of engineers has been and continued to be excellence - excellence in engineering and design, excellence in manufacture and excellence in the service that we provide for our ever increasing lists of customers.

Our resources and expertise enable us to supply high quality equipment ranging from simple benchtop chambers to major "turnkey" projects. We can produce equipment according to customers' Exact requirements, from conception to completion.

We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget. We also provide timely delivery.
