Easy Operation Mortar Spray Machine for Sales

Name: Easy Operation Mortar Spray Machine for Sales
Brand: china-manufacturer-directory.com
SKU: 703764342
Availability: InStock
Rating: 4.3 (31 reviews)

Supplier:	Xingtai City Judu Commercial Co., Ltd.
Price:	US $ 8000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	N8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Yellow

Product Description

easy operation Mortar Spray Machine for sales
product desciption:
brief introduction of mortar spray machine:
spraying machine is a new high working capacity machinery, mainly applicable to 5m * 5m section roadway concrete spraying operations. The equipment concrete pump concrete delivery through a pipe to the robotic nozzle with compressed air with accelerator of the jet to be sprayed concrete tunnel walls. Shotcrete machine structure is rational, humane design, reliable performance, easy operation and maintenance, long service life. Work clean, low noise, small rebound rate. The machine greatly reduces the dust concentration and the nozzle at the machine next to improve the working environment of workers and reduce the pneumoconiosis due to dust caused.

technical parameters of mortar spray machine:

Terms	Unit	N8
The maximum theoretical throughput	m³/h	2.27
Theoretical maximum pumping pressure	MPa	1.8
Theoretical maximum level of transmission distance	m	60
Vertical theoretical maximum transmission distance	m	18
Delivery pump		Gravity Ball Piston Pump
Concrete cylinder diameter / stroke	mm	Φ79/88.8
Feeding height	mm	740
Maximum particle size	mm	5
Silo volume	M³	0.14
Electric motive power	KW	2.2
Electric machine speed	r/min	2900
Motor voltage / frequency	V/Hz	380/50
Compressed Air Pressure	MPa	0.8
Air compressor displacement	L/min	185
Air duct	mm	Φ8
Dimensions	mm	1850X860X870
Weight	kg	260
control method		Wireless remote control and pneumatic control

advantage of mortar spray machine:

1. spraying machine new machine instead of handmade in construction plastering area.

2. The capacity is as 15 professional plasterers.

3. The quality is subject to international wall plastering standard.

4. Easy operation (no need professional workers, if you are familiar with the machine, two persons are ok).

5. Saving more than 20% raw material (cement &sand).

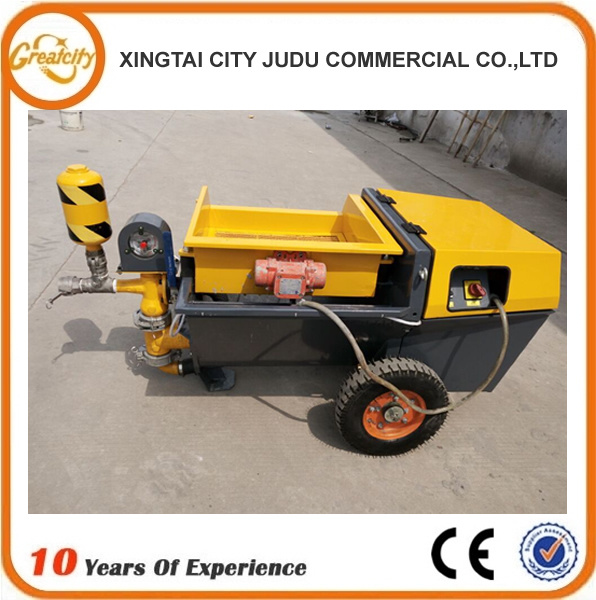

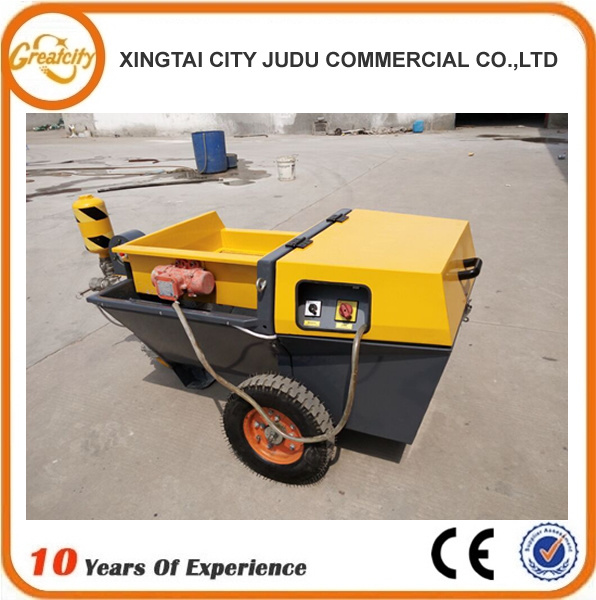

more pictures of mortar spray machine:

packing and shipping of mortar spray machine:

Packaging : in standard wooden case

shipping :by sea or by land ,any way is ok .

our services

Pre-sale Service

1.Supply item design,process design.

2.Help you to chose the fittest machine.

3.Making the machine according to your requirement.

Sale Service

1.Acceptance equipment together with you .

2.Help you to make the method statement and the details of the processAfter Service

1.Guarantee for a year.

2.Quality problem,we will sent you the accessories.

3.Free repair whole using life(without the freight and accessories charge).
