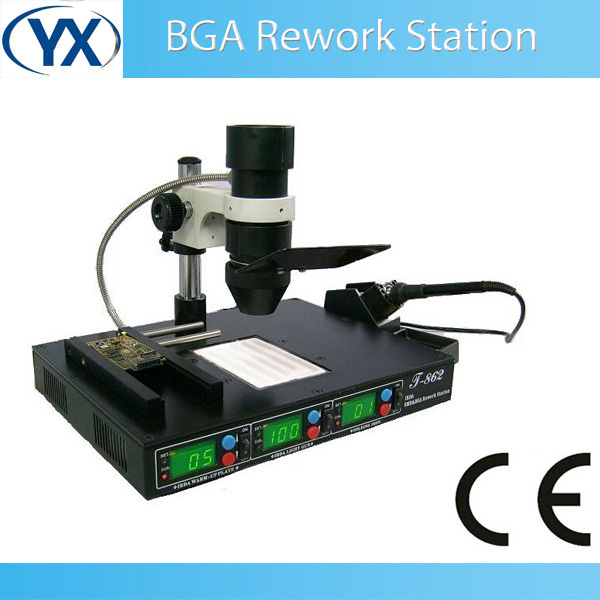

BGA Rework station T862
Features:
1. Use of infrared welding technology which is developed independently.
2.Use of an infrared heat lamp. Heat is easy to pierce and distribute evenly, which overcome
disadvantage (burn out elements) of traditional welding machines.
3.Easy operation. You just need one-day training and you can operate it skillfully.
4.No need for unsolder tools. IRDA Welder T-862 can unsolder all the elements between 15 and
25 mm.
5.This machine has 350W hot-melt system. Its preheating area is 80x120mm.
6.Infrared heating without heated air flowing. No impact on circumjacent small elements. It is suitable
for all of the elements, especially Micro BGA elements.
Technical parameter:
| Working Voltage | AC220V/50Hz AC110V/60Hz |
| Output power | 800W |
| Infra-red lamp body temperature adjustable | 100ºC-350ºC |
| Preheating dish temperature adjustable | 60ºC-200ºC |
Components:
| Description | Quantity |
| Welder base | 1 |
| Guide rod | 1 |
| Locating ring | 1 |
| Lamp assy | 1 |
| Circuit Board(PCB) support | 1 |
| Power Cable | 1 |
| Soldering iron | 1 |
| Soldering iron support | 1 |
| User Manual | 1 |
Our Services:
1.Payment term:T/T,Western Union,Paypal
2.Delivery time:Goods in stock,after received payment
3.Warranty:One year
