Easy Operation Rotary Drying Machine Thd15-24

Product Specifications

Prod Model:	THD15-24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	11kw
Length:	15m
Drum Diameter:	2.4m
Evaporate Qty:	0.8 T/H
Certification:	SGS

Product Description

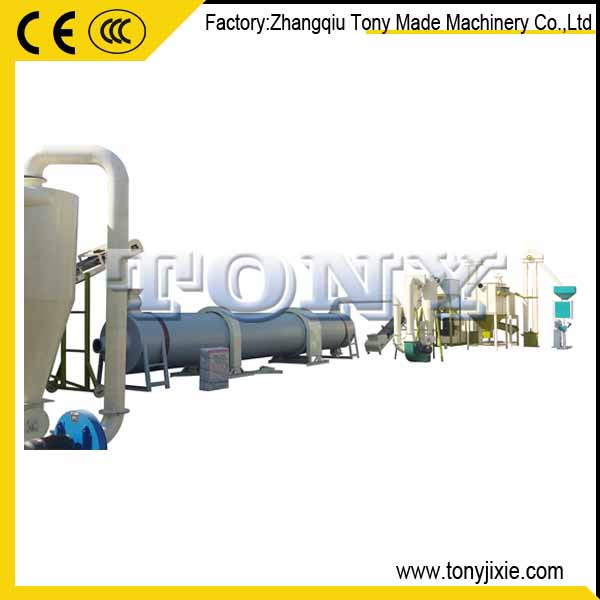

Easy operation rotary drying machine THD15-24

Principle of work
Drum-type dryer is tilted slightly and the cylindrical rotating body, the wet material enter the upper, at the same time, the dry materials are collected on the other side of the lower part. Hot air from the feed end or discharge end access to the material and discharge from the other side of the upper part.

The performance characteristics
Drum-type dryer's evaporation capacity is generally 0.2-1.5T/h, with the increase in air temperature increased, and with the nature of material changes in the water.
Equipment moves smooth, reliable, non-wearing parts, less malfunction, long service life, which have been widely used of the drying industry.

The sphere of application
First, from the material form, the centrifuge cake dewatering, filter press cake; the free flow of power, granule, flake, fiber and other dry materials
Second, from the material scope of application, it is widely used in minerals, building materials, chemical products, fertilizer, organic power, fodder, wine tank, starch residue, corn residue, soybean residue, such as drying.
Third, from drum-type drier of the bodies, it can be divided into direct, indirect heating, ventilation tube heating, indirect heating steam pipe, composite structures and other forms of heating.
Fourth, from the drying temperature, it is between 60°C and 600°C, in principle, the higher the temperature, the higher the evaporation intensity.

Technical parameters:

Model	Power(KW)	Evaporate QTY(T/h)
THD10-12	4	0.2
THD12-12	5.5	0.3
THD15-12	7.5	0.5
THD15-24	11	0.8
THD18-12	11	0.7
THD18-24	15	1.2
THD20-12	18.5	0.9
THD20-24	22	1.5

Packaging and Delivery
Packaging details:packing with wooden case
Delivery detail: 10 days after receive your payment
Our servive:
Caring service, carefully manufacture and desirable price make customers at ease.
"Customer-oriented", providing customers with whole considerate services;
"Service as core," providing the most suitable products to customers;
"Quality-centered," All-round services to every customers!
Technical support: on-site technical training and technical advice available.
Company information:
ZHANGQIU TONY MADE MACHINERY CO., LTD is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mills, feed pellet mills, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.
TONY has agents in Germany, France, Serbia, Italy, Bulgaria, Thailand, Malaysia, Vietnam, Croatia, Serbia who can supply machines timely with competitive price and also do better after-sales service.
We can also supply the pellet machines as following:
1.The SKJ Series flat die pellet mill with the volume 100kg per hour to 2500kg per hour.
2.The TYJ Series ring die pellet mill with the volume 800kg per hour to 8 ton per hour.
3.The SKJD Series Pellet Mill with Diesel Engine with the volume 100kg per hour to 400kg per hour.
4.The SKJT Series Pellet Mill with Tractor Engine with the volume 80kg per hour to 400kg per hour.
5.straw Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from capacity 0.5 ton per hour to 20 ton per hour.
