Product Specifications
Prod Model: |
Dispenser Robot |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Precision: |
High Precision |
Heating System: |
Electric |
Demoulding: |
Automatic |
Function: |
High Temperature Resistance |
Warranty: |
12 Months |
Customized: |
Customized |
Condition: |
New |
Automatic Grade: |
Automatic |
Certification: |
ISO |
Mould Life: |
>1,000,000 shots |
Product Description

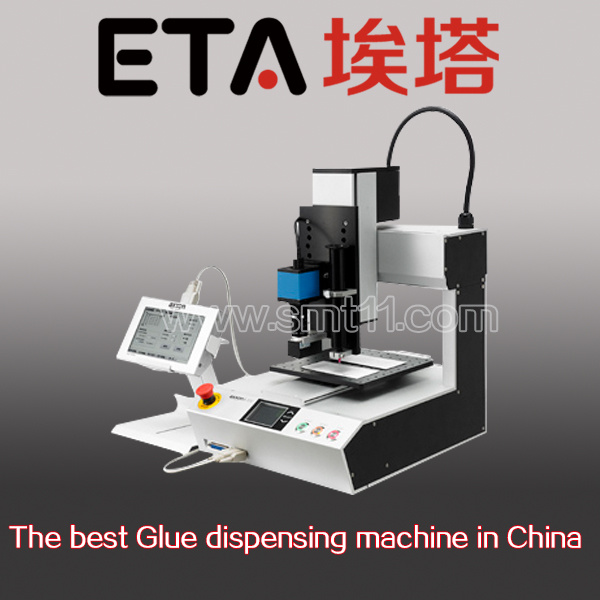

Ecnormic Desktop glue dispenser robot for COB packing S500
All the three axles use high-grade servo motors and precision ball screws, guaranteeing high-speed, high-precision and consistent movements
Robot in line with the structural mechanics of the high-rigid structure,in high-speed movement can reduce the vibration caused by the deviation
Simple programming environment, with such functions as shift setting, matrix calling and locus repetition
Commonly used graphs (circle, ellipse, rectangle, etc.) need no teaching and may be called by directly inputting parameters
Capable of realizing any 3D movement locus
Supporting CAD graphic import
Wall-mounted touch screen meeting the principles of human engineering,easy to operate. Modular design, facilitating repair and maintenance
Graphic preview function
Recommended application
Automobiles and parts , Track traffic , Semiconductor and microelectronics , Optical products , LED , FPD , Consumable electronic products , Life science , Avionics , Military industry , Motor , Communications equipment , Home appliances , Office equipment
Specification | B-series | S-series |
Working area(mm) | B-200: 140*140*75mm | S-300:240*240*100mm |
B-300: 240*240*75mm | S-500: 450*450*100mm |
Precision accuracy(mm) | ±0.01 | ±0.01 |
Max speed(mm/s) | X-500,Y-500,Z-250 | X-500,Y-500,Z-250 |
Max. Acceleration(mm/s2) | 0.4g | 0.4g |
Mechanical structure | H-bridge | H-bridge |
Motion system | Step motor | Servo motor |
Driving type | Timing belts | Ball screw |
Dimension(mm) | B-200: 400*320*478 | S-300: 586*526*622 |
B-300: 500*420*512 | S-500: 805*740*622 |
Z-axis loading | 3kg | 6.5kg |
Work playing load | 6kg | 15KG |
Programming | Touch type teaching device | teaching device |
Memory | 256M | 144M |
I/O | 8 input/8 output | 8 input/8 output |
Max power consumption | 300W | 600W |
Input voltage | 220V/50HZ(±10%) | 220V/50HZ(±10%) |
External communication | USB | USB |
Programmable graphic | Point/Line/Circle/Arc | Point/Line/Circle/Arc |
Optional | Needle auto calibration module/visual alignment module | Needle auto calibration module/visual alignment module |
