Production Discription
Physical Properties
Fiber: Polyester
Scrim: Polyester Standard Filament Yarn
Weight: 500g/
Thickness: 1.9mm
Mechanical: Heatset and Signed One Side
Air Pemeability: 14m³//min
Typical Load@ Peak: MD: 1300, XD: 1700N/5mm
Typical Strain@ Peak: MD: 25%, XD: 45%
Typical Strain@50N: MD: 1%, XD: 2%
Liner Shrinkage@170ºC MD: 3%, XD: 3%
Mullenburst: 750+(Psi)
Chemical Properties
Acids Resistance: Fair
Alkalis: Poor
Hydrolysis Resistance: Poor
Oxidize Resistance: Good
Abrasion Resistance: Excellent
Temperature
Maximum Operature Temperature: 130ºC
Maximum Surge Temperature: 150ºC
Application:

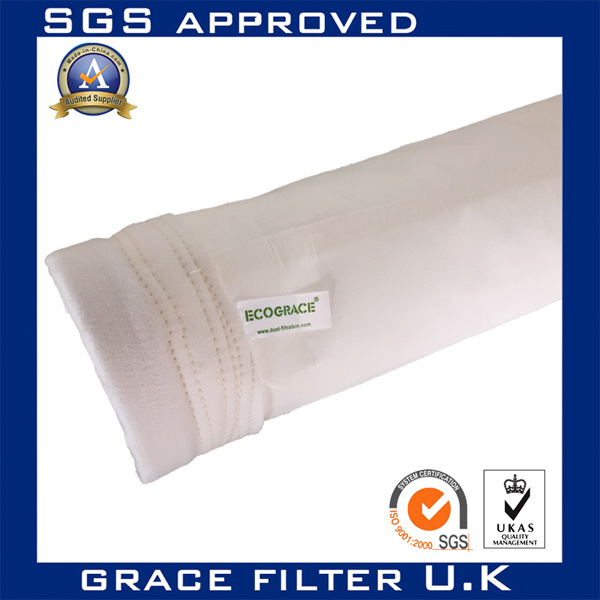

Polyester Filter Bags are widely used in industries such as iron and steel metallurgy, machinery manufacturing, cement industry, wood processing and other fields of dust collection process.
Performance:
1, Good electrical insulation.
2, Good resistance to abrasion resistant performance.
3, High strength, good elastic recovery performance.
4, Good thermal stability.
Category & Function
Dust collector filter bag | Continuous temperature | Peak Temperature | Description | Resistance to Acids | Resistance to Alkalis | Resistance to Oxidation | PH Value |
PP filter bag | 90ºC | 95ºC | PP | Excellent | excellent | restricted | 1~14 |
Acrylic filter bag | 125ºC | 140ºC | DT | good | good | good | 3~11 |
Polyester dust filter bag | 150ºC | 150ºC | PE | restricted | moderate | good | 4~12 |
PPS filter bag | 190ºC | 200ºC | PPS | Excellent | excellent | moderate | 1~14 |
Polyimide filter bag | 240ºC | 260ºC | P84 | good | moderate | good | 3~13 |
PTFE 100% filterbag | 250ºC | 280ºC | PTFE | Excellent | excellent | excellent | 1~14 |
Fiberglass Filter bag | 260ºC | 300ºC | BQ | good | good | good | 3~11 |
What can we provide for you?
1, Professional and patient reply for the consulations.
2, High qualified products.
3, Competitive price against other suppliers.
4, Professional instruction during the installation.
5, Continuous and stable after-sale service.
FAQ
1, What kind of filter bags can you provide?
Re, P84, Nomex, PPS, PTFE filter bags are the main products we producve, and PP, DT filter bags are also within our capacity.
2, About the specification, what do you get?
Re, Common specifications like 130x2.45m, 150x4m or 160x6m and we can also design a certain specification for you.
It depends on customers' requirements. You can get more specific information on our web.
3, Can you tell me what certifacation you have?
Re, Yeah, we have got ISO9001 and SGS certification. We pay much attention to our products' quality.
4, What's your payment terms?
Re, Usually in 30% TT in advance and 70% balance against B/L copy.
5, May I ask what kind of after-sale services can you provide?
Re, We offer professional instructions during the installation and oversea service for you if necessarey. For the conplain and claim comes from the problem, we shall take it seriously and give a resonable reply.
Brief Introduction of Our Company
We are a company with ten years experience in filtration industry, enjoying a good reputation in and out of the country. Filter bag and dust collector are the main products we produce and Southeast Asia, Mid East, North America, South America and Eastern Europe are where our main market locates in. We own a factory with 80000 square meter and 200 workers, in Hangzhou. There is eight production lines, which produce 50000 pcs of filter bags and 50 sets of dust collectors every month. We have got SGS and ISO9001 certification, proving we do have a professional ability. Aiming at becoming one of the best exporters in China, we have been always trying to improve our service in procution and aftersales with the increase of sales and the development of technology.
Contact Information:
Phone: +86-571-86058862
Tel: 86-18767167487
Fax: +86-571-86073956
Website: http://www.dust-filtration.com
Hangzhou Createch Machinery, with the famouse brand "Grace Filter", is one of the subsidiary of Grace Filter MFG, based in U. K, and developed in China.
Grace Filter MFG, based in U. K, developed in China, stands for high efficiency filtration solutions and expertise service for filtration industry. We get success in all dust emission control and purifying projects in Coal Fired Boiler power plant, Blast-Furnace in steel plant, Asphalt mixing site and Cement kilns, chemical industries, etc.
We make filter bags to fit most styles and types of baghouses and other dust collection systems
Filter bags come in a wide range of fabrics, coatings, finishes, sizes and configurations. Let us help you today to find the right bag for your industry application and dust collection system.
With over 20, 000 bags in stock and the ability to expedite custom orders, we deliver better lead times, cost effective solutions and responsive service to your filter bag needs.
Filter Media (fabric) options include the following and more:
Polyester
Polypropylene
Fiberglass
Aramid / Nomex
PPS / Ryton
P84 / Polyamide
PTFE (Teflon)
We are dedicating is provide the most economical, efficient and optimized filtration solutions solutions, the emission control since <15mg/ m3, , totally solve the PM2.5 control standard, dust filters working life will be 20% longer than others.
Our commitments is to enhance and optimize the performance of dust filters for particulate air pollution control. We strive constantly to improve our products and services for the benefit of our customers - providing long working life of dust filters and all about reducing emissions.
We are technology oriented enterprise, the innovative leader in dust collector filters and environmental protection industry. Our success is based on thinking ahead, strong commitment on environmental protection industry, and the accountability of all of our members. To hold this position, we invest intensively in research and development of filters.
Meeting customers expectation has always been the focus of our quality management. Constant product advancement set the standard for new solutions in filtration technology.
Our Mission:
Providing The High-Effciency Filtration Solutions.
Our Vission:
Seak To Be The First and The Best Filtration Solutions Experts, Keep the ecological condition of earth sustainable and better.
Value:
Keep good and long term relationship with our employees, customers and partnears by credit dealing, mutrual satisfaction and real respect!
Goal:
To be The Best And First Option Of Filtration Solutions In the World!
