Product Specifications
| Prod Model: |
Jaguar N250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Touchtone Lead-Free Dual Wave Soldering: |
Dual Wave Solder |
| Econimic Wave Solder: |
Stable |
| Number Of Heating Zones:1: |
Length of Heating Zones:800mm |
| Outside Dimension:2600*1200*1560: |
Weight: 700kg |
| Flux Pressure:3-5 Bar: |
Convey Angle:4-6° |
| Flux Capacity:6L: |
Speed: 300-1500mm/Min |
| PCB Width: |
50-250mm |
Product Description
Econimic Stable Wave Solder/PCB Soldering Machine

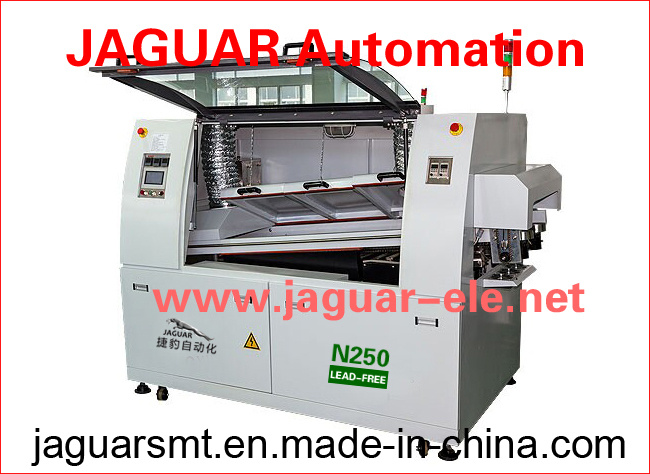

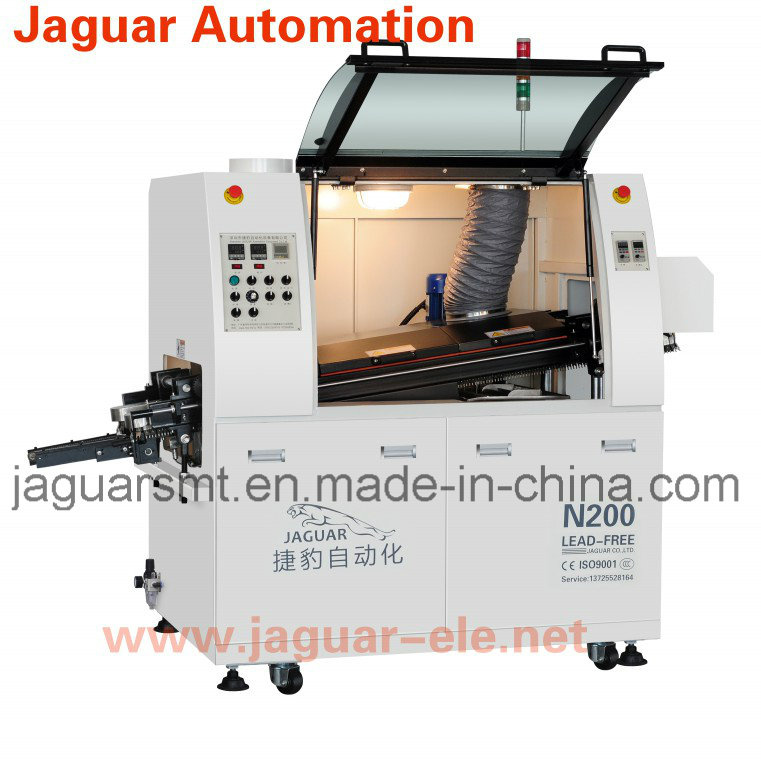

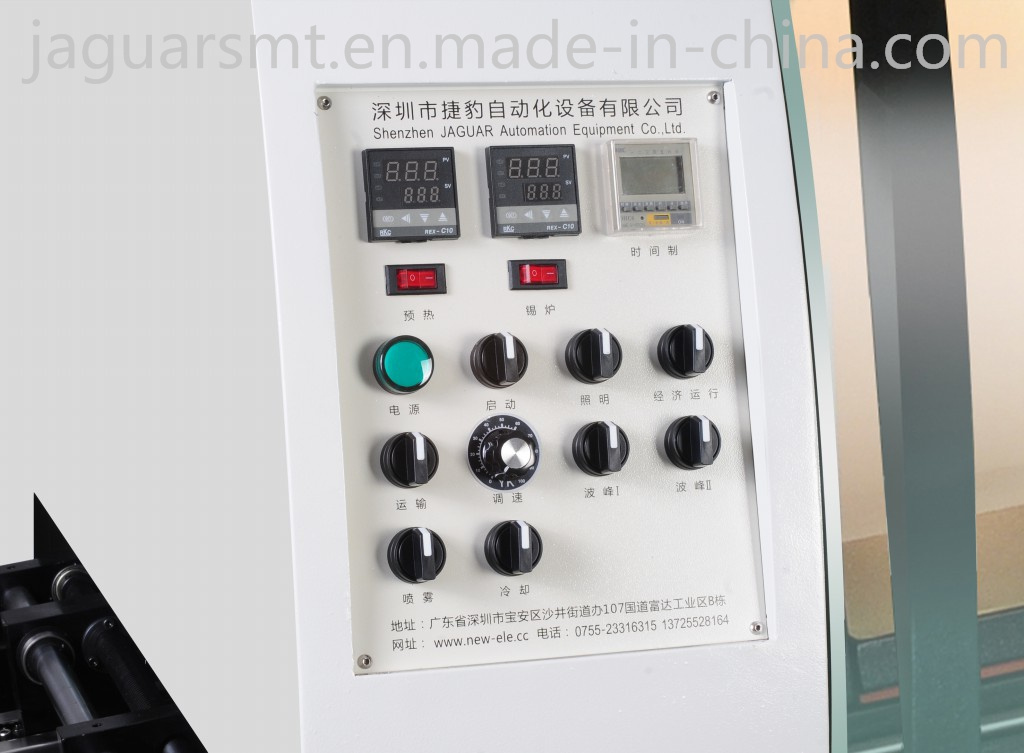

Some pictures about this machine show as follow:
Specification: | Model No | JAGUAR N250 |
| Number of heating zones | 1 |
| Length of heating zones | 800mm |
| Body size | 1800*1200*1560 |
| Outside dimension | 2600*1200*1560 |
| Weight | 700KG |
| Total/running power | 16KW/4KW |
| Air supply | 0.5MPa |
| Preheating method | IR(standard) |
| Preheating power | 220V 5KW |
| Control method | Press key +PLC |
| Range of temp. control | Room temperature---300ºC |
| Preheating time | About 10-15mins for setting 150ºC |
| Solder type | Lead-free / Sn-Pb |
| Solder pot capacity | 220KG |
| Solder pot temperature | 300ºC |
| Solder power | 380V 8KW |
| Solder temp. control method | PID&SSR |
| Wave crest drive power | 500W 220V |
| Warm-up time of solder | About 120mins for setting 250ºC |
| PCB width | 50-250mm |
| Convey speed | 300-1500mm/min |
| Convey direction | L→R (R→L optional) |
| Convey angle | 4-6° |
| Flux pressure | 3-5bar |
| Flux capacity | 6L |
Introduction:1. Automatic conveying power system, with non-level frequency conversing speed adjustment and auto synchronous board feeding functions.
2. Flux spray system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable
3. Remote infrared ceramic heating pipes are adopted in the preheating system which ensures good heat preservation effect, high heating up speed and even temperature

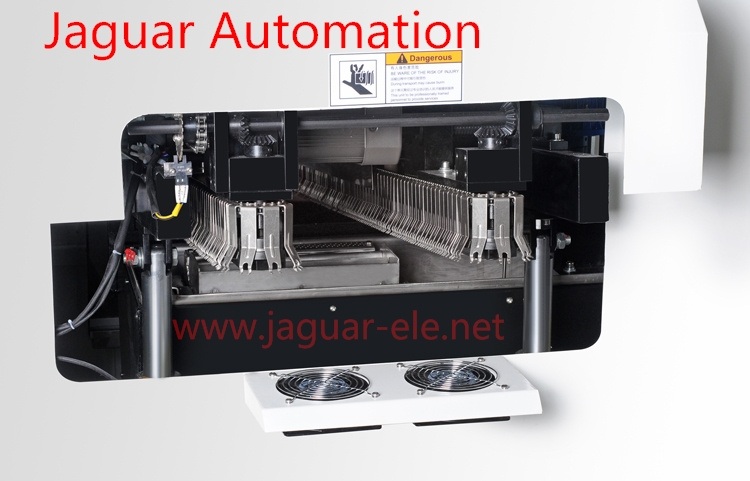

4. Special alloy transportation chain claws, non-stick tin, reinforced, and ensures the quality of welding PCB board.
5. Tin stove adopts imported high frequency conversion motor independent control, stable performance.
6. Lead-free solder furnace with independent design, environment protection and safety, easy to clean.
7. Tin heating furnace uses high-speed PID and 2-stept independent outer -heating control, warm-up quickly and eliminates the flaws of stove tin explodes
8. With time controller, can preset switch functions, tin stove machine heating picks up in 90minutes.
9. Reasonable design of environment protection, and automatic washing claw, ensure the claws clean.
10. The design is reasonable and safe with sensitive fault alarm system, to ensure the stable performance the safety of operators.
