Product Specifications
| Prod Model: |
MCD-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
2 Year |
| Sensitivity: |
6 Zones |
| Alarm Way: |
Audio Alert and LED Location Lamp Work Together |
| Display Ways: |
8 Status LED Display |
| Net Weight: |
60kg/Set |
| Dimension Size: |
223L*80W*65h Cm |
Product Description
Main Features:
Precise positioning: Average distribution of six independent detection regions to detect the targets
Four pair of infrared emission and the receiver to prevent detection blind spot.
Sound and light simultaneously alarm on the panel
Without side light at main body
Panel LED light: Show the targets locatiosns precisely
Modular design: Convenient installation and easy to rule out failure.
Self-diagnosis functions: Built-in self-diagnostic procedures, power-on self test,
Microprocessor technology: More flexible control, the control panel can programme all the parameters default to match the users' requirements
Complex circuit design, infrared devices, computer automatic identification, can effectively reduce false positiions and omissions
DSP digital signal processing filter systems: Have excellent anti-electromagnetic interference capability and strong resistance to touch, so can deal with the occasion of crowed pass through
Adjustable sensitivity: Each detection region has 100 sensitivity level may require adjustment in accordance with the appropriate detection sensitivity.
Function of several detection doors work at same time location at the same time
The minimum distance between each door must be more than 40centimeter
Continuous job performance, can not escape detection at any time.
Can automatically measure and display the interference of the surrounding environment to help to select the installation site.
Password-protected settings: Only allow the professionals to modify the parameters
Complied with current international safety standards, the use of weak magnetic field emission technology, has no harm to pacemakers wear Persons, pregnant women, floppy disks, video tapes etc.
Technical parameters
Standard: "GB 15210-1994. Through-type metal detector door general technical conditions" national standards.
Detection procedures: 100 sensitivity adjustment may be required on different occasions to meet separately.
Basic safety: Meeting the requirements of GB4793.
Personal safety: Satisfied NILECJ-0601.
Through rate: More than 60 million / per minute.
Power: 220V/110V AC, 50/60Hz.
Power: 35VA.
Working environment: -10 ° C ~ 45 ° C, ≤ 95% RH.
Overall dimension: 2220 mm (high) × 820 mm (width) × 500 mm (deep).
Channel Size: 2000 mm (high) × 700 mm (width) × 500 mm (deep),
Certification
with ISO9001: 2008 International Quality System Certification
Our Factory is below to Guangdong Government Support Enterprise
with Imports and Export Right
CE certification
with Chinese Security Inspection Report
Applicator:
Economical and practical, cheap price, especially designed for the entertainment such as KTV, Bar, Skating Rink, that need not high sensitivity security check

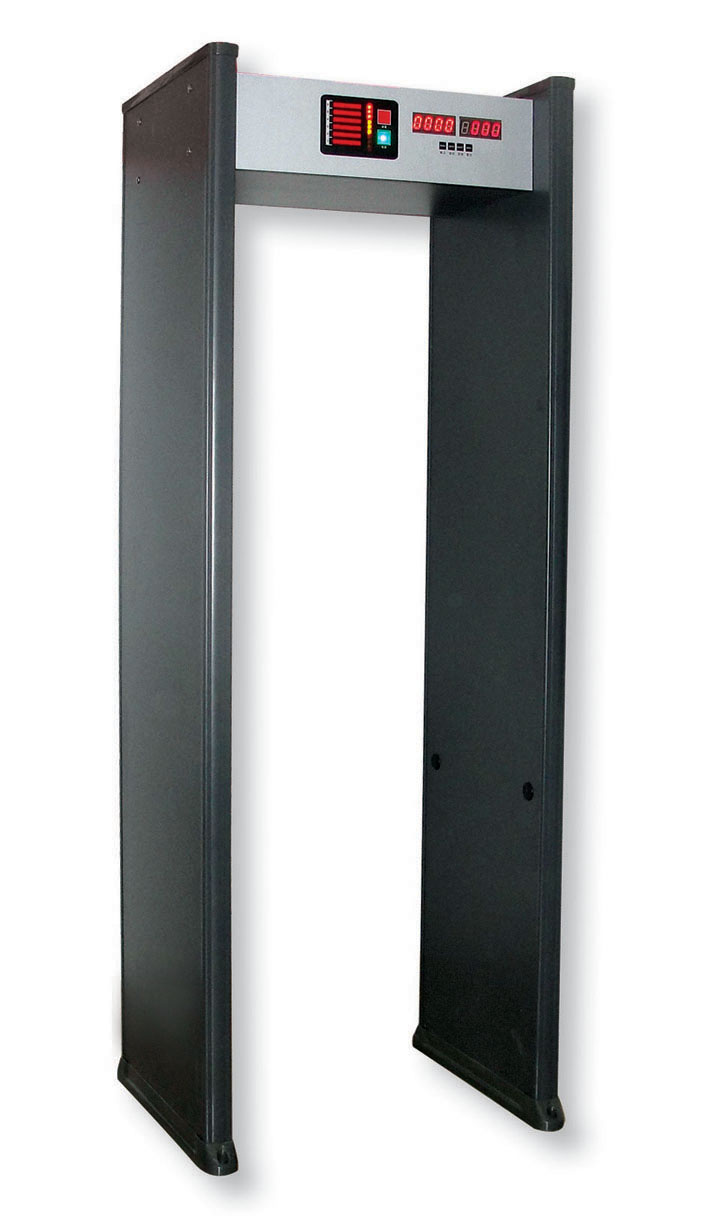

Walk Through Metal Detector MCD-100
