FUJIAN NANAN JULUN MACHINERY CO., LTD. >> Edge Cutting Machine (SQA-600)

Edge Cutting Machine (SQA-600)

Name: Edge Cutting Machine (SQA-600)
Brand: china-manufacturer-directory.com
SKU: 669022375
Availability: InStock
Rating: 5 (35 reviews)

Supplier:	FUJIAN NANAN JULUN MACHINERY CO., LTD.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Prod Model:	SQA-600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type For Fold-bending Machine:	Manual Fold-bend Machine
Type For Cutting Machine:	Stone Cutting Machine
Automation:	Manual

Product Description

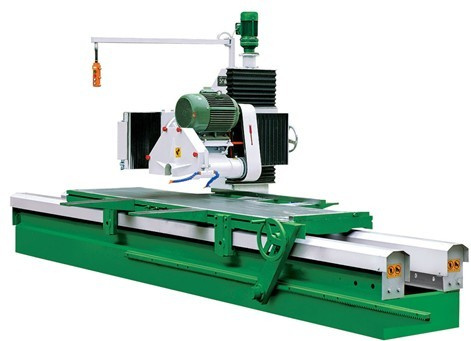

SQA-600 uses jointed structure; The main head can rotate 180 degree and electric up and down. The whole machine has compact structure, fine appearance, stable functions and high processing precision, which suit for edge cutting and milling of small slates, lath and thick tiles.

SQA-600 EDGE CUTTING MACHINE
Appellation	unit	SQA-600 A	SQA-600 B	SQA-600 C
Grinding head diameter	mm	Φ300-Φ600
Max.vertical stroke	mm	350
Worktable size	mm	2500×750	3000×750	3500×750
Max.processing size	mm	2200×1100	2700×1100	3200×1100
Water consumption	m³/h	1.8
Power of main motor	kw	15
Total power	kw	15.6
	mm	4500×2200×2250	5500×2200×2250	6000×2200×2250
Total weight	kg	2500	2800	3200

FUJIAN NANAN JULUN MACHINERY CO., LTD. is one of the most strength and the famous enterprises in Chinese stone material equipment field. It is a science and technology enterprise specialized in production of big and medium sized stone material processing equipments and located at Shijing Town, Nan'an City with easy access, which is well known as China's Hometown of stone material. The company has modern standardization factory buildings and modernized scientific research buildings with first-class production processing equipments.
