EDR21 Single-Phase Electricity Meter for DIN Rail
Product Specifications
| Prod Model: |
EDR21 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Energy Meter |
| Usage: |
Maximum Demand Meter |
Product Description
EDR21
Single-phase Electricity Meter for DIN Rail
Static single-phase energy meter for 230V, 5(30) A &10(60)A .50-60 Hz
l Version according to IEC 1036 / EN 61036 CE class 1
l DIN rail fixing (DIN-EN 60715)
l Interface: SO-optical coupler (as per DIN 43864)
l Display: 5 digits for kWh and 1 decimal
l Power consumption / Burden approx. 0,8 W &7,5 VA
l Voltage working limit range: 195 V to 253 V
l Current service / limit range: 0.02 A to 30 A & 0.04A to 60A
l Starting current with cos φ = 1 typical 15 mA
l Service temperature limits: -20ºC to +50ºC
l Maximum relative air humidity:- Average value of year: ≤75 %
-Short time value: ≤95 %

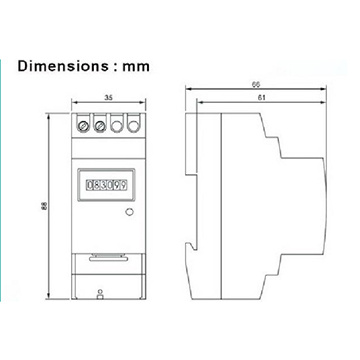

Dimensions: mm
NANJING CAIDEAL PRODUCTS Co., Ltd. is a professional supplier of all kinds of the lighting products, electrical meters, and mechanical-electrical equipments etc.
Our company could supply especailly all kind of vapour discharge electricity lamps, such as High Pressure Mercury lamps, High Pressure Sodium lamps and Metal Halide lamps which are with American type. Europe type etc. 100% of these products have been exported to USA, Europe market and South-east Asia, South American, Middle-east etc. Meanwhile, it also supplys the Halogen lamps£ ¬ fluorescent lamps, energy saving lamps, incandescent lamps, lamp components etc, and Floodlight fixtures, Projection Light Fixtures, Street Light fixture, Halogen Light Fixtures, Ballast, Igniters, Capacitors, photocontrols etc.
We also supply all kinds of the KWH meters, Insulators, Ground Rod etc, and these products have became our most popular producdts recently.
Recently years, our supplied products relying on stable quality and strict management stride rapidly into world market, well-received by clients and consumers, we have being a rising new star of Chinese new-style electrical light source line and other products.
We owns strong technical force, perfect testing measures and advanced equipment with our purpose of "QUALITY FIRST, CREDIT FIRST, SERVICE FIRST". We will continue to supply all kind of new style electrical light source with best quality and competitive price to our old and new customers
