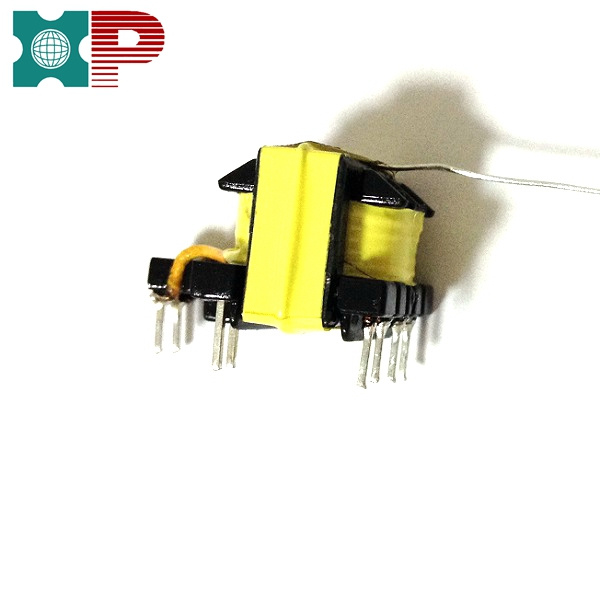

Ee16 High Frency Transformer with Customized Bobbin
Product Specifications
| Prod Model: |
XP-EE16SL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bobbin: |
Customized |
| Application: |
Audio |
| Phase: |
Single |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Coil: |
Ferrite Core |
| Brand: |
XP Power |
Product Description
![]()
Description:- Low leakage and high efficiency
- High magnetic flux and low loss magnetic materials
- Low temperature rising
- Low capacitance distribution
- Highest reliability of high voltage
- Fine tuning inductance
- Nice magnetic get high function frequency and counteract for obstruction
- High inductance
- Customized specifications are accepted
- Applications:
- VCRS, copy machine, audio equipment and game machine
- TV sets and microcomputer equipment
- Communications control equipment
- Printers and terminals
- With nice magnetic shield form itself and slight interference
- LED driver
- Power supplier

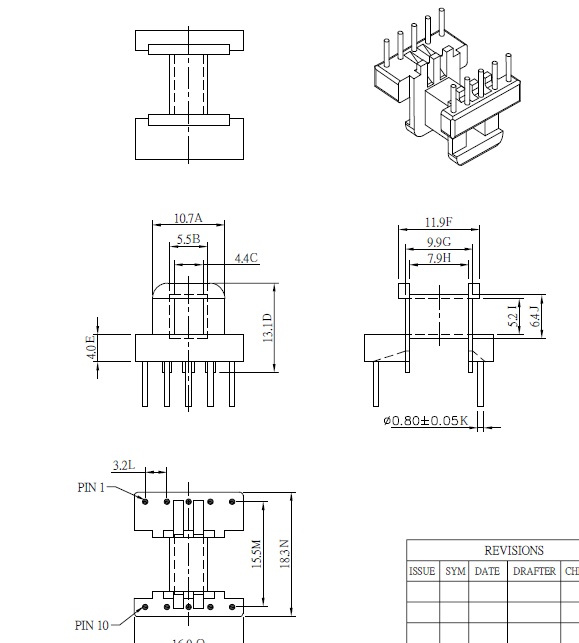

- Specifications:
![]()
| Type | Shape Structure | Dimension | Power range |
| A | B | C | D | E | F |
| EE10 | Horizontal | 12.0Max | 10.8±0.5 | 12.4±0.5 | 2.5±0.2 | 2.5±0.3 | 10.5±0.5 | 4W Max |
| EE13 | 15.0Max | 13.5±0.5 | 13.85±0.5 | 2.5±0.2 | 2.5±0.3 | 10.2±0.5 | 6W Max |
| EE16 | 17.5Max | 15.0±0.5 | 13.6±0.5 | 3.5±0.2 | 3.0±0.3 | 11.0±0.5 | 10W Max |
| EE19 | 22.0Max | 112.4±0.5 | 17.4±0.5 | 4.0±0.2 | 3.0±0.3 | 12.5±0.5 | 15W Max |
| EE22 | 24.0Max | 13.0±0.5 | 15.7±0.5 | 4.0±0.2 | 4.8±0.3 | 13.0±0.5 | 20W Max |
| EE25 | 26.5Max | 17.3±0.5 | 19.4±0.5 | 4.0±0.2 | 5.0±0.3 | 14.0±0.5 | 25W Max |
| EE30 | 32.0Max | 22.0±0.5 | 32.0Max | 4.0±0.2 | 5.0±0.3 | 25.0±0.5 | 145W Max |
| EE40 | 34.0Max | 28.6±0.5 | 35.0Max | 4.0±0.2 | 5.0±0.3 | 25.8±0.5 | 350W Max |
| EE42 | 42.0Max | 39.1±0.5 | 45.0Max | 4.0±0.2 | 5.0±0.3 | 37.8±0.5 | 450W Max |
| EE55 | 58.0Max | 56.0±0.5 | 58.0Max | 4.0±0.2 | 5.0±0.3 | 40.0±0.5 | 500W Max |
| Type | Shape Structure | Dimension | Power range |
| A | B | C | D | E | F |
| EE8.3 | Vertical | 10.0Max | 9.5Max | 8.0±0.5 | 2.5±0.2 | 3.3±0.3 | 5.8±0.5 | 3W Max |
| EE10 | 12.0Max | 13.0Max | 10.4±0.5 | 2.5±0.2 | 2.5±0.3 | 5.8±0.5 | 4W Max |
| EE13 | 15.0Max | 14.0Max | 12.2±0.5 | 2.5±0.2 | 2.5±0.3 | 5.8±0.5 | 6W Max |
| EE16 | 17.5Max | 15.0Max | 14.4±0.5 | 3.5±0.2 | 3.8±0.3 | 5.8±0.5 | 10W Max |
| EE19 | 22.0Max | 19.0Max | 15.9±0.5 | 4.0±0.2 | 4.0±0.3 | 5.8±0.5 | 15W Max |
| EE22 | 24.0Max | 20.0Max | 16.5±0.5 | 4.0±0.2 | 4.0±0.3 | 5.8±0.5 | 20W Max |
| EE25 | 26.5Max | 22.0Max | 17.2±0.5 | 4.0±0.2 | 5.0±0.3 | 5.8±0.5 | 25W Max |
| EE28 | 30.0Max | 22.0Max | 21.8±0.5 | 4.0±0.2 | 5.0±0.3 | 5.8±0.5 | 50W Max |
| EE30 | 32.0Max | 30.0Max | 28.0±0.5 | 4.0±0.2 | 5.0±0.3 | 5.8±0.5 | 145W Max |
| EE35 | 37.0Max | 30.0Max | 25.6±0.5 | 4.0±0.2 | 5.0±0.3 | 5.8±0.5 | 350W Max |
| EE40 | 42.0Max | 33.0Max | 27.9±0.5 | 4.0±0.2 | 5.0±0.3 | 5.8±0.5 | 450W Max |
| EE42 | 46.5Max | 43.0Max | 37.4±0.5 | 4.0±0.2 | 5.0±0.3 | 5.8±0.5 | 500W Max |
| EE55 | 57.0Max | 58.0Max | 42.0±0.5 | 4.0±0.2 | 5.0±0.3 | 5.8±0.5 | 650W Max |
XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world' S leading developers and manufacturers of power transformers, switching power supplies, power inductors, choke coils, high frequency transformers and filters solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in New energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' Development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 10 million and six hundred employees and three factories located inNingbo, HefeiandXi' An. The company has an annual production capacity of six million PCS. Our main market is Europe, North & South America, Middle East and Asia.
The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' Needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality.
XP Power supplies its products to 30 countries across the globe. Every year, over 3 million coils are wound, over 2 million high frequency transformers are Manufactured, and thousands of modules are mounted.
The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' Needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.
