Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

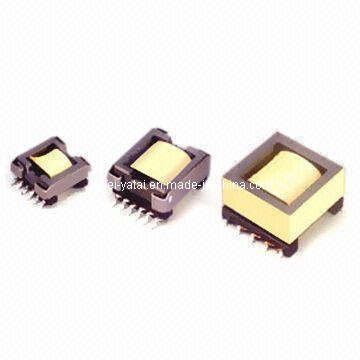

Product Description
Dimensions in mm (inches): A, B, C ± 0.5, D, E, FIG
EFD-12): Terminal pins=8, A=6, B=11, C=20 ± 0.5, D=3, E=13.5, FIG=2
EFD-15): Terminal pins=10, A=7.3, B=18.2, C=21.35 ± 0.5, D=2.5, E=15, FIG=1
EFD-15): Terminal pins=10, A=7.5, B=19.3, C=22.6 ± 0.5, D=3, E=16.7, FIG=2
EFD-20): Terminal pins=10, A=9.4, B=25.3, C=27.7 ± 0.5, D=3.75, E=21.7, FIG=2
EFD-20): Terminal pins=12, A=9.7, B=24, C=26.8 ± 0.5, D=3, E=20, FIG=1
EFD-25): Terminal pins=10, A=13.4, B=29.7, C=35.4 ± 0.5, D=5, E=25, FIG=2
EFD-25 ): Terminal pins=10, A=12.6, B=29.7, C=31.5 ± 0.5, D=5, E=25, FIG=1
EFD-30): Terminal pins=12, A=12.6, B=31.6, C=35.3 ± 0.5, D=5, E=30, FIG=2
Approvals: UL/CUL/TUV/CE
Applications: Transformers, coupling, switching, modems, drives, chokes, telephones, NET, telecommunication, inductors, filters
Customized designs are accepted
We are professional manufactuer of High frequency transformer, low frequency transformer, Power transformer, Toroidal transformer, Encapsulated Transformer, and common mode choke. we could make and design according to customer's requirement. All of our products are approved By UL, CE And VDE. We warmly welcome all over the world customer for business cooperation!
