Product Specifications
| Prod Model: |
HH829 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Plcx, Plcc, Bicx, Bixx, Cxcc, Doublet |
| Design Wavelength: |
Customer Design |
| Dimension Tolerance: |
+0/-0.05mm |
| Thickness Tolerance: |
+/-0.1mm |
| Surface Quality: |
40-20 or Better |
| Surface Figure: |
Sph Surface:Lambda/4 or Better @632.8nm |
| Center Error: |
Etv Better Than 0.01mm |
| Clear Aperture: |
90% of Diameter |
| Bevel: |
Protective Bevel |
| Coating: |
Bbar or Customer Design |
| Material: |
Glass |
| Shape: |
Single-lens |
| Type: |
Concave Lens |
Product Description

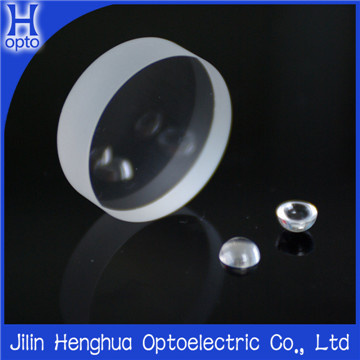

Plano-convex is close to best form for a focusing lens.
Focusing or optical imaging
Focal Length: F = R/(n-1)
N: Refractive index
R: Radius curvature
Plano-convex lenses are useful for a wide range of applications. These lenses are manufactured from BK7A grade A (or customer design) optical glass and are supplied uncoated. Anti-reflection coatings are available as listed earlier in this section. To order an anti-reflection coated lens simply append the wavelength in nanometers to the product number. These lenses may also be used as mirror blanks if a convex surface mirror is required. When used to focus a collimated beam, the light should be incident on the curved surface of the lens. These plano-convex lenses may be combined with other lenses to form compex imaging systems.
Parameter:
Item PLCX, PLCC, BICX, BIXX, CXCC, DOUBLET
Material BK7, Fused silica, K9, Ge, Si, etc.
Design Wavelength Customer design
Dimension Tolerance +0/-0.05mm
Thickness Tolerance +/-0.1mm
Surface Quality 40-20 or better
Surface Figure Sph surface: Lambda/4 or better @632.8nm
Center Error ETV better than 0.01mm
Clear Aperture 90% of diameter
Bevel Protective bevel
Coating BBAR or customer design
