Product Specifications
| Markets: |
North America,Southeast Asia,Mid East |
| Capacity: |
150-200PCS/Min 20-30kg/Hour |
| After Core Filling: |
40-60kg/Hour |
| Total Powe: |
6kw |
| Weight: |
3.5tons |
| Application: |
Biscuit |
Product Description

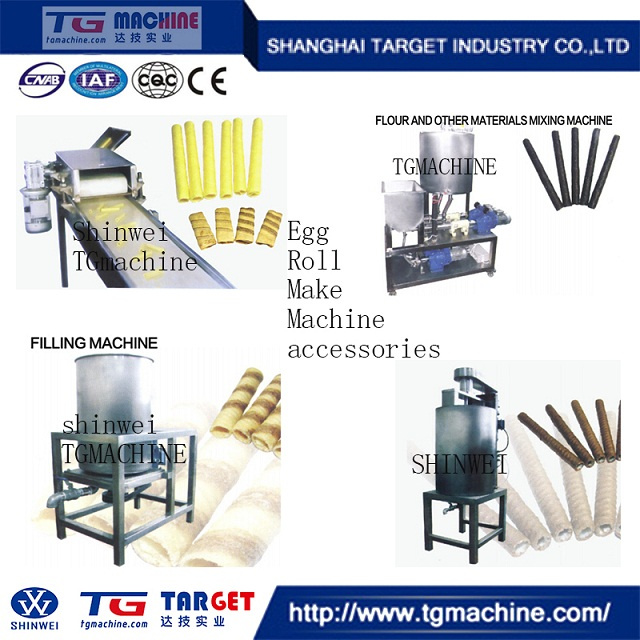

YX 2000 TYPE SUPER-THIN DOUBLE -COLORD EGG ROLL MACHINE
Description:
The company has passed the ISO9001: 2000 certification and awarded many patent rights, and get CE certification. This machine we adpot the PLC programed control with Touchscreen, with simply operation, it can control the specific weight of the stuff very accurately.
Different styles and collors egg rolls produced by automatic cream filling egg roll wafer machine
Using the Egg Roll Processing Machine, you can make many different wafer sticks and egg rolls in lots of size and shapes. This model HB wafer roll machine is a domestic new-generation and fully-automatic production line, researched and developed with Japanese top technology, to produce hollow or filled egg roll.
The machine includes the beating system, pulp sending system, material filling system, color mixing system, layer system, transmitting system, cooling system etc; It has compact structure and stable performance, so it is the ideal choice for you to invest.
Dough strips with a high sugar content (40-70%) are poured onto a rotating heated baking drum or a baking ring. After baking, stripping knives release the flexible dough bands, which are then wound around mandrels to form wafer sticks. Cut to the required length and fed to a collecting conveyor. The thickness and the width of the strip of batter can be adjusted.
The sticks are cut to the desired length and move via a chute or a stick elevator to a collecting belt.
Additional devices such as pressing belts, pillow shape cutter, cream filling units or the double pouring device allow numerous value-added variations of the simple standard wafer stick.
Stage of Production:
Mixing feeding baking stuffing gluing rolling cutting freezing(frying) packing
Specification
Two heads or three heads machine can be supplied
Baked by gas, automatic ignition, electric baking system as option
Gas consumption: 4kg/h LPG or 10m3/h for Natural gas, pressure need 0.3mpa
Total Electric power: 10kw
Capacity: Hollow products 25~30kg/h, filled products 50~60kg/h
The thickness of sheet is adjustable
The length, diameter of stick is also changeable.
Dimensions:
Weight: 5 tons
Wooden packing
1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing: A. Inside the machine put desiccant b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: According to different products for reinforcement
After-sale service for abroad customers.
1. Free training of macine installion, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installion and adjustment
