Product Specifications
| Markets: |
North America,South America,Eastern Europe,Oceania,Eastern Asia,Western Europe |
| Type: |
Transformer |
Product Description

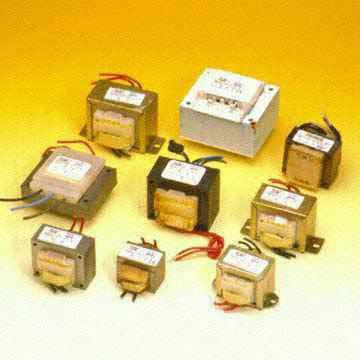

Output power: 10VA, 20VA, 36VA, 35/50VA, 60VA, 105VA, 150VA
Safety standards applicable:
UL standards: UL506, UL1411, UL1585
CSA standards: C22.2 No. 66, 827B
VDE standards: 0550, 0551
DIN standard: EN60742
Insulation systems recognized: Class A 105C, Class B 130C, Class H 180C system
Mounting frame: Channel frame with optional end bell, open frame, fully encapsulated
Inbuilt protector (optional)
Thermal cutoffs (temperature fuse): UL, CSA, VDE approvals available; 98, 100, 105, 110, 125, 130, 145, 187C
Resettable thermal stat: UL, CSA, VDE approvals available; 65C thru 130C
Current fuse: 0.1A thru 5A; UL, CSA approvals
Slow-blow fuse: 0.5A thru 5A; UL, CSA approvals
Varistor (transient surge protector): UL, CSA, VDE approvals available
Tianchang Fuan Electronic Co., Ltd. Provides consulting and services to clients globally _ as partners to our core, bobbin, transformer, inductor business which include manufacturing and distribution of magnetic products used in electrical/electronics industry.
Global Presence
Our customer are all over the world. Most of them are located in USA, UK, Germany, Russia, China, Japan, Malaysia and South Korea. We have grown from strength to strength since it's inception and we are expanding our operations. We serve the growing global market and have plans to develop further. More...
Manufacturers/Suppliers
We progress along-with the top manufacturers in-PAR with the industry which include - Micrometals, ABC, PULSE, others focusing on transformers, transformer-parts, electrical/electronics components, OEM manufacturer for world-wide.
Services
We provide on-demand services which include procurement, stockholding and supply of Ferrite core, Iron Powder Cores, Amorphous core, Bobbin, Inductor, Transformer including Online telephone support and support services. Our technical staff are well trained in handling installation, commissioning and servicing of winding machines. More...
Quality
We are certified of RoHS, UL, CE environmental protection standard, ISO9001, UKAS and son on. Our Quality objective is to achieve zero customer written complaint per month. More...
