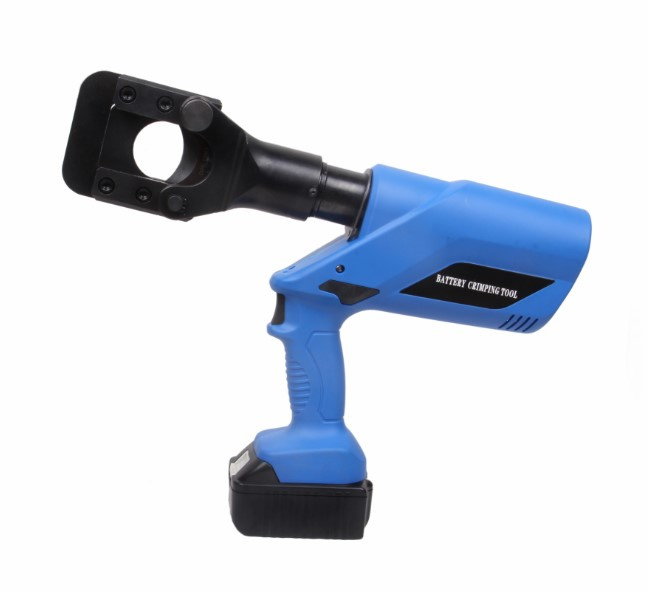

Product Specifications
| Prod Model: |
HL-45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Western Europe |
| Cutting Range: |
Dia. 45mm |
| Battery Capacity: |
3.0ah Lithium Battery |
| Crimping Force: |
60kn |
Product Description
HL-300 Battery Operated Crimping Tools is used for Crimping 10-300mm2 lugs
1. The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.
2. A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.
3. Micro computer control system-automatically detect the pressure when it is crimping, with double safety protect.
4. The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.
5. One key control-press the trigger to start working, half loosing the trigger means stopping force pressure, loosing fully means piston return to the original position.
6. The crimping head can be smoothly turned by 360° Around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.
7. If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.
8. A white LED illuminates the working space after activating the trigger. It automatically switches off 10 sec. After releasing the trigger.
9. Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of non operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to Ni-MH batteries.
10. A Temperature sensor makes the tool stop working automatically when the temperature over 60° C under long time working, the fault signal sounds, it means the tool can't continue work until the temperature reduced to the normal.
|
cutting range: |
45mm |
|
cutting force: |
60KN |
|
stroke: |
60mm |
|
cutting/charge: |
130times |
|
battery voltage: |
18v |
|
battery capacity: |
3.0Ah lithium |
|
charge time: |
2 hours |
|
carton size: |
540x430x147mm |
|
package: |
aluminum alloy case |
|
accessories: |
|
|
battery: |
2pcs |
|
charger: |
1pcs |
|
sealing ring of cylinder: |
1 set |
|
sealing ring of safety value: |
1 set |
|
|
|
|
|
|
|
|
|
