Product Specifications
| Prod Model: |
GPO-3 fabricated parts |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Switch Baseplate |
| Type: |
Solid |
| Chemistry: |
Organic Insulation |
| Material: |
Resin |
| Thermal Rating: |
F 155 |
| Maximum Voltage: |
20KV~100KV |
Product Description
No. 1: Definition of product:
HC-GPO3/HCT-GPO3 Sheet (Red, White, Brown) Series is rigid laminated sheet made of heat pressing which composed of e-class glassmat reinforced unsaturated polyester & inorganic filler binder.
No. 2: Product feature:
Excellent Arc Resistance(Arc Resistance ≥ 180 S)
Excellent Track Resistance(CTI ≥ 600 V)
Excellent Heat Resistance(Class F )
Excellent Thermal Impact (Temp. Index: -273° C to +155° C)
Excellent Fire Retardant(UL 94 V-0 Grade)
Excellent Mechanical Strength & Automatic Machining
Low Smoke, Halogen Free Products (NF F16-101/102 )
RoHS, Reach Certified products
Xiamen Hongcheng Insulating Materials Co., Ltd., is responsible for the overall management & marketing, the Suzhou factory is the insulating materials producing base and parts processing center, covers an area of 15000 Sq. M, with four production lines, Water Jet Cutting, CNC machine, CNC Engraving equipment and other advanced processing equipments. Our company believes the principle of "Leading technology, Quality first, Excellent service, with outstanding quality, Favorable prices, quality service to win the trust of our customers".

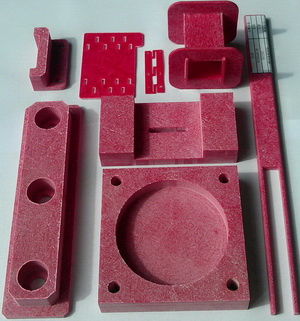

Our factory produces and supplies various electric insulation materials for component usage of swith, transformer, transducer, motor, high-voltage electrical substation, car so on as below:
1. GPO-3 polyester glassfibre cloth laminate sheet, SMC laminate sheet.
2. Epoxy glassfiber cloth laminate sheet(FR-4, FR-5, G10, G11), 3240 laminate sheet
3. PCB Phenolic resin paper and cotton laminate sheet
4. PC board, nomex paper, many insulation papers/CEM-1, fish paper
5. SMC insulator
6. Copper clad laminate sheet for electronic field.
We can offer laminate sheet, film, insulation sheet also can be made in tube, bar, pipe, tape, shapes of any sizes also can produce cut-to-sized & shapes according to your drawing requirements, plus all our electric insulation materials have past the UL standard and RoHS report with good quality and competitive price.
