Product Specifications
| Prod Model: |
TSC1-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current: |
200-1600A |
| Theory: |
Voltage Relay |
| Size: |
Miniature |
| Usage: |
Household Appliances Relay, Communication Relay |
Product Description
Application

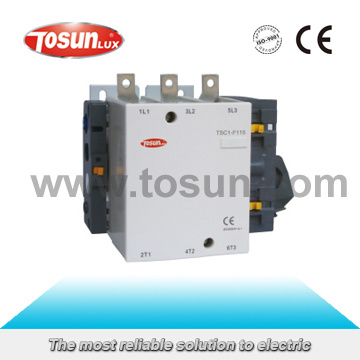

TSC1-F series AC Contactor is applicable to the circuits up to the rated voltage 1000V AC 50Hz or 60Hz, rated current from 115A to 800A, for long distance breaking cuicuit and frequently starting or controlling the AC motor. It can also be used for the control of distribution circuits of rated current from 200A to 1600A.
Specification
| Model | TSC1-F115 | TSC1-F150 | TSC1-F185 | TSC1-F225 | TSC1-F265 | TSC1-F330 |
| Rated operation current(A) | AC-3 | 115 | 150 | 185 | 225 | 265 | 330 |
| AC- | 200 | 250 | 275 | 315 | 350 | 400 |
| Standard power ratings of 3-phase motors AC-3(KW) | 220/230V | 30 | 40 | 55 | 63 | 75 | 100 |
| 380/400V | 55 | 75 | 90 | 110 | 132 | 160 |
| 415V | 59 | 80 | 100 | 110 | 140 | 180 |
| 440V | 59 | 80 | 100 | 110 | 140 | 200 |
| 500V | 75 | 90 | 110 | 129 | 160 | 200 |
| 660/690V | 80 | 100 | 110 | 129 | 160 | 200 |
| 1000V | 65 | 65 | 100 | 100 | 147 | 160 |
| Model | TSC1-F400 | TSC1-F500 | TSC1-F630 | TSC1-F780 | TSC1-F800 |
| Rated operation current(A) | AC-3 | 400 | 800 | 630 | 780 | 800 |
| AC- | 500 | 700 | 1000 | 1600 | 1000 |
| Standard power ratings of 3-phase motors AC-3(KW) | 220/230V | 110 | 147 | 200 | 220 | 220 |
| 380/400V | 200 | 250 | 335 | 400 | 400 |
| 415V | 200 | 280 | 375 | 425 | 420 |
| 440V | 250 | 295 | 400 | 425 | 420 |
| 500V | 257 | 355 | 400 | 450 | 430 |
| 660/690V | 280 | 335 | 450 | 475 | 470 |
| 1000V | 185 | 335 | 450 | 450 | 450 |
