Product Specifications
| Prod Model: |
HD2106B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Portable |
| Display Mode: |
Digital |
| Theory: |
Machine-electric Type |
| Power Source: |
AC and DC |
| Accuracy: |
±0.5%+3 |
Product Description

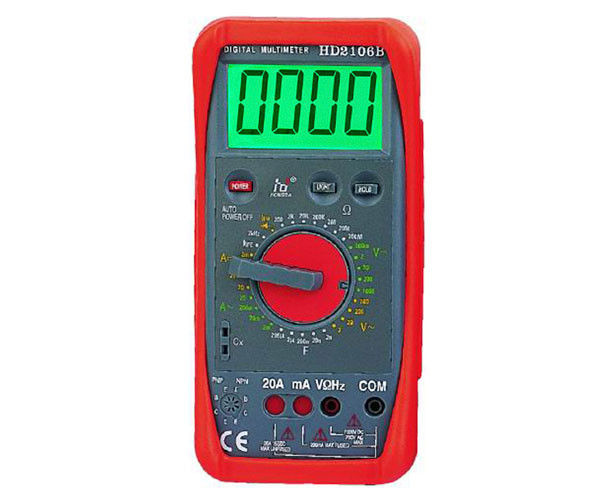

Electrical DMM Digital Multimeter CE ROHS precision for physical
Quik Details :
Place of Origin : Shenzhen ,China
Model: HD2106B
Brand Name : HD , OEM
Measuring Current Range : 200mA-20A
Measuring Voltage Range : 200mV-700V
Measuring Resistance Range : 200Ω-20MΩ
Measuring Capacitance Range : 2 nF-200uF
Frequency : 2KHz-20KHz
Temperature : -40C-1000C
Weight : 780g
MOQ : 300PCS
Payment : T / T , Paypal , West Union
Applications :
Apply for testing electronic Component and others ,family and industry
Specification :
Basic function |
Measurement range |
Basic accuracy |
DC voltage |
200mV/2V/20V/200V/1000V |
±(0.5%+3) |
AC voltage |
200mV/2V/20V/200V/700V |
±(0.8%+3) |
DC current |
200µA/20mA/200mA/20A |
±(1.2%+2) |
AC current |
200µA/20mA/200mA/20A |
±(1.8%+3) |
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
±(1.0%+5) |
Capacitance |
2 nF /20 nF/200 nF/2Uf/200uF |
±(4.0%+5) |
Frequency |
2KHz-20KHz ±(2.0%+5) |
Temperature |
-40C-1000C ±(1.5%+15) |
hFE test |
V |
Diode test |
V |
Continuity buzzer |
V |
Low power display |
V |
Auto power off |
V |
Data hold |
V |
Backlight |
V |
Maximum display |
1999 |
Description :
HD-2100/B Series digital multimeter is provided with the following mechanical protection function device:
Position of
Function/Range Switch |
Test lead blocked by
the blocking board |
VWHz | mA | 20A |
| AC/DC Voltage | | | |
| AC/DC Current Except 20A | | | |
| AC/DC Current 20A | | | |
| Resistance | | | |
| Capacitance F | | | |
| Inductance H | | | |
| | | | |
| Triode hFE parameter | | | |
| Frequency Hz | | | |
| Ratio of Spatial Occupancy Duty | | | |
| Temperature ºC | | | |
The mark ""in the above table means the socket is warded off. The black test lead won't be obstructed from inserting into "COM" Jack. If you find the rotary switch doesn't move, that's because you forget to pull out the test lead. Don't force the switch to move. You must pull out the test lead before turning the rotary switch, otherwise the meter's mechanical protection system may be damaged.
General Characteristic :
Power supply : 9V(6F 22)
Color : Ron-Gray + Red
Weight : 780g(including batteries)
Dimension : 205*100*60mm
Accessories : Test lead ,manual ,battery
Standard inner package : Color box
Standard package quality : 30 sets
Outer packing size :47*37*48cm
Standard packing gross weight :24.5kg
