Electrical Foil Winding Machine with Double Layers

Name: Electrical Foil Winding Machine with Double Layers
Brand: China-Manufacturer-Directory.com
SKU: 737941345
Availability: InStock
Rating: 4.4 (101 reviews)

Supplier:	Baoying Hande Electric Co., Ltd.
Price:	US $ 70000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	BRJ1400-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Foil Max Width:	200mm
Max Winding Speed:	68turns/Min
Max Winding Width:	1400mm

Product Description

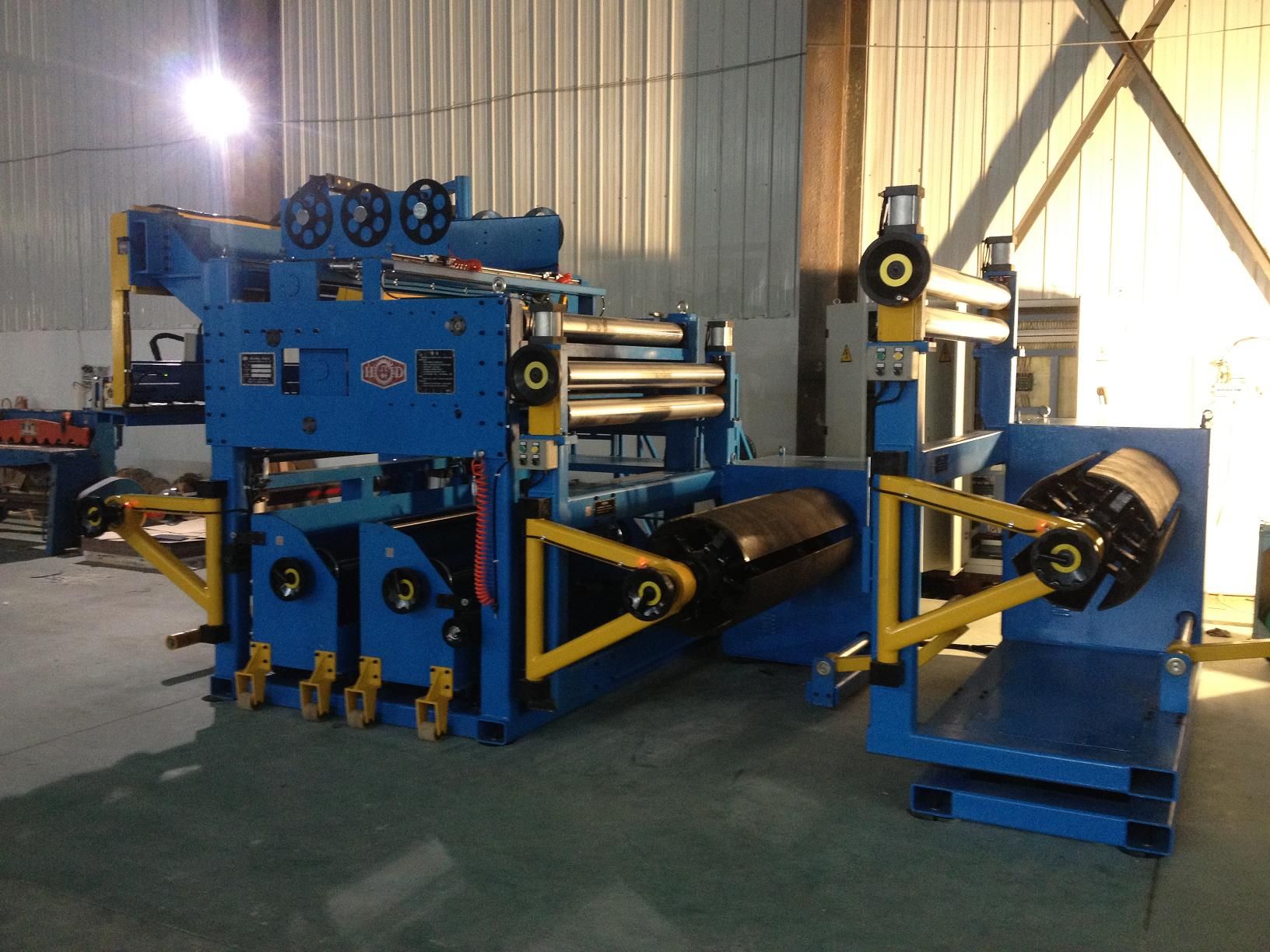

BRJ1400 is the exclusive winding machine used for foil winding of transformers below 1KVA. It can wind the foil in section on the winding former according to the technological requirements. The machine is equipped with a welding system, and all the parameters are preset on the HMI, and it can stop automatically when the turns get to the preset value.

Specifications of the machine

Machine application: It is used to wind the 10Kv foil coil of resin insulation dry tansformer.
Structure of machine: Vertical; Take up expasion shaft;
Foil max width: 200mm;
Max winding speed: 68turns/min;
Max winding width: 1400mm;
Foil unwinding: 1
Insulation film unwinding: 2
Winding sideway type: CNC servo;
Lead wire welding type: 400A AC, DC auto welding;
Accuracy: 0.001;
Deviaration correct type: Unilateral check, control the flatness automatically
Operation interface: HMI, Siemens touch screen;
Main components: Sinemens PLC; Electric elements-Schneider

Name	Foil Type Winding Machine
Model	BRJ1400
Machine application	used to wind the 400v foil coil of electricity distribution tansformer
Structure of machine	Horizontal
Foil max width	1400mm
Max winding speed	1430mm
Decoiler	2
Insulation film unwinding	2
Winding shaft size	90X90mm
Winding sideway type	CNC servo
Lead wire welding type	500A AC, DC auto welding
Accuracy	0.01
Deviaration correct type	unilateral check, control the flatness automatically
Operation interface	HMI, Siemens touch screen
Main components	Sinemens PLC; electric elements-Schneider

Baoying Hande Electric Co., Ltd. Was incorporated in 2006, has the registered trademark protected by law. The R&D team is composed of some senior technical staff; It can independently research, development and produce the intelligent devices with international advanced level. Hande Electric has itself import and export rights, so it can directly provide the single machine or production-line services to domestic and foreign wire &cable, transformer and motor manufacturing companies.
