Xuchang Chengrui Insulation Material Co., Ltd. >> Electrical Insulating Material 6631 Dmdm

Electrical Insulating Material 6631 Dmdm

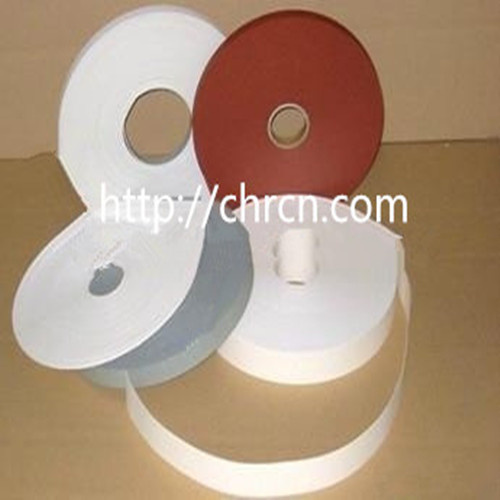

Name: Electrical Insulating Material 6631 Dmdm
Brand: china-manufacturer-directory.com
SKU: 703239882
Availability: InStock
Rating: 4.3 (92 reviews)

Supplier:	Xuchang Chengrui Insulation Material Co., Ltd.
Price:	US $ 2.7kg
Min Order:	800kg
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	6631 dmdm
Markets:	Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Thickness:	0.10mm-0.40mm
Width:	1000mm
Heat-Resistance:	B Class 130
Storage Life:	1 Year
Package:	Carton and Pallet
Application:	Motor
Type:	Solid
Chemistry:	Inorganic Insulation
Thermal Rating:	B 130
Maximum Voltage:	<10KV
Material:	Mylar
Brand:	Chr

Product Description

Description
Electrical grade insulating cable paper is manufactured from 100% high-quality sulfate insulating wood pulp.

Features
?This paper is highly refined and cleaned to ensure uniform thickness and free from formation Pinholes, un-dispersed fiber bundles and tiny defects
?It is a low-voltage grade insulating paper well suited for making electromagnetic wires, power cables of
transformers below 35kV and other electrical insulating equipments below 35kV
?This paper has stable electrical and chemical properties, and high physical strength to meet the exacting
needs of our valued customers

Applications
Used widely as electrical insulation wrap on aluminium and copper wires by conductor manufacturers,
electrical insulation between layers of wound coils in electrical motors, in capacitors, transformers & such
other electrical equipment

Available
Our ordinary insulating papers are available in nominal thicknesses from 50 to 250 microns,
and in continuous rolls up to the widths of 625, 960mm and 1200mm (the roll diameter being 680 to 730mm),
or other customized diameters and widths on request.

Technical Data

Specified Properties	Units	Values Specified
			2mil	2.5mil	3mil	4mil	5 mil
Thickness Tolerance	Micron		50+/-10%	64+/-10%	75+/-10%	100+/-10%	125+/-10%
Substance (Grammage)	g / m^2		40+/-10%	51+/-5%	61+/-5%	76+/-5%	100+/-5%
Apparent Density	g / m^3	0.8 +/- 0.05
Moisture Content	%	8 Max
Moisture content	%	5 - 9
Water Absorption MD CD	Mm	10 Min.
Air Permeability	m/Pa.Sec	0.5 to 1.0
Tensile Index MD CD	Nm/g	78 Min 28 Min
Elongation MD CD	%	2.0 Min 4.0 Min
Tear Index MD CD	mN m^2/g	5 Min 6 Min
Electric Strength in Air	KV/mm	7.0 Min
Ash Content	%	1.0 Max
Conductivity of 5% Aqueous Extract	Ms/m	10 Max
Ph of 5% Aqueous Extract		6 - 8
Heat Stability (150degC,24hrs)	%	20 Max

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
