Product Specifications
| Prod Model: |
BJ-02G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
Full English LCD Display |
| Cutting Length: |
1-150000mm |
| Stripping Length: |
End of a Thread 0-50mm Line Tail 0-50mm |
| Motor Step Angle Accuracy: |
3-Phase 6 Shot 1.5/3 |
| Cut The Middle Of Stripping: |
13 |
| Wire Size: |
AWG12-AWG32# |
| Appropriate Wire Stripping: |
PVC, Teflon, Glass and Wire |
| Blade Material: |
Hard Tungsten Steel |
| Stripper Speed (Article / H): |
L=100mm, 3000-8000PCS/H |
| Drive Mode: |
Four Drives |
| Certification: |
CE |
| Type: |
Wire Strippers |
| Customized: |
Customized |
| Condition: |
New |
Product Description
Specifications

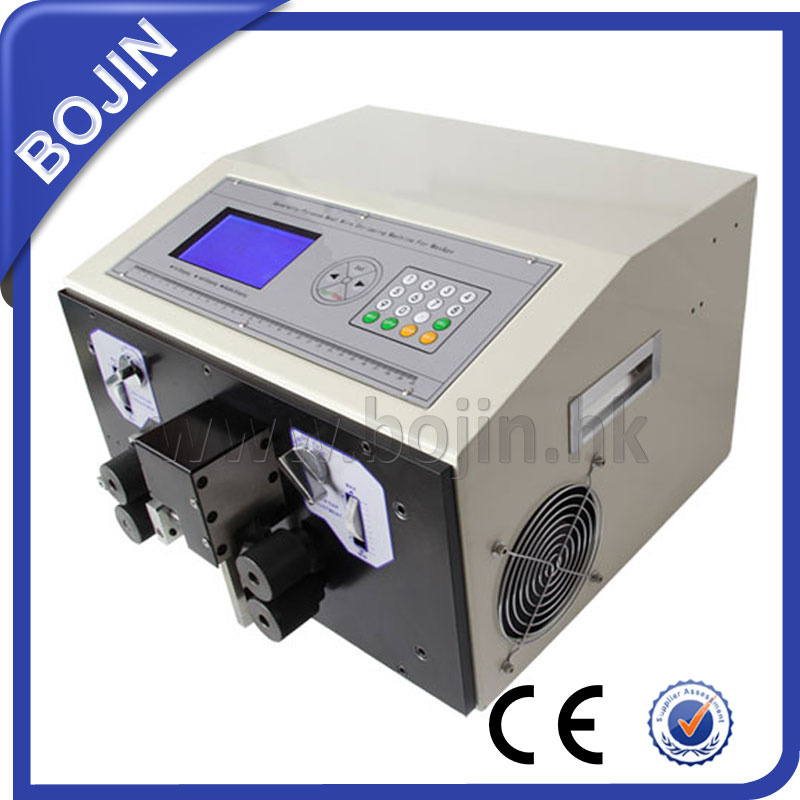

Electrical Motor Leading wire Cutting Machine
Wire Gauge Range: AWG12~AWG32#
Cutting Length: 1mm~150000mm
Memory Function: Max. 99
Oem
Electrical Motor Leading wire Cutting Machine BJ-02G
We manufacture wire stripping machine, wire stripper, tape cutting machine, tube cutting machine, label cutting machine, automatic tape & label dispenser, automatic label rewinder, etc. High quality & low price!
Automatic Wire Stripping Machine, Wire Cutting Machine, Wire Stripper Machine for Double coaxial cable and Sheathed wire BJ-02G
Operation Video:
http://www.bojin.hk/products/bj-02g/
We Provide
Best products and factory price.
On-time delivery and the shortest delivery time.
1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; And you need to pay for the delivery.
OEM and customized service.
User manuals will go with relative machines.
Service
QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
|
Model: |
BJ-02G FOUR DRIVERS |
|
Power: |
AC220/ 50HZ 110V/60HZ |
|
Power: |
Rated 300W |
|
Display: |
Full English LCD Display |
|
Cutting length : |
1-150000mm |
|
Stripping length: |
End of a thread 0-50mm line tail 0-50mm |
|
Motor Step Angle Accuracy: |
3-phase 6 shot 1.5/3 |
|
Cutting Tolerance: |
±(0.002Xl) mm or less |
|
Cut the middle of stripping: |
13 |
|
Core cross-section cut-line: |
0.1- 6mm ² |
|
Wire Size |
AWG12-AWG32# |
|
Conduit diameter: |
Φ10 |
|
Appropriate wire stripping: |
PVC, Teflon, glass and wire |
|
Blade Material: |
Hard tungsten steel |
|
Stripper speed (Article / h): |
L=100mm, 3000-8000pcs/h |
|
Drive Mode: |
Four drives |
|
Package Size |
390*350*255mm |
|
Weight |
32kg |
