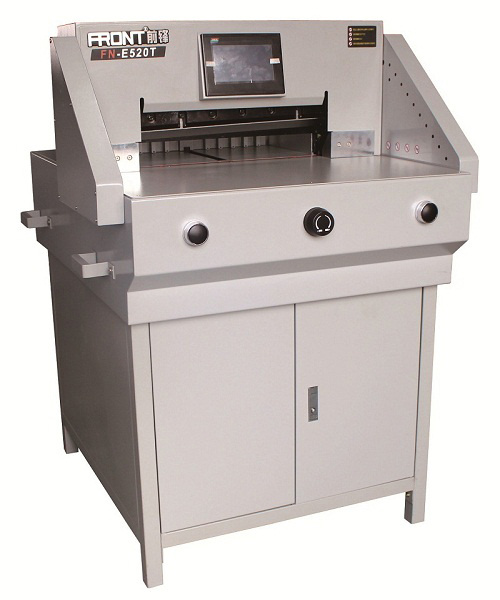

Electrical Programmed Paper Cutter (E520T)
Product Specifications
| Prod Model: |
E520T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
520mm |
| Cutting Height: |
65mm |
| Display: |
Touching Screen |
| Type: |
Cutter |
| Material: |
High-speed Steel |
| Work Type: |
Spot Facing Work |
Product Description
CHARACTERISTICS:Centrifugal paper pressing with driver patent technology
Centrifugal paper pressing with driver structure, prevent paper-presser getting
Stuck
Adjustment gap of blade carrier patented technology
Improving the cutting accuracy of ± 0.3mm
Inclined blade cutting patented technology
Any thick paper can be cut smooth and easily with inclined blade design
Pull rod type rotor structure
Paper cutting driver more smooth, in accordance with biomechanics
Safety protection structure of Blade lock
Preventing the blade slip, and operation safer
PLC main board design
The usage of PLC main board is more stable and reliable.(1) It is easy to use and simple to program(2)It has anti-interference ability and reliability.(3) and easy to replace7'' large LCD touch screen
The cutting depth and size calibration can be adjusted by setting the program, 100 series programs and 96 cuts for each series programs. Humanization design makes the operation easier and more convenient.the servo motor control design, cutting precision is better, and increasing the speed of pushing paper.
The electronic handle wheel fine tuning
The electronic handle wheel can fine tune for paper pushing, techonology of industry leaders
Increasing front table to 460MM, in accordance with new CE standard
Infrared safety protection
Making according to CE standard to guarantee safety with front echelette grating, operation safer
Patent appearance design
New modern and fashion design which is suitable for Digital Express Printing office| Model | Max. cutting size | Min. cutting size | Cutting thickness | Cutting precision | Pressing paper mode | Pushing paper mode | Program | Display | Power parameter | Net weight | SIZE(H*D*W) |
| FN-E520T | 520mm | 30mm | 65mm | ±0.3mm | Electrical | serve motor & PLC | Yes | touchscreen | 220V(110V)±10% 50Hz(60HZ) 1.0KW | 250KG | 1150*810*1250mm |
Zhejiang Daxiang Office Equipment Co., Ltd., have brought many miracles to the office equipment field with powerful technology, advanced equipment and competent management team. During last 10 years, we have produced many series of equipment named FRONT, i. e. Plate-making machine series, guillotine series, roll laminator series, glue binding machine series etc. We have set up many sales & service branches all over 32 provinces, cities and autonomous regions of China and taken the lead on the way marching into the world market among Chinese origin products.
We believe in that No quality & No future. So we have adopted advanced ISO 9000 quality system authentication & carried out the 6S management of 'Seiri, Seiton, Seiso, Seiketsu, Shitsuke, Self-Criticism' activity during our daily work in order to increase our quality control capability. And our products have obtained the certificates of quality system certification and the quality and safety directive are strictly compliant with international rules of CE.
Our production capability reaches 10000 units annually with the help of advanced machining equipment & standard assembly workshop. The major products include hydraulic programmable guillotine series, i. e. H520R, H670R, H720R, and electrical programmable guillotine series, i. e. 4806PX, E520R, E650R. The most important thing is that we own the independent intellectual properties to all type of guillotine. Those products have been exported all over the world & enjoyed the good fame among the clients.
The satisfaction of the customer is our unique standard for our work. Good products need good service to support. We own an experienced after-sale service team, which can offer efficient & professional support to all of our clients.
Bringing best quality, becoming field pioneer
We, Zhejiang Daxiang will make continuous efforts to be one of the best enterprises in Chinese printing & office equipment field with the help of all your honorable clients
We have hundreds of long-term cooperation partner home & abroad and set up stable cooperation relationship with them. Including, Asia, Europe, North America, South America, Africa, Oceania
Beginning from the foundation, we pay special attention to the R&D and practice. Our products have many advantages like fashionable appearance, infrared safety protector, inclined blade cutting technology, cutting depth bit adjusting technology, Oscillating oil cylinder device, free programmable control mode & malfunction code displaying function and so on. And most of them have been already got national patent.
