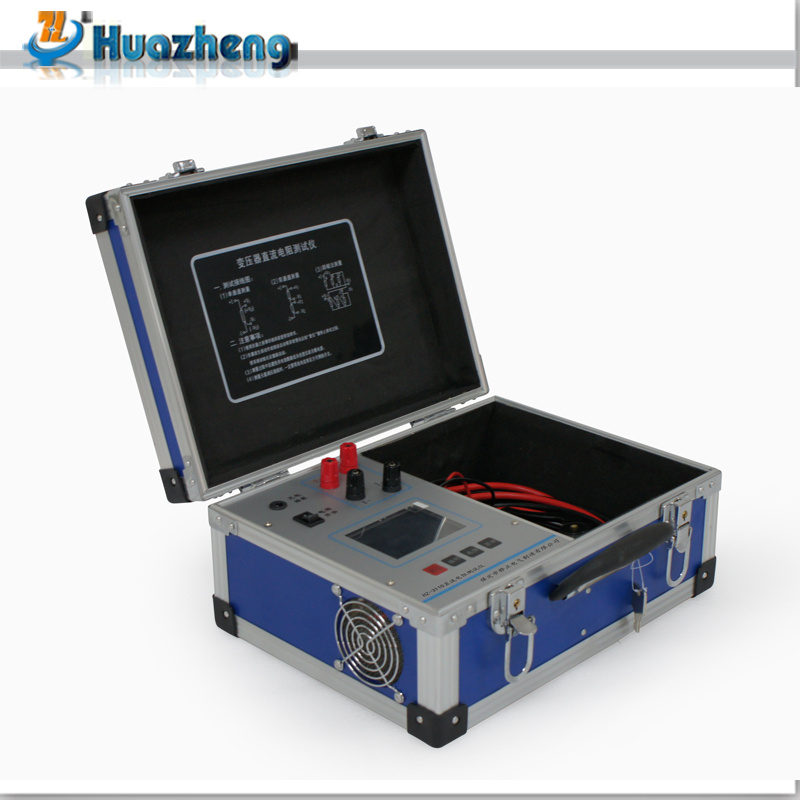

Electrical Transformer Testing Equipment Electric DC Resistance Meter
Product Specifications
Prod Model: |
HZ-3110 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model Number: |
Hz-3110 |
Test Report: |
Yes |
Measurement Accuracy: |
± (0.2%+2) |
Work Power: |
110V-400V Adjustable |
Work Tempreture: |
-10°c~ 50°c |
Environment Humidity: |
≤85%Rh |
Power Frequency: |
50±1Hz |
Size: |
350*216*226mm |
Sharpness Of Separation: |
1 |
Output Current: |
10A 5A 1A |
Type: |
Strength Testing Machine |
Weight: |
0-100Kg |
Power Source: |
AC220V |
Maxcapacity: |
400V |
Product Description
Electrical Transformer Testing Equipment Electric DC Resistance Meter
I.Introduction of Electrical Transformer Testing Equipment Electric DC Resistance Meter
Transformer winding dc resistance tester is essential in transformer handover, overhaul and change of the lead switch, it's also the important inspection program to after transformer fault.
II.Features of Electrical Transformer Testing Equipment Electric DC Resistance Meter
1. Output current is big, test range wide, small volume, light weight, simple operation
2. Test speed fast, high-accuracy, good reiteration test, Strong anti-interference ability
3. With perfect protection circuit, strong reliability.
4. With the functions of discharge acoustics, discharge the instructions clear, reduce errors operation.
III.technical data of Electrical Transformer Testing Equipment Electric DC Resistance Meter
Output current | 5A 2A 1A |
Measurement range | 5A: 1Ω~4Ω |
2A: 1mΩ~10Ω |
1A: 10mΩ~20Ω |
Sharpness of separation | 1µΩ |
Measurement accuracy | ± (0.2%+2) |
Size | 350mm*216mm*226mm |
Weight | 8KG |
Work condition |
Work temperature | -10°C~ 50°C |
Environment humidity | ≤85%RH |
Work power | AC 110V-400V±10% |
Power frequency | 50±1Hz |
IV.Fault inspection and processing of Electrical Transformer Testing Equipment Electric DC Resistance Meter
| Phenomenon | Reason | Solution |
1 | Green light don't turn on when power switch connected | Current lines open a circuitPower fuse fusing | Change power lines Change power fuse |
2 | Red light don't turn on when push the red button | Pressure regulating potentiometer didn't return to 0 | Potentiometer return to 0 |
3 | Red light turns on when push the red button, while raise voltage, red light turns off, red light turns on | High voltage output terminal tester has short circuit | Check the output electric cable.Check the tested products |
4 | During raise voltage, red light turns off, green light turns on. | Tester discharge or break-down over voltage or over current protection movement | Check the tested products reset setting valu |
V.After-Sales Service
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
