Electrical Vulcanized Fiber Paper Insulation Paper

Name: Electrical Vulcanized Fiber Paper Insulation Paper
Brand: china-manufacturer-directory.com
SKU: 702616082
Availability: InStock
Rating: 5 (40 reviews)

Supplier:	Xuchang Chengrui Insulation Material Co., Ltd.
Price:	US $ 3000/Ton
Min Order:	1/Ton
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	Insulation Paper
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Width:	1300mm 1550mm
Thickness:	0.7mm-2.0mm
Heat-Resistance:	Class Y 90
Storage Life:	1 Year
Application:	Switch Baseplate
Type:	Solid
Chemistry:	Organic Insulation
Material:	Paper
Thermal Rating:	Y 90
Maximum Voltage:	<10KV
Color:	Red
Brand:	Chr

Product Description

Product Description

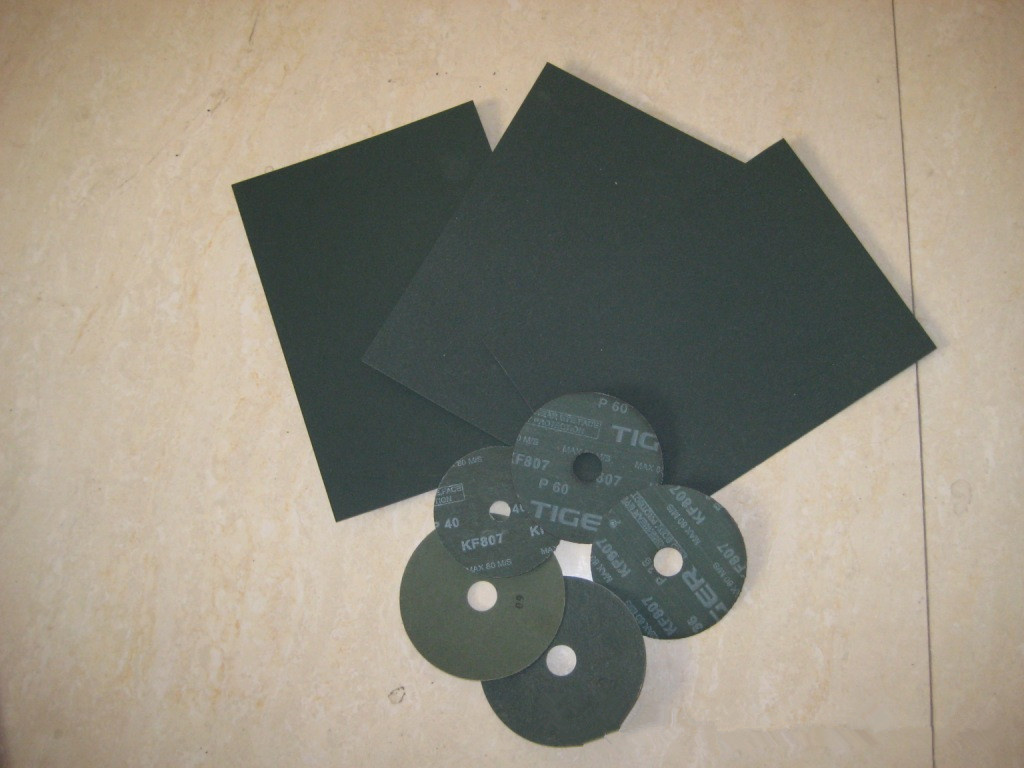

Vulcanized Fiber Paper

Specification:
1. Material: Chemically gelatinized cellulosic paper using zinc chloride as the gelatinizing agent.
2. Machine width: 1300mm, 1550mm
3. Size: Can be in sheets and rolls
4. Color: Red, green etc
5. Thickness: 0.5mm, 0.7mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm
6. Usage: Used for manufacturing abrasive fibre discs, semiflexible discs, gasket of electric equipment etc.

Package: PE coated paper wrapped on wooden pallet

Features:
1. Excellent flexibility
2. Abrasion resistance
3. Corrosion resistance
4. Heat resistance
5. Mechanical strength
6. Insulation properties and Mechanical properties of molding processing

RED VULCANIZED SHEET		SIZE:1200mm*1600mm
ITEM		STANDARD	TEST RESULT
THICKNESS(mm)		0.80	0.78-0.81
DENSITYg/cm3		1.10	1.17-1.21
BREAKDOWN VOLTAGEKV/mm		6.0	12.0
PEEL STREANTH KN/cm2		2.0	2.4-2.6
TENSILE STRENGTH	MD	5.5	9.4-9.7
	CD	3.0	4.8-5.2
ZINC CHTORIDE CONTENT %		≤0.20	0.12
WATER ABSORPTION %		≤70	65-70
WATER CONTENT %		6-10	7.9-8.4

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
