Product Specifications
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Sensor: |
Tube/Flange |
| Type: |
Electromagnetic Flow Meter |
| Accuracy: |
?à0.2-0.5% |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Electrical Principles |
| Size: |
> DN500 |
| Principle: |
Velocity |

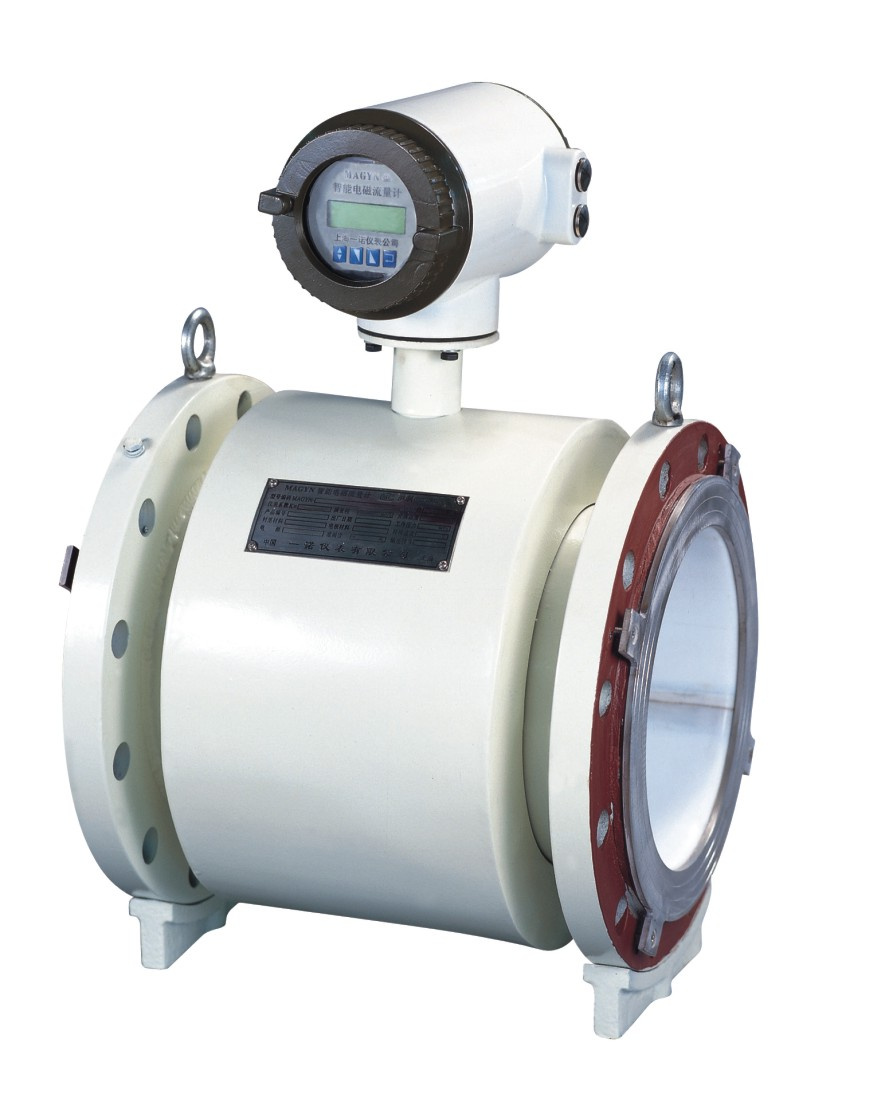

Product Description
The third most common flowmeter behind differential pressure and positive displacement flow meters, is the magnetic flow meter, also technically an electromagnetic flow meter or more commonly just called a mag meter.
Feature And Usage
1. Independence: When the temperature, pressure, vicosity and density of the measured fluid changing, the flowmeter do not be influence.
2. Easy Maintenance: No moiving parts in measuring tube, so easy maintenance.
3. Widely Use: Can measure conducttivity liquid, fibre content conducttivity liquid, solid content conducttivity liquid, suspending material conducttivity liquid whenever fibre or solid.
4. Easy Install: Install any angle only need liquid full of the pipe.
Large Turndown Ratio: The turndown ratio can reach to 1: 100
Enclosure: For DN15~DN1200 is IP68
5. High Intelligence: Back light English/Chinese LCD display, Meun setinng control, three grades password protection, Two-way measuring availiable, slight signal removal, Auto flow compensate and other function.
6. SMT Technical: Intelligence self-detact and self-diagnoses, many kinds of alarming
7. SMART Excitation: Low power consumer, zero stability, longtime reliability
Nominal Pipe Size 1/2''~96''(15~2400mm)
Medium Conductive Liquid
Accuracy ± 0.5% of rate, ± 1.0% of rate
Working Pressure (0.6~42.0)MPa
Working Temperature (-10~+120)° C
Fluid Conductive ≥ 5 u/cm
Enclousure IP68(For sperate type with synthetic rubber lining only)
Electrode Material SS, Ha, Ti, Ta, Carbonized Tugsten, Platiniridium
Lining Material PTFE, Synthetic Rubber
Alarm Output Alive
Communication RS485 Computer Interface and Hart Protocol
Anti-explosion Grade Exdeia IICT4, Anti -explosion No.: GYB03542
As a joint-stock company, Shanghai Yinuo has the following sub-companies, Shanghai Yinuo Engineering Co., Ltd. Shanghai nuoly International Co., Ltd. Shanghai Yinuo Kovert pump Co., Ltd. Panjin Branch of Shanghai Yinuo Instrument Co., Ltd. EMIS-YINUO LLC (In Russia). GPE Inc. (in USA), We are a professional manufacturer of flow measurement and control instruments.
Shanghai Yinuo Instrument Co., Ltd. is a high-tech enterprise in Shanghai, the vice chairman committee of Shanghai Measurement and Testing Association and also authorized member of first level providing network by CNPC and SinoPEC. We have received the CCS Certificate of China Classification Society and BV Certificate of international Classification Society.
The main products are listed as follows, LSZ Double Rotator Flow meter, GLZ High Pressure Flow Auto Controller, LZYN Coriolis Mass Flow meter, LSZQ Gas Double Rotator Flow meter, MAGYN Intelligence Electromagnetic Flow meter, YQSJL-YN Three-phase measuring device, 2GS Screw pump, QZ Skid Mounted Loading & metering system.
