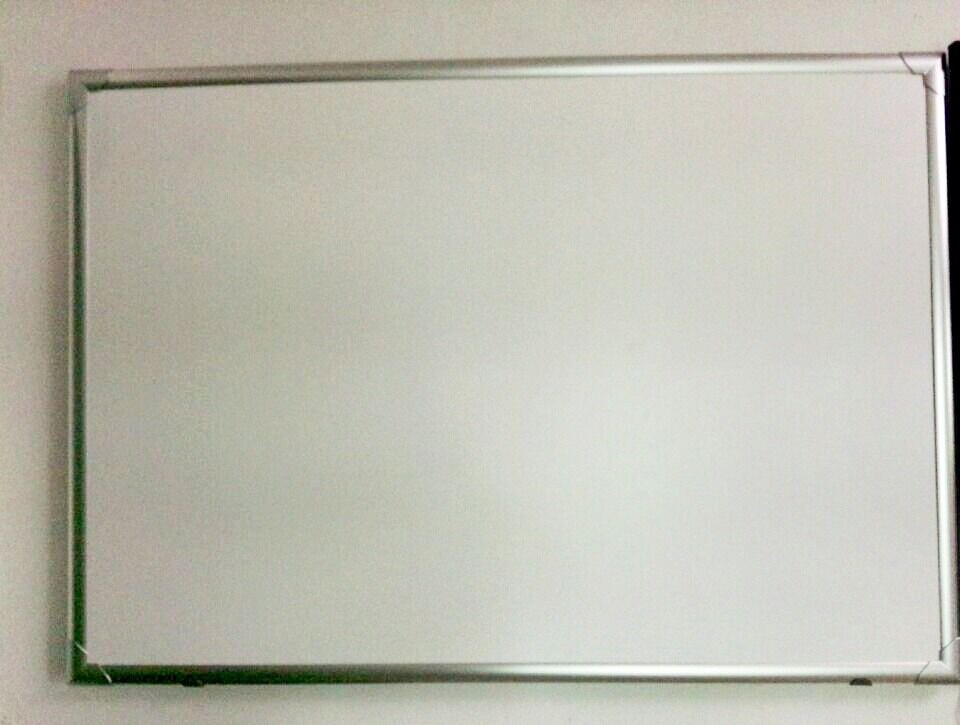

Product Specifications
| Prod Model: |
EM--10085 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Optional size:
85 inch(4:3)101 inch( 16:9 )
Specification
| Model | Product size | Writing size | Projection size | Ratio | Packing | GW | NW |
| EM-10085 | 1790×1265mm | 1650×1170mm | 1650×1170mm | 4:3 | 2060×1460×100mm | 28.3kg | 16.5kg |
| EM-10101 | 2280×1270mm | 2175×1165mm | 2180×1170mm | 16:9 | 2440×1460×140mm | 33.8kg | 20kg |
Projection Parameters
Projection Gain: Available
Viewing Angle: 170 degree in Horizon,160 degree in vertical
Working Parameters
Work Temperature:-40ºC to 50ºC(-40ºF 122ºF)
Work Humidity:30% to 80%
System:
| Basic | Suggested |
| Pentium III 800MHz or higher | Pentium 4 1800MHz or higher |
| 512 MB RAM | 1GB RAM |
| Windows 2000, XP,Vista,7 | Windows 2000, XP, Vista, 7 |
| Microsoft Internet Explorer 6.0.0 | Microsoft Internet Explorer 6.0.0 |
| Microsoft Office 2000 | Microsoft Office 2000 |
Board Features
Induction way:Electromagnetic
Power Input:USB or 100-240 VAC, 50/60 Hz AC
Power consumption:100mA
Signal:USB 2.0
USB Line: 10M
Transmission Speed:12M/S
Cursor Deviation:0.05mm
Scanning Speed:The first point 25ms,consecutive points 8ms
Cursor Speed:180 points/s
Resolution:9600*9600(depends on projector)
Surface:PET/Matt surface,improved projection,support markpen
Software:XOSOI Software 7.32/XOSOI Software 7.35
Certificates:CE, FCC, ROHS
Warranty:White board 1 years warranty, circuit board, pen, USB cable three years warranty.
Established in 2012, Shenzhen XOSOI Technology Co., Ltd. Is a professional manufacturer that is concerned with the design, development and production of man-machine High-Tech products. We are located in Shenzhen City with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Covering an area of 2000 square meters, we now have over 50 employees, boast an annual sales figure that exceeds USD 20 million and currently export 80% of our production worldwide.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching the Middle East, Europe, and East and South Asian countries.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
