Product Specifications
| Prod Model: |
ND-3000-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Extension Length Of Dead Bolt: |
20mm |
| Voltage: |
9-12VDC |
| Working Current: |
1.5-3A |
| Consumption Power: |
10W |
| Sensitivity: |
1s |
| Dimensions: |
125L*110W*45h(mm) |
Product Description

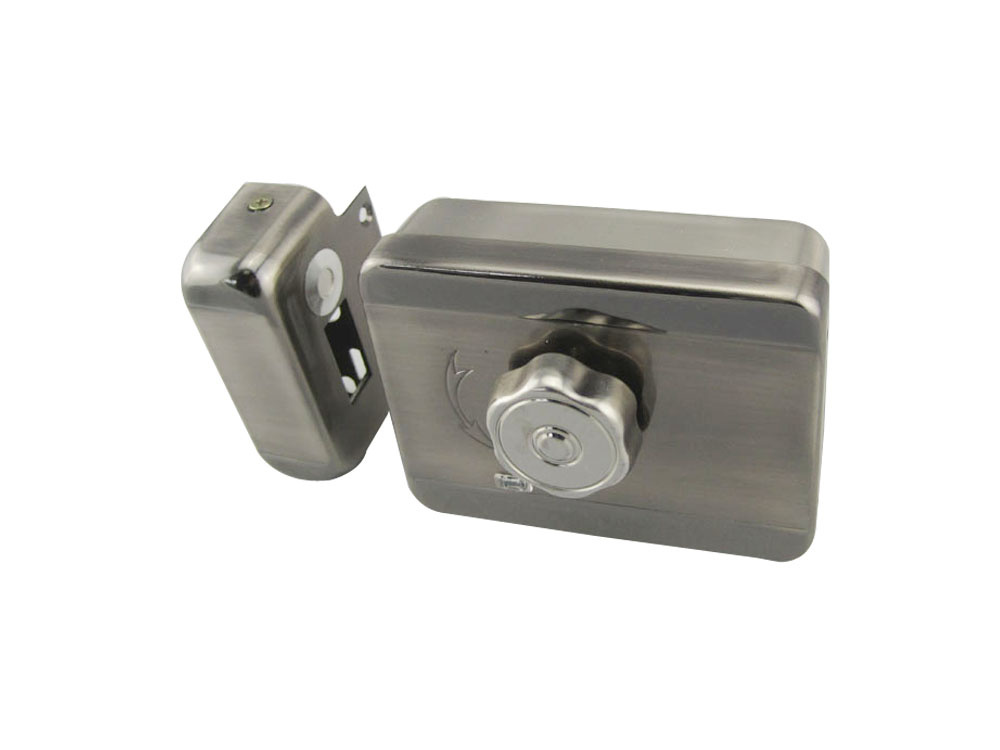

Electronic access control with Changing locks
| Fail-secure type (Power to open) |
| Extension Length of Dead Bolt: 20mm |
| Voltage: 9-12VDC |
| Working Current:1.5-3A |
| Consumption Power:10W |
| Sensitivity: 1s |
| Lock-opening Delay Time:Automatically lock within 9s if no opened |
| Automatic locking controlled by autocomputer,alarm if bolt is not in correct position when locking by power |
| Stainless steel shell is option |
| Dimensions: 125L*110W*45H(mm) |
| Weight:1.7kg |
Company > Warranty
Dear customers:
Thank you forbuying Nordson Access Control products, to protect your legal rights andinterests, Nordson Electronic Co.,Limited(hereinafter referred to as: Nordson Electronic)make the following warranty and service commitments:
？ Theproduct(s) are returned to Company within the warranty period
？ Providedthat on NORDSON's inspection of returned products that the defect is not aresult of accident, misuse, neglect, alteration, water damage, lightningdamage, voltage surge damage or other improper use.
1.Shipping: Thehardware product must be couriered to and from the NORDSON office and theshipping cost must be pre paid and is not the responsibility of NORDSON.
2.For thenon-human factors of product quality issues, NORDSON offer three-year warranty servicesfor electromagnetic lock; 3-year warranty for access control panel, electricbolt and electric strike; 1 year warranty for exit button, bracket, and powersupply. The customers should take charge of the material and the maintain feesif the product damaged under other conditions.
3.Remarks:
？ NORDSONelectronic liability is limited to repair, replacement of defective products orproduct components.
？ Freight andmaintenance costs are at the user's cost in the maintenance period.
？ Maintenancelead time is 7 days after receiving maintenance request.
Nordson Electronic Co., Limited was founded in 2006, and now we are one of the most professional and comprehensive providers of access control solution in China. After years of arduous pioneering, we create a powerful capabilities of product development and manufacturing. Ourbusiness scope involves magnetic lock, bolt lock, strike lock, door contract, accesscontroller, automatic door operator and access control solution.
Nordson pursuited for excellence all the time. We makethe brand to be top-ranking in China with advanced crafts and rigoroustechnologies. Up to now, all our products pass the certifications of CE, RoHS, andalso pass the quality test of security products by China's Ministry of PublicSecurity. Nordson's products sell and be agent in more than 100 countries andregions, such as USA, EU, Middle East, Southeast Asia, Australia, Brazil, India, Russia etc...Besides, Nordson provides OEM and ODM services also. Nordson'sproducts are widely used in business institutions, government agencies, residentialcommunities, universitiesand so on.
In future, Nordson will pursuite for more excellent performance, and provide more new items and better services. Our customers will growtogether with us, to be strong in the process Nordson become the most powerfulenterprise of security system in China.
