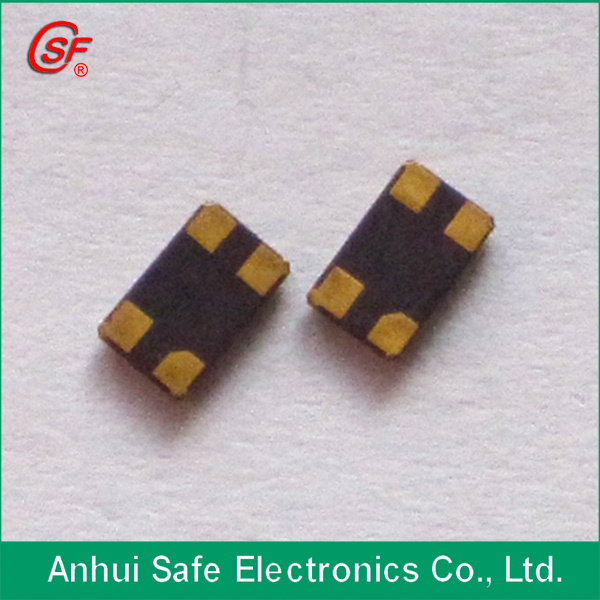

Electronic Component Crystal SMD4025 Resonator
Product Specifications
| Prod Model: |
SMD4025 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
4.0(L)*2.5(W)*0.68(H)Mm |
| Frequency Range: |
12.000MHz to 54.000MHz |
| Frequency Tolerance(at 25 C): |
+/-10ppm, +/-20ppm, +/-30ppm |
| Frequency Stability Over Operating Tempe: |
+/-10ppm, +/-20ppm, +/-30ppm |
| Load Capacitance: |
16pf, 20pf, 30pf, 32pf |
| Operating Temperature Range: |
-20 C to +70 C |
| Storage Temperature Range: |
-40 C to +80 C |
| Shunt Capacitance: |
5.0pf Maximum |
| Drive Level: |
10u W (Under 100u W) |
| Aging(at 25 C): |
+/-3ppm or +/-5ppm/Year Max |
Product Description
Electronic Component Crystal SMD4025 Resonator
Applications
(1)Digital products
(2)Communication equipments
(3)Automobile
(4)Instrument
Size: 4.0 x 2.5 x0.8mm
|
Frequency Range |
10.000MHz – 80.000MHz |
|
Vibration mode |
Fundamental |
|
Frequency Tolerance at 25C |
+/-5ppm to +/-30ppm |
|
Frequency Stability |
+/-10ppm to +/-30ppm |
|
Operating Temperature Range |
-40C- +85C |
|
Equivalent series resistance |
See table(ESR) |
|
Aging |
+/-1ppm to +/-3ppm / year |
|
Load Capacitance |
Series, 8pf - 30pf, etc. |
|
Shunt Capacitance |
5.0pf Max |
|
Drive Level |
10uW (100uW max) |
|
Storage Temperature range |
-55Cto +125C |
|
|
|
Equivalent Series Resistance (ESR)
|
Frequency(MHz) |
Mode |
Ohm Max |
|
12.000 – 14.990 |
Fundamental |
90 |
|
15.000 – 18.990 |
Fundamental |
70 |
|
19.000 – 23.990 |
Fundamental |
55 |
|
24.000 – 29.990 |
Fundamental |
45 |
|
30.000 – 50.000 |
Fundamental |
40 |
Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.
Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.
The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.
With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.
Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.
"good faith, serving the whole world" is our principle.
