Technical Specifications:
Measuring voltage range: -6000mV~+6000mV Measuring voltage resolution: 0.01mV
Measuring voltage accuracy: (at Vp>10mV)±5%, ±1 digit; (at Vp>10mV)±1%, ±1 digit
Measured apparent polarizability accuracy: ±1%, ±1 digit
Measuring current range: 0~5000mA Measuring current resolution: 0.01mA
Measuring current accuracy: (at Ip>10mA)±5%, ±1 digit; (at Ip>10mA)±1%, ±1 digit
Input impedance: >50M ohm
Interference suppression on 50Hz power frequency: better than 80dB
Maximum power supply voltage: 900V Maximum power supply current: 5A
Power pulse width: 1-6 seconds, duty cycle 1:1
Working temperature: -10C Celcius ~ +50C Celcius, 95Rh
Weight: 8 kg
Volume: 305*200*202mm
Main Applications
By utilizing relevant parameters of apparent resistivity and induced polarization method,the instrument is widely used in many aspects including metal and non-metal mineral resources exploration, energy exploration, city geophysical exploration,railway and bridge engineering exploration,etc.
Search for groundwater, search for geothermal and other hydrological, engineering geological exploration.
With 60-channel & 120-channel multiplex electrode switch made by our factory, this instrument can also be used as multi-electrode resistivity survey system.
Main features

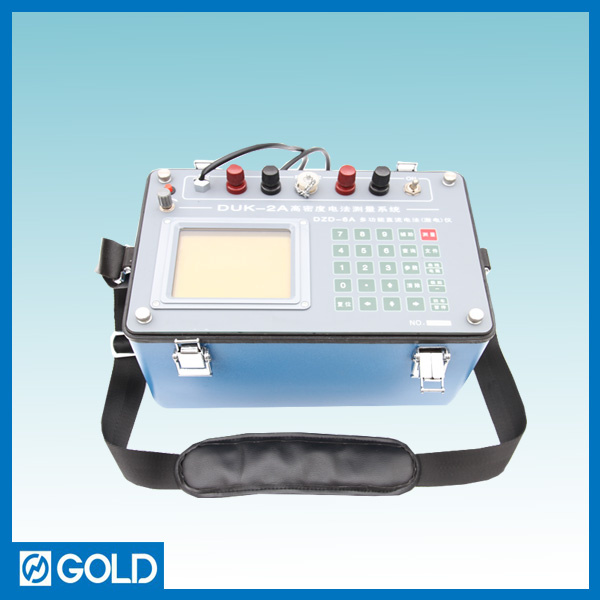

Small,light,the instrument integrates receiver and transmitter together in the same cabinet, which can be used for measurement via apparent resistivity method and induced polarization method.
Various Measurement Parameter: Instrument can be applied in direct measurement and indication of primary potential Vp, spontaneous potential Vsp, power supply current I, apparent resistivity Ro, apparent polarizability Ms, half-decay time Th, degree of decay D, integrated IP parameters Zp, and degree of deviation R.
