Converting the Documents, bill, insurance and insurance claims to be electronic archive,providing retrieval, efficient, fast, good service to our clients.
Product Feature
1, 0 second to prepare, scan immediately
Connecting to the computer that keeping it standby mode, when using, no preheating waiting, which improves the efficiency of the office.
2, Green environmental protection, low carbon, energy saving
Using the USB connection of computer power supply, the built-in LED light without external power supply, and supply the best imaging quality of scan files.

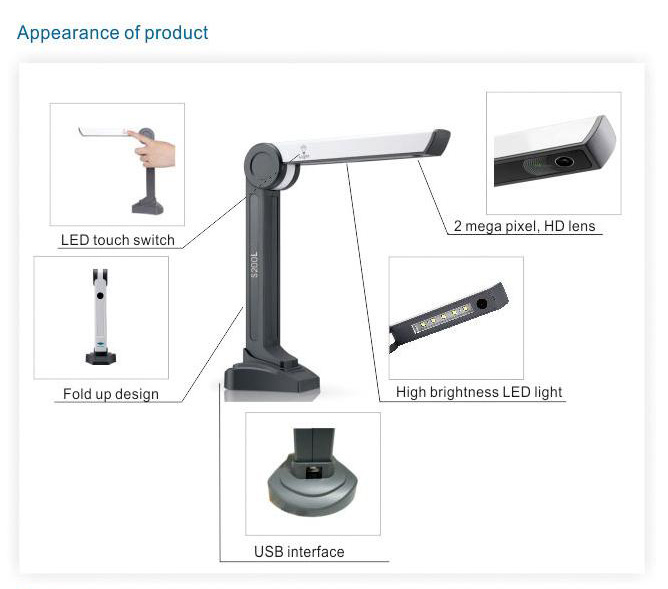

3, Foldable design, easy to carry
Fold up design, open freely, small and portable, can be put in briefcase, also can carried by a single hand, especially suitable for mobile office.
4, Professional document mat instruct to scan
Document mat note ID, A4 paper and other common file size, only need to put the files into the size of the corresponding area, convenient to use
Product Function
1, Quickly scan, 1 second to finish
One click mouse to finish scan, only take 1 second.
2, Almighty shooting
Document, materials, notes, ID card, books, object, etc.
3, Timing shooting, rapid adaptations
Set shooting time interval, The software automatically taken pictures regularly, Rapid scan documents and books.
4, Video recording
It Can record and playback multimedia demo video, for experimental demonstration, Product training and presentation, etc.
5, Image editing processing
The software has strong image editing processing functions, such as images shear, rotation, add text, adjust the saturation, contrast, brightness and binary processing.
6, The remarkable recognition technology
Eloam has leading character recognition technology, Text, form, symbols are recognized easily, Support multinational language recognition, recognition rate of 98%, directly save as word document after recognition.
7, PDF
Only one click to convert pictures to PDF file, can be read in a variety of equipment.
8, Print, fax, email, Office integration
Connected to the printer to print scanning files, Send network fax and E-mail, Realize office integration.
Specifications:
1, Model: S200L
2, Certificate: CE, RoHS, FCC
3, Max Scan size: A4
4, Image sensor: 2 Mega pixels (CMOS)
5, OCR (optical character recongition ) function: 10 languages OCR function
6, Frame Rate: 30
7, Dpi(Dots per inch): 150
8, Resolution: 1600*1200
9, Built-in LED light: Yes
10, Picture format: JPG, TIF, PDF, BMP, TGA, PCX, PNG, RAS
11, Document format: PDF, WORD, TXT
12, Video format: AVI, WMV
13, Interface: USB2.0
Package and sales service:
1, Package include: 1X Scanner, 1X USB cable, 1X User Guide, 1X CD-ROM, 1X roll-up Mat
2, Approximately Loading quantity: 2000PCS/20'; 4000PCS /40' GP; 5000PCS /40'HQ
3, Sales service: 7 days replcement, 1 year free warranty, long life service
4, We also accept customized requestMajor Applications
Office
Scan and store daily documents, promote paperless and save cost for enterprises.
Education
Teaching documents, test paper and other documents scanned and stored;Video record in real time projection, multimedia teaching
Finance
Business documents scanning and classification of customer profile information storage, build digital management system, improve business efficiency
Government
Scan and store various government documents,building information base,realiz information sharing
Design institute
Batch processing archived design drawings,conveniently search and share information
Communication
Scan data entry and manage information for clients through business window
Library
Scan paper and convert into electronic documents through powerful OCR function, achieve network sharing
Logistics
Fast batch scanning signature bill information
|
Brand Name |
Eloam |
|
Model |
S200L |
|
Image sensor |
2 Mega pixels |
|
Resolution |
1600*1200 |
|
Frame Rate |
30 |
|
Dpi(Dots per inch) |
150 |
|
Scan size |
A4 |
|
Speed |
1s |
|
Image color |
24 Bit |
|
Sensor |
CMOS |
|
LED light |
Natural+LED Supplement light |
|
Document format |
PDF/WORD/TXT |
|
Image format |
JPG/TIF/PDF/BMP/TGA/PCX/PNG/RAS |
|
Video format |
AVI/WMV |
|
Interface |
USB2.0 |
|
Size(B*T*H) |
240*80*92 mm |
|
Weight |
0.55 kgs |
|
OCR |
More than 180 kinds of languages |
|
Limited Warranty |
12 Months |
System Requirements
(minimum) |
CPU P4,Windows XP,MS Direct 9.0,Vista,Win7 |
|
Image Processing |
Brightness,Contrast,Sharpness,Saturation,Gamma,Rotation,Mirroring,etc |
|
Package Contents |
Document scanner, CD-ROM, Presentation Pad,USB-cable, Users Manual |
|
Certificate |
CE\RoHs\FCC |
