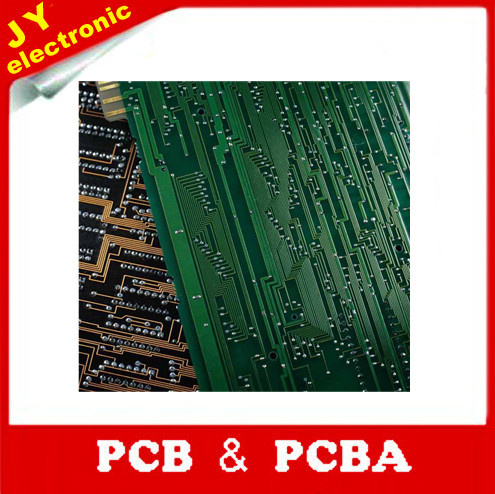

Electronic Hal PCB Printed Circuit Board
Product Specifications
| Prod Model: |
JY007 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V1 |
Product Description
Item
Manufacture Capability
Material
FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant) /CEM-3, Aluminum, Metal based
Layer No.
1-- 20
Finished Board thickness
0.2 mm-4.0mm'(8 mil-160 mil)
Board Thickness Tolerance
± 10%
Cooper thickness
0.5 OZ-6OZ (18 um-210 um)
Copper Plating Hole
18-40 um
Impedance Control
± 10%
Warp &Twist
0.50%
Peelable
0.012"(0.3mm)-0.02'(0.5mm)
Images
Min Trace Width
0.075mm (3mil)
Min Space Width
0.075mm (3mil)
Min Annular Ring
0.1mm (4 mil)
Solder Mask
Min Solder Mask Dam
0.0635 mm (2.5mil)
Solder mask Clearance
0.1mm (4 mil)
Holes
Min Hole size (CNC)
0.1 mm (4 mil)
Min Punch Hole Size
0.9 mm (35 mil)
Hole Size Tol (+/-)
PTH: ± 0.075mm; NPTH: ± 0.05mm
Hole Position Tol
± 0.075mm
Plating
HASL
2.5um
Lead free HASL
2.5um
Immersion Gold
Nickel 3-7um Au: 1-5u''
OSP
0.2-0.5um
Certificate
ROHS, SGS, UL, ISO9001: 2008.
Dalian Jia Yuan Electronic Co., Ltd. Was established in 2002, located in the scenic Dalian, a comprehensive set of production and trade company, providing customers with high-precision single-layer, double layer, multi-layer printed circuitboard, LED lighting, aluminum base plate, as well as customers one-stop service to parts procurement and circuit board mount.
Since its inception, has always been to implement the concept of customer-focused services, Board annual production capacity of 600, 000 square meters, products are widely used in various fields of telecommunications, medical equipment, computers, automobiles, electricity, security, industrial control, military, etc., the Company has obtained ISO9001: 2008 quality management system certification (NO.: HK07/01236) and ISO14001: 2004 Environmental Management System Certification (NO.: HK06/01336). Of OHSAS: 2007 (NO.: CN09/31825, ) the occupational health and safety certificate of ISO/TS16949: 2009 automobile production quality management system certificate (NO.: CN07/0108T2, ) the United States UL safety certification (E203640),
Future technological era, the era of information, but also full of opportunities and challenges of the times, we know that customer support and care is the driving force behind the company continued to grow. Ben force of the promise: We will be more detailed services of better quality products to meet customer, with our sincere and serious company and its customers to achieve new development, a new leap.
