Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
Electronic |
| Frequency Resolution: |
1Hz |
| Pulse Width Setting Range: |
33ns-60s |
| Positive Time Interval Range: |
10ns~8s |
| Minimum Sampling Interval: |
100ns |
Product Description
Product Overview:

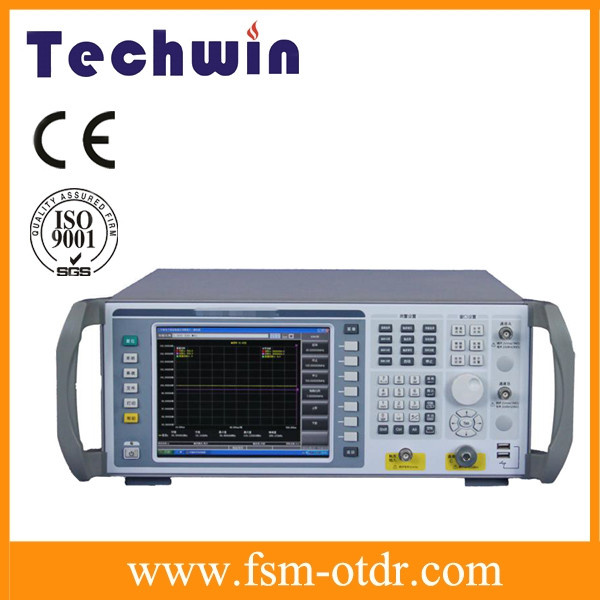

Modulation domain analyzer is the latest high-performance
integrated measuring instruments. It can measure relative time changing of continuous
wave and pulse modulation carrier frequency, time interval, pulse frequency, cycle, high
pulse, low pulse, duty cycle measurement. Moreover, it can display trajectory diagram,
histogram display method, and a variety of statistical analysis functions. This product
combines a dedicated counting chip wide bandwidth, good scalability of the
programmable logic device, fast speed of digital interpolation. It uses alternating dual
channel counting, making use of dedicated chip and general-purpose chip in groups,
digital delay interpolation calibration. Therefore it achieves high speed, high resolution,
large bandwidth, no dead modulation domain measurements. Techwin can be widely
applied in the field of anti-jamming communications, frequency agile radar, electronic
warfare, military and civilian electronic systems development, production, and
maintenance.
Main Features:
Excellent Technical Parameters:
* Frequency range: 10Hz ~ 40GHz
* Measuring bandwidth: 2GHz
* Sampling interval: 100ns
* Pulse width range: 50ns ~ 10ms
* Time interval resolution: better than 100ps
Various Measurement Functions::
* Carrier frequency VS Time measurement functio
* Pulse frequency VS Time measurement function
* Pulse width VS Time measurement function
* Positive time interval VS Time measurement function
* Positive and negative time interval VS Time measurement function
* Continuous time interval VS Time measurement function
* Phase VS Time measurement function
User Friendly Interface:
* Bilingual(English/Chinese) operator interface, embedded instructions and
online help function
* 8.4-inch high-brightness, high-resolution LCD display, 170-degree
viewing angle
* Trajectory zoom view function and the humane treatment of input box
Excellent Adaptability::
* Auto-calibration technology, adaptable to the different environments
* Flexible operation to support the instrument, front panel and standard
computer keyboard, mouse and other operations to suit for different
users' habits
Adaptable to 110V/220V two grid power supply system
Powerful Statistical Analysis
* Statistical functions: mean, standard deviation, maximum, minimum,
peak-to-peak, Alendronate deviation, duty cycle, pulse repetition interval,
high / low pulse width
* Trajectory chart, histogram display
* 4 levels of horizontal cursor and 4 vertical cursor for analyzing results
