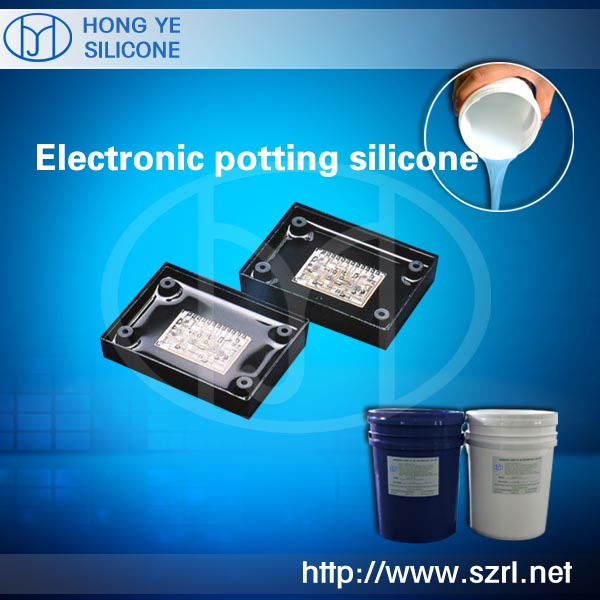

Electronic Potting Silicone for Encapsulation

Electronic Potting Silicone for Encapsulation
Supplier: Shenzhen Hong Ye Jie Technology Co., Ltd.
Price: US $ 8.5KG
Min Order: 200KG
Quantity::
Trade Terms: FOB,CFR,EXW
contact supplier

Product Specifications

Prod Model: HY-9055
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sample: Available
Shelf Life: 12 Months
Material: Silicone Rubber
Raw Material: Liquid
Appearance: Liquid

Product Description

1. Product Feature of Electronic Potting Silicone Rubber
HY 9055 silicone rubber is a kind of low viscosity, Inherent flame resistance, two components addtion cured potting silicone with heat-conducting. It cures with both on room temperature and heated temperature. It has the feature of the higher temperature the faster of the curing time. It can be applied to electronic components for insulation, waterproofing, fixed and flame retardant. It mainly applied in electronic components surface with materials of PC(Poly-carbonate), PP, ABS, PVC, etc. And metal materials.

2. Typical Application of Electronic Potting Silicone Rubber
HY 9055 electronic potting silicone rubber could be applied to
- high powered electronics,
- DC/DC module and circuit board which requires heat dissipation and high temperature resistance.
-It can be broadly used for LED screen, Wind Power Generator, PCB substrate, etc.

3. Technical Guidelines of of Electronic Potting Silicone Rubber
A, Pls put part A and part B in separate container and stir evenly before mixing the two part together.
B, Mixing Ratio: Part A: Part B = 1: 1
C, Deaeration the mixture in vacuum pump under 0.08 MPa for 3-5 minutes. Then the mixture could be used for pouring.

Note: The thickness of the silicone affects the curing time. If the silicone used is a little thick, then the curing time will be a little longer. The temperature also affects the curing time. When in lower temperature, we suggest customers appropriately heat the mixture to accelerate vulcanization. With temperature of 80~100º C, the silicone will cure in 15 minutes; While in 25º C room temperature, the silicone will cure around 8 hours.

4. Notes of Electronic Potting Silicone Rubber
A. The following material may hinder the curing of HY 9055, So pls use after the test. When necessary, pls clean the application areas.
Organotin compound or Condensation silicone with organotin
Sulphur, sulfide and sulfur rubber materials.
Amine compounds as well as contains the amine materials.
Pewters solder flux
B. HY 9055 should be sealed storage. The mixture should be used up disposably to avoid causing waste.
C. HY 9055 belongs to non-dangerous goods, but keep away from mouth and eyes.
D. When it gets stratified after a period of storage, Please mix it evenly before using, which does not affect the performance.

For more information, pls contact with Mr. Google Wan at any time!

Tel: +86-755-89212382

 Mobile: +86-18938867550

We are manufacturer spcializing in silicon rubber material, such as silicone gel, pad printing silicon, RTV-2 silicone rubber, HTV, RTV-2 room temperature sulfurated silicon rubber, silicon, shoe molding silicon, silicon rubber, manul molding silicon, liquid silicon rubber, LSR, pad printing silicone rubber, mixed iron-smelting silicon rubber, solid silicone rubber, methyl-ethenyl silicone rubber, molding silicone rubber, mold duplicating rubber for resin craft makers, special silicon for manual molding, shoe mold rubber, pad printing silicon, silicon oil, 107 base, DMC etc. For plastic toys factories. With a product line of tens of categories, we can offer quick copying with precise contraction ratio (up to two thousandth) for mold making. To reach the internationally leading quality standard with competitive price is our best ambition that merits your trust.

RTV-2 Mold making silicone rubber

[1] RTV-2 silicone rubber for mold making

RTV-2 molding silicone rubber mainly applicable to make the silicone mould for cultural relic duplication, architectural decoration, resin crafts, lighting ornaments, candles, statues, model design, product exploitation, etc.

[2 ]RTV-2 silicone rubber for pad printing

Pad printing silicon rubber is specially designed for silicon pads which requires to be exquisite, without impurity or granules. Silicon pad is a carrier which transfer printing the patterns on the steel plate onto the toy products' Surface. Pad printing silicone rubber is mainly used for printing irregular patterns of plastic toys, electroplating products, electronic toys, trademarks.

[3] RTV-2 manual mold silicon rubber

RTV-2 manual mold silicon rubber is mainly applied in manual mold design, PVC plastic mould, cement product mould, melting-point alloy mould, alloy toy crafts, plastic toy, craftwork, gift and stationery, big statue, cultural relic duplication, shoe sole mould production, pad printing orientation, electronic appliances vibration resistance, etc.

[4] HTV-2 Silicone rubber

HTV-2 silicone rubber is applied in metal crafts, hot stamping silicone roller, hot stamping silicone plate, mobile phone keycap, PC keycap, telephone keycap, TV remote control keycap, electronic products, silicone rubber products field, etc.

[5] Disc silicone rubber

Disc silicone rubber is mainly applicable to zinc aluminum alloy arts and crafts, imitation of gold and silver ornaments, fishing tools, bracelets, hanging ornaments, furniture fittings, decoration accessories, toys and gifts, etc.
