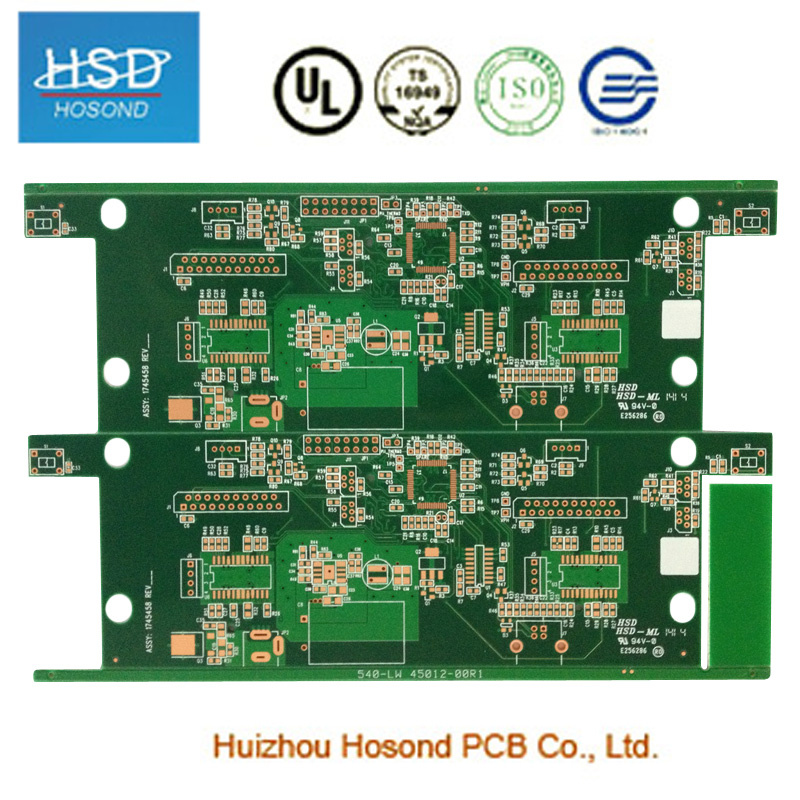

Electronic Printed Car Circuit Board with UL / Ts16949 / RoHS (HXD24C4710)
| Price: |
US $ 1-2/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
30/Square Meter |
| Pay Type: |
L/C,T/T |
Basic Technic Info:
Finished Board Thickness: 0.4mm-3.2mm
Material: FR-4,Aluminum based,Copper based
Maximum Dimension: 610mmx610mm
Minimum Delivery Dimension: 500mmx500mm
Maximum Number of Layers: 8 layers
Minimum Line Width/Spacing: 0.1mm/0.1mm
Minimum Hole Diameter: 0.25mm
Hole Position Precision: 0.05mm
Hole Spacing: 0.3mm
Surface Treatment: HASL,Lead-free HASL,Flash Gold,OSP
Maximum Thickness of Wiring: 5oz
Outline Precision(CNC): 0.1mm
Solder Mask color: Red/Yellow/Black/Green/Blue
Legend color: Red/Yellow/Green/Blue
Our strength:
For layers: double-side ; multilayer board;printed circuit board
For category: High-frequency pcb ; thick-copper board
for application: Auto PCB ; Car dashboard
Delivery Time for PCB board:
1) PCB production time: Sample: 3-5 days / mass production: Within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: Samples: Whthin 2 days / mass printed circuit board production: Within 5 days

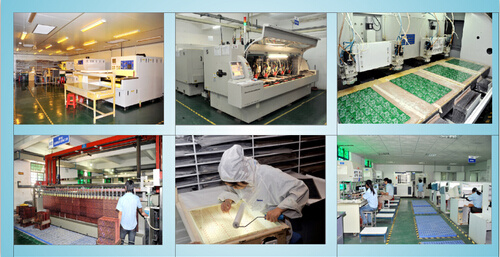

Manufacture process:
If you have any further question please feel free to cantact me
HuiZhou Hosond PCB Co.
Add : Jinji industrial zone xiaojinkou town huicheng distrit Huizhou city Guangdong province China
Website : http://chinesepcb.en.made-in-china.com/
Tel:0752--5853505
Fax:0752--5853853
|
Finished Board Thickness |
0.4mm-3.2mm |
|
Maximum Dimension |
610mm*610mm |
|
Minimum Finished Board |
80mm*80mm |
|
Maximum Delivery Dimension |
500mm*500mm |
|
Maximum Number of layers |
8 layers |
|
Minimum Line Width/Spacing |
0.1mm/0.1mm |
|
Minimum Hole Diameter |
0.25mm |
|
Hole Position Precision |
0.05mm |
|
Hole Spacing |
0.3mm |
|
Surface Treatment |
HAL;Lead free Hal;Flash Gold;OSP |
|
Maximum Aspect Ratio |
8:1 |
|
Maximum Thickness of Wiring |
5oz |
|
Outline Precision(CNC) |
0.1mm
|
| Prod Model: |
HXD24C4710 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Min. Hole Size: |
0.20 Mm |
| Plating: |
Lead-Free Hal |
| Solder Mask: |
Green Oil |
| Silk Screen: |
White |
| Certificate: |
RoHS ; UL ; Ts16949 ; ISO9001 |
| Type: |
Flexible Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Huizhou Hosond PCB Co. Ltd is a sino-Hongkong joint venture specialized in Automobile Printed Circuit Board (PCB). It's located in Jinji industrial area, Huicheng zone, Huizhou, Guangdong province. Hosond has professional techniques in the power supply PCB \ thick-copper PCB \electronic device PCB and high-frequency PCB. In the meantime of auto PCB, we also supply high precision double-side\multilayer PCB with the basis material of FR-4\ceramics\aluminum\polytetrafluoroethy lene and so on.
Company totally invests 58 million RMB, covers an area of 10000 square meters, equipped with a series of thorough production and quality control equipment which include drilling\lamination\plating\printing and profiling.
Hosond is based on stable innovation skilled sci-tech engineers and well-trained staff, rely on own strong source of funding, in terms of the TS16949: 2009 and ISO9001: 2008 QMS to implement management. Using existing equipment to create unique production technology. It promote company obtain unique production experience of manufacture and electronic makers. With all the good timing, Hosond growing stronger and stronger, achieve long-term development.
So far, Hosond have the comprehensive productive capacity of 2000 square meter double-side and multilayer PCB which as the basis material of FR-4\ceramics\aluminum\polytetrafluoroethy lene and so on.
Our company has been basing on "technology thrive enterprise", pursuing "solidarity\combatant\pragmatic\innovation" enterprise spirit. From the perspective of customers, proving the best service. Hosond also strictly enforce the QMS of TS16949: 2009\ISO9001: 2008 and UL, throughout the engineering development\material supply\technical process\quality control\marking distribute and sales warranty. Guarantee the reliability and security of quality fundamentally.
