Product Specifications
Product Description

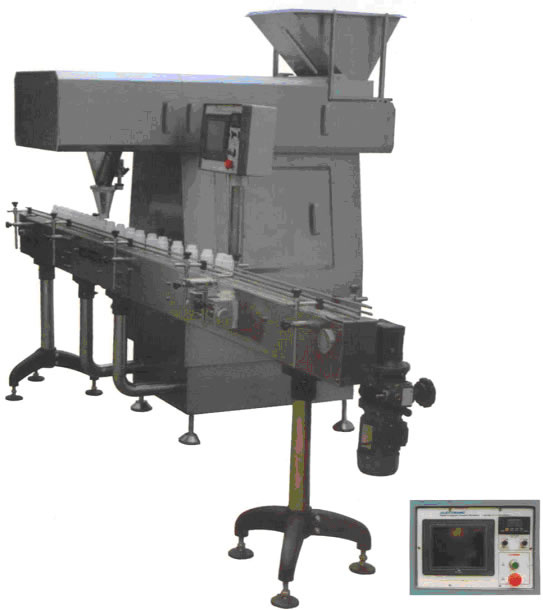

Electronic Tablet&Capsule Counting Machine
Functional Features:
With steady and smooth convey, the conveying system composed by3-leveled shaking plates is suitable for all kinds of tablets and capsules.
The shaking plates are equipped with sensors which can sense the number of the tablets above, thus the conveying speed can be controlled.
When bottles are conveyed to their places, the mouth of the bottles will be covered by the filling mouth, which starts to count the tablets. The filling mouth moves up and down in order to speed the filling process. The filled tablets will not bounce out or block the bottle.
High-speed computer chip is used, which makes our machine 10 times faster than others7.7"colored touched screen and the unchanged imported controlling components are used.
Specifications
Number of tracks
SL12A1: 12set
SL24A2: 24set
Number of groups of output mouth
SL12A1: 1set with the capacity of covering
The mouth of the bottles
SL24A2: 2set with the capacity of covering the mouth of the bottles
Producing capacith
SL12A1: 35-55bottles/min
SL24A2: 70-110bottles/min
Shaking conveying system
SL12A1: 3-leveled shaking sysytem The conveying speed can be automatically recognized and controlled by the sensor
SL24A2: 3-leveled shaking sysytem The conveying speed can be
Automatically recognized and controlled by the sensor
Controlling system
SL12A1: High-speed PLC+7.7"colored human machine interface
SL24A2: High-speed PLC+7.7"colored human machine interface
Power supply
SL12A1: 380V/220V 1.2KW
SL24A2: 380V/220V 1.8KW
Air supply
SL12A1: 5-6bar 100L/min
SL24A2: 5-6bar 200L/min
Conveyer belt
SL12A1: 2400mm 1Rows
SL24A2: 3000mm 2Rows
Weight
SL12A1: 400kg
SL24A2: 650kg
