Electronic Test and Measurement Instrument, Portable Energy Meter Testing Set

Name: Electronic Test and Measurement Instrument, Portable Energy Meter Testing Set
Brand: China-Manufacturer-Directory.com
SKU: 672671851
Availability: InStock
Rating: 4.5 (59 reviews)

Supplier:	Beijing GFUVE Electronics Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	GF312V2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gf312V2:	Portable Three Phase Energy Meter Calibrator
Accuracy Class:	0.05%,0.1%
Application:	Electromagnetic Instrument
Power:	Electricity

Product Description

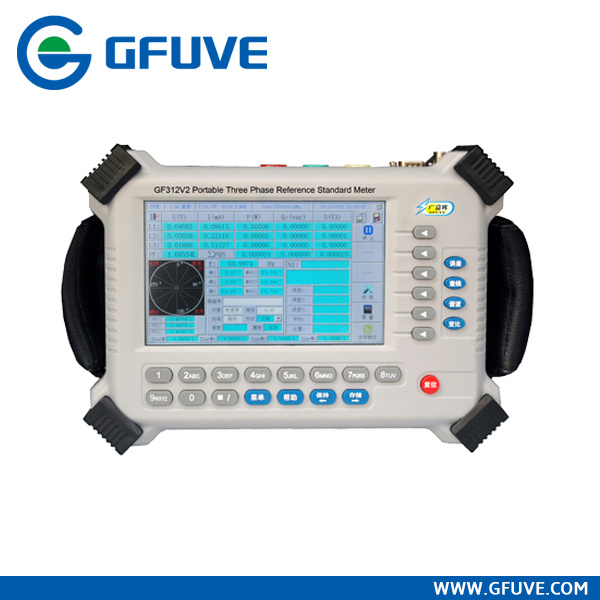

GF312V2 portable three phase multifunction energy meter calibrator is with human oriented design, small configuration and light weight. It is suit for electric power departments, measuring and quality examining departments and electric lab to field use.

Features

High accuracy 0.05%
Screen copy function
Input two pulse signal for master and slave meter synchronously calibration
Large size display screen, direct viewing and convenient
Internal communication port for PC control
Multi power supply ways for different testing occasion
Large capacity storage device for mass memory

Test Voltage
Range	30-560V
Error	± 0.05%
Harmonic	2 nd -- 51 st
Test Current
Range (direct connection)	0.01-10A
Range (clamp CT)	100A 5A, 500A, 1000A, 2000A (option)
Error (direct connection)	± 0.05%
Error (clamp CT)	± 0.2% (5A, 100A ) ± 0.5% (other)
Harmonic	2 nd -- 51 st
Power measure error
Active power (direct connection)	± 0.05%
Active power (clamp CT)	± 0.2% (5A, 100A) ± 0.5% (other)
Reactive power (direct connection)	± 0.1%
Reactive power (clamp CT)	± 0.2% (5A, 100A) ± 0.5% (other)
Energy measure error
Active energy (direct connection)	± 0.05%
Active energy (clamp CT)	± 0.2% (5A, 100A) ± 0.5% (other)
Reactive energy (direct connection)	± 0.1%
Reactive energy (clamp CT)	± 0.2% (5A, 100A) ± 0.5% (other)
Phase angle
Range	0º – 360º
Error	± 0.05º
Frequency
Range	45Hz – 65Hz
Pulse output
Energy constant	1~25000imp/kWh
Pulse ratio	1: 1
Output level	5V
Pulse input
Input channel	2
Input level	5 -- 10V
Input frequency	Max. 100Hz
Display
Resolution	7" TFT color (480× 234)
Function
Vector diagram	Yes
Waveform	Yes
Energy accumulation	Yes
CT ratio test	Yes
Local parameter input	Yes
Wiring emulation	Yes
Self-calibration	Yes
Recorder check	Yes
Data storage	Yes
Data storage qty	5000
External extend memory	Yes
Screen printing	Yes
Communication port	USB/RS232
Communication with PC	Yes
Upload data	Yes
External mini printer	Yes
External keyboard	Yes
Other
Voltage Supply way	External power test lead power
Voltage Supply	45-450V, 50/60Hz
Ambient temperature	-25-- +45degrees
Relative humidity	30% -- 95%
Dimensions (W × H × D) (mm)	245× 168× 70
Weight (kg)	1.8kg

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power analyzer, intelligent digital meter, transducer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
