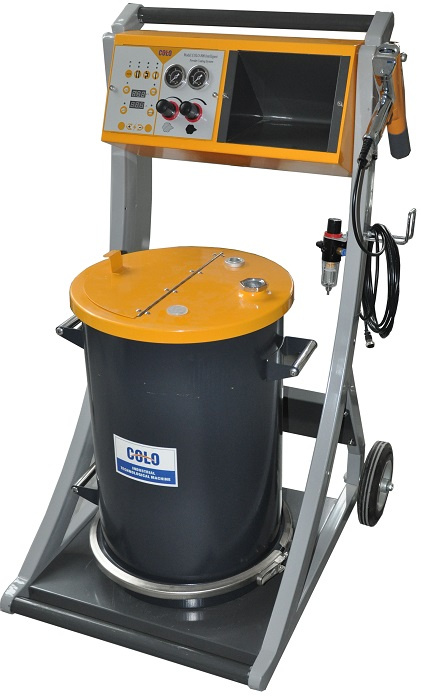

Electrostatic Powder Coating Machine
Product Specifications
| Prod Model: |
COLO-800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Original: |
China |
| Packing Size: |
120X79X73cm |
| Weight: |
55kg |
| Approvals: |
CE Certification |
| Power: |
50W |
| Coating: |
Powder Coating |
| Protection Type: |
IP54 |
| Voltage: |
110/220V |
| Output Voltage: |
0-100kv ( Adjustable) |
| Hopper: |
55L |
| Type: |
Electrostatic Spraying Equipment |
| Certification: |
ISO |
| Method Type: |
Manual |
| Application: |
Hardware Spraying Equipment |
Product Description
China powder coating gun, China powder coating machine, powder coating system, powder coating equipment, powder coating control unitCOLO Powder Coating Systems is a top supplier of powder coating systems and powder coating equipment including automated equipment, spray booths and spare parts for GM02,GM03, CG07, PG1, EASYSELECT, select, K201/K801, C1/C2/PEM-C3/PEA-C3/PEM-C4/PEA-C4, Sure Coat,Vantage,Versa-Spray,Encore famous brand in China.This intelligent powder coating machine COLO-800D
Specification0-100 Digital Adjustable KV
Fully Adjustable Amperage
With three setting program,for flat shape workpiece,complicated shape workpiece,recoating,easy for operation.
Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
Comes with Full Array of Nozzle Assortment.
Field Tested and Proven to operate in the toughest environments.
Comes with different array of delivery systems:
Hope Feed - 55L
Because this system is specially balanced for the maximum spray capability with
the Smoothest Finish Possible.
This model use the CG07 Hopper feeder model trolley and hopperThe process of the coating is like this: The powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns. The guns spray a powder/air mixture onto the workpieces.Character:
Controller has one-touch intelligent operation button good for flat parts, complicated parts and recoat parts
This machine is suitable for the coating of simple, flat workpieces
This machine is suitable for the coating workpieces with complicated shapes
This application mode is suitable for the over-coating of workpieces
Which are already coated.Box feed model with original powder box, it is very easy to change color and develop the working efficiencyTechnical data:Electrical data
Mains input voltage: 220V/110V
Operating frequency: 50Hz /60Hz
Powder: 50W
Output voltage (to the gun): 0-100KV ( adjustable)
Maximum output current (to the gun): 180UA(max)
Protection type: IP54
Approvals: CE CertificationPneumatical dataInput pressure: Min. 6 bar(87PSI)/max. 10 bar(145PSI)
Recommended input pressure: 7 bar(101.5PSI)
Max. Water vapor content of the compressed
Air 1.3 G/M³

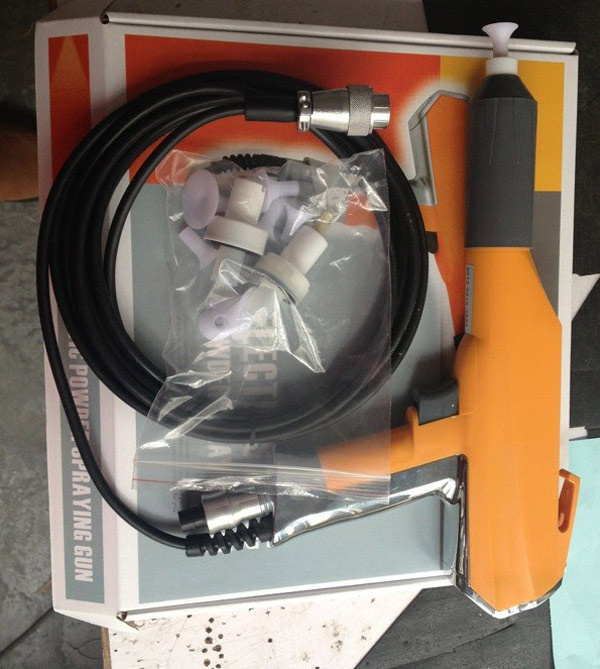

Max. Oil vapor content of the compressed air 0.1 mg/m³Powder coating gun with nozzles
DimensionsCarton size: 120x79x73cm G. W: 55kg
CE cetificatePopular all over the world.
Powdercoating is a type of coating that is applied as a free-flowing, drypowder. The main difference between a conventional liquid paint and apowder coating is that the powder coating does not require a solventto keep the binder and filler parts in a liquid suspension form. Thecoating is typically applied electrostatically and is then cured underheat to allow it to flow and form a "skin". The powder may be a thermoplastic or a thermosetpolymer.It is usually used to create a hard finish that is tougher thanconventional paint. Powder coating is mainly used for coating of metals, such as "whiteware," aluminium extrusions, and automobile and bicycle parts. Newer technologies allow other materials, such as MDF (medium-density fibreboard), to be powder coated using different methods.
The powder coating process involves three basic steps:
- Part preparation or the pre-treatment
- The powder application
- Curing
Hangzhou Color Powder Coating Equipment Co., Ltd. is leading manufcturer of powder coating equipment in China. Due to the great location, we produce the latest products. "Quality first, innovation and valuable services" is our endless purpose. Thanks to tireless efforts of all staff, we have developed into a manufacturing company specializing in the research, development, production, sales and service of electrostatic powder coating equipment. Our main products are electrostatic spray guns, high pressure modules, circuit boards, famous gun spare parts, and automatic reciprocating machines, spray booth, curing oven, powder coating line. We will rely on our advanced technology, strict quality management system and strong sense of responsibility to make our company become the top one in the industry.
Our machines can spray well in a variety of shapes, which efficiently solves the penetration problems with corners and recesses. Moreover, our machines are easy for operation because of the intelligent design.
We will make unremitting efforts to develop the electrostatic powder coating industry. Due to advanced production and test equipment, high technology, excellent R&D and the efforts of staff, we annually produce more than 5, 000 sets of electrostatic generators, and more than 30, 000 sets of circuit boards, modules, and spray guns. At same time we design and produce kinds of spray booth, curing oven and complete powder coaitng line. Our goods are not only sold in local market, but also successfully exported to Mexico, Colombia, Peru, Canada, the United States, Brazil, Russia, Poland, France, Germany, Italy, Egypt, Vietnam, India, Saudi Arabia, South Africa and other countries, enjoying a great reputation from different clients.
