This is a powder coating line we specially designed for aluminium profiles with a long and thin shape.
Design Basis
1. Product need to be coated: Aluminium profiles
2. Max. Hanging size for each hanger: 7000*200*1800mm
3. Design conveying speed: 1.2m/min (can be adjusted from 0.8 to 2.5m/min)
4. Coating method: Auto powder spraying
5. Heat source: Natural gas
6. Design description:
6.1 According to the size of aluminium profiles, we design the pretreatment to be immersion tank type with 9 stage processings.
6.2 Then the pretreated workpieces will be conveyed to drying furnace for water removal on their surface. The drying furnace is of tank shape with a top-door design for easy access of pre-treated workpieces.

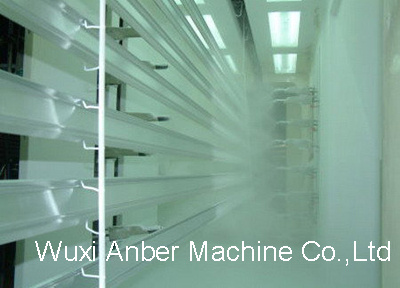

6.3 After drying, the workpieces are ready for powder particle adhesion. Please manually feed them on auto powder coating line. For a better painting result, the spray booth, waster powder recycling system, reciprocator adopts advanced equipments in China through our careful selection. And the spraying guns, both auto and manual are imported from foreign famous company for a longer service life. Then these workpieces will be sent to gas-fired furnace tunnel to let powder melt into a smooth coating.
Structure characteristics
1. Immersion tank type pretreatment system (Cement tanks are under buyer's plant construction)
2. Pretreatment crane: Special designed for easy operation. Its moving track should be embeded by buyer according to supplier's drawing.
3. This drying furnace is designed to with a forced circulating unit for heated air.
4. Powder spraying booth.
5. Recycling system for waste powder
6. Variable frequency electrical reciprocator with a stroke of 1.8m
7. Stainless steel powder barrel
