Product Specifications
| Prod Model: |
LE40XZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specification(Mm): |
40*40*120 |
| Mounting: |
Flush, Non-Flush |
| Sensing Distance: |
15mm, 20mm, 25mm.40mm |
| Ambient Temp.: |
-25c~+70c |
| Housing Material: |
PBT |
| Connection: |
M12 Connection, Terminal Connect |
| Supply Voltage: |
10-30VDC, 20-250VAC, 20-250VAC/DC |
| Housing Shape: |
Rectangular |
| Frequency: |
DC3/4: 300Hz, 500Hz; DC2: 300Hz, 500Hz; AC2:20Hz |
| Output: |
NPN, PNP, DC, AC Are Optional |
| Measuring Principle: |
Inductive Type |
| Voltage Type: |
DC/ AC Optional |
Product Description
W e l c o m e t o V I s I t L a n b a o! ! !

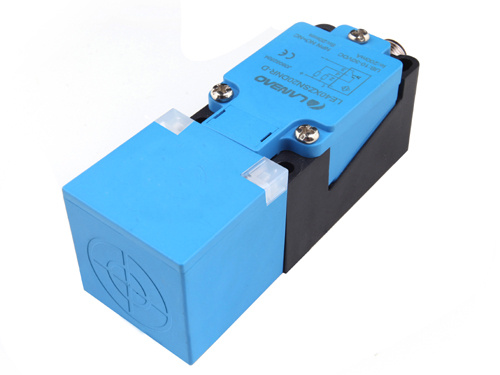

Elevator Industry Inductive Sensor ----LE40XZ
Feature:
Multi-dimension optional, various specifications.
Specific IC design, more stable performance.
Short-circuit protection and reverse polarity protection.
Used for position limiting and counting in elevator industry.
Advantage of Lanbao:
1. Operating for 17 years in Sensor market. Lanbao offers customers high quality and reliable products with most up-to-date technology and top design.
2. 2014, Lanbao are awarded the honor by goven: "National key environmental protection practical technology and demonstration projects".
3. Lanbao took part in all kinds of exhibitions all over the world.
For example: 11/2014, China International Industry Fair.
11/2014, SPS/ IPC/ DRIVES Electric Automation.
Lanbao are known by customers and users.
4. Lanbao provides customers conventional products.
Besides the current products, we also can supply made to measure products to your sample.
5. All of Lanbao sensors through the CE certification.
6. Our products are extremely popular in China, overseas markets and all over the world!
7. Last but not least, all the products reach standard concerning product quality and environmental protection.
Note:
Customize for cable length, housing material and shape.
Any query, just feel free to let us know.
|
Elevator Industry Inductive Sensor ----LE40SZ, LE40XZ |
|
Product model |
LE40SZ |
LZ40XZ |
|
Specification(mm) |
flush, non-flush |
flush, non-flush |
|
Sensing distance |
15mm,20mm,25mm,40mm |
15mm,20mm,25mm,40mm |
|
Output |
DC 3wires |
NPN NO,NPN NC;
PNP NO,PNP NC. |
NPN NO,NPN NC;
PNP NO,PNP NC. |
|
|
DC 4wires |
NPN NO+NC
PNP NO+NC |
NPN NO+NC
PNP NO+NC |
|
|
DC 2wires |
NO, NC |
NO, NC |
|
|
AC 2wires |
NO, NC |
NO, NC |
|
|
AC/DC 2wires |
NO, NC |
NO, NC |
|
Supply voltage |
10-30VDC, 20-250VAC, 20-250VAC/DC |
10-30VDC, 20-250VAC, 20-250VAC/DC |
|
Frequency |
DC3/4:300Hz,500Hz
DC2: 300Hz, 500Hz
AC2: 20Hz |
DC3/4:300Hz,500Hz
DC2: 300Hz, 500Hz
AC2: 20Hz |
|
Ambient temp. |
-25ºC~+70ºC |
-25ºC~+70ºC |
|
Protection degree |
IP67 |
IP67 |
|
Housing material |
PBT |
PBT |
|
Connection |
M12 connector |
M12 connector, terminal connect |
|
Certification |
CE, UL, CCC |
CE, UL, CCC |
|
