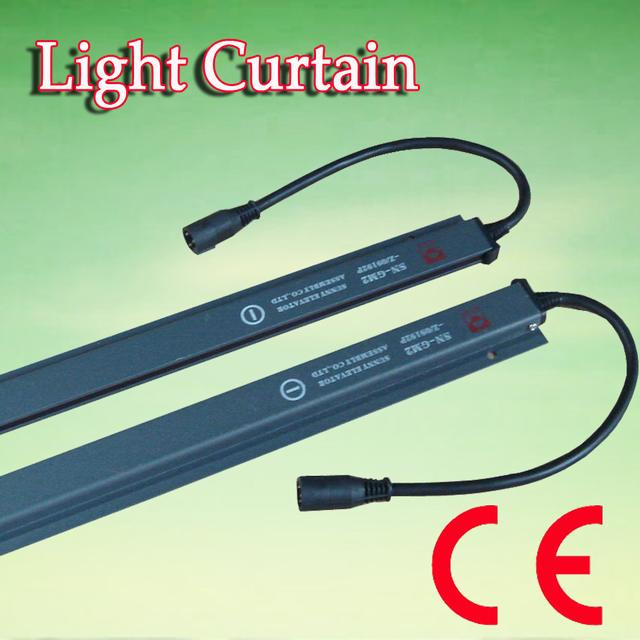

Photoelectric Beam Detector Elevator Wireless Light Curtain
Model Name: SN-GM3-Z/09192P
Middle-open Light Curtain
Description
1. Patent Product
2. Elevator light curtain 9mm
3. Real 64 diodes192 beams
4. CE UL CCC certificate
Sunny wireless light curtain SN-GM3 series is our new invention. It greatly solved the problems caused by inner cable break. According to rough statistics, 50% elevator light curtain problem is caused by connecting cables. Long time stretching moving action will cause the break of the cables, which leads to the failure of light curtain.
SN-GM3 series wireless light curtain is a perfect solution to this hidden trouble, it adopts a total new structure and is suitable for most elevator brands. It features easy installation, energy saving and much longer life time.
SN-GM3 series wireless light curtain has obtained National Invention Patent and Technology Patent.
Specification
Please check below.
About Us
Shanghai Sunny Elevator Assembly Co., Ltd, found in 1992, is a 21-year professional manufacturer specialized in designing and producing Opto-Electro-Mechanical products. Our main products are elevator light curtains, photoelectric switches and elevator buttons. The company has a complete set of equipment and instruments in terms of mechanism, sheetmetal, plastics, moulding, electric appliance, together with SMT line, which are respectively used in key parts of production, assembling, and quality detection. Such full range of equipments is rare in the field and greatly increases our production flexibility and R&D capabilities. Twenty years' experience in the elevator industry ensures us to provide our clients reliable products, leading-edge technology and perfect after-sales service.
Shanghai Sunny has been entitled Shanghai high-tech enterprise for nine consecutive years and our self-developed SN-GM1 series infrared light curtain obtained national invention patent(NO. ZL01105213.9). It also obtained UL Certification(file No. E230770) in 1992, and CCC Certificationin 2010, which are unique among our competitors. Our light curtain and photodiode switch series both have been authorized CE certification. In 2007, the platform screen door in Shanghai Metro line and its northen extension of line one initially adopted infrared light curtain device provided by our company. Our long time clients include Hyundai (served as OEM), Hitachi, Otis, Mitsubishi, KONE, Guangri Elevator, Wittur etc.
|
Detect distance |
0---3000mm |
|
Top beams |
1865±5mm |
|
Bottom beams |
45±5mm |
|
No. of beams |
192 |
|
Diodes distance |
60mm |
|
Vertical tolerace |
±10mm |
|
Horizontal tolerance |
±8mm |
|
Non-parallelism |
≤±5º |
|
Scan rate |
45ms 22 times/S |
|
Response time |
≤80ms (relay output) |
|
Alarm delay |
25±5s |
|
Anti-light interference |
≤100,000 lux (sunlight) |
|
Power voltage |
85-264VAC 60/50Hz |
|
Rated power consumption |
2 VA |
|
Relay output |
120VAC 1A; 24VDC 1A |
|
Dielectric intensity |
1500 VAC 1 minute |
|
Temperature |
0ºC ---- 45ºC |
|
EMC |
accord with GB/T17626 requirements |
|
Vibraton test |
Amplitude 0.19mm 20 minutes |
|
IP grade |
IP63 light curtain IP65 controller box |
|
Charge and discharge |
≥500 times |
Shanghai Sunny Elevator Assembly Co., Ltd., founded in 1992, is a 20-year experienced professional manufacturer specializing in designing and producing opto-mechanical products. Our main products are elevator light curtain, photoelectric switches and elevator buttons. Our company has a complete set of equipment and instruments in terms of mechanism, sheet metal, plastics, moulding, electric appliance, together with SMT line, which are respectively used in key parts of production, assembling and quality detection. Such full range of equipments is rare in the field and greatly increases our production flexibility and R&D capabilities. Twenty years' experience in the elevator industry ensures us to provide our clients reliable products, leading-edge technology and perfect after-sales service.
Since 2001, Shanghai Sunny Elevator Assembly Co., Ltd. has won the title of "Shanghai High and New Technology Enterprise" for nine successive years. The light curtain SN-GM1 series products have passed the certifications of UL, CE and 3C, and light curtain core technology has obtained national invention patent ( NO. ZL01105213.9). We are also the first to pass the certification of light curtain 3C in China. Our level detecting, reflective and diffuse photoelectric switch products have also the certification of CE. Standardized, general and energy-saving door linkage mechanism has obtained national utility model patent. At the beginning of 2010, the invention of wireless infrared light curtain obtained national invention patent application, which proves that our company has stood in the worldwide forefront in the field of elevator light curtain technology.
Shanghai Sunny Elevator Assembly Co., Ltd. Has established friendly business relationships with worldwide elevator industry, and its products have been exported to over 50 countries in Middle East, Europe, South Asia, south America and north America. Looking into the future, we are full of confidence and will shoulder heavy responsibilities.
In the spirit of "Lasting Quality, Persistent Innovation, Credit Supreme", Shanghai Sunny provides service for all friends forever.
