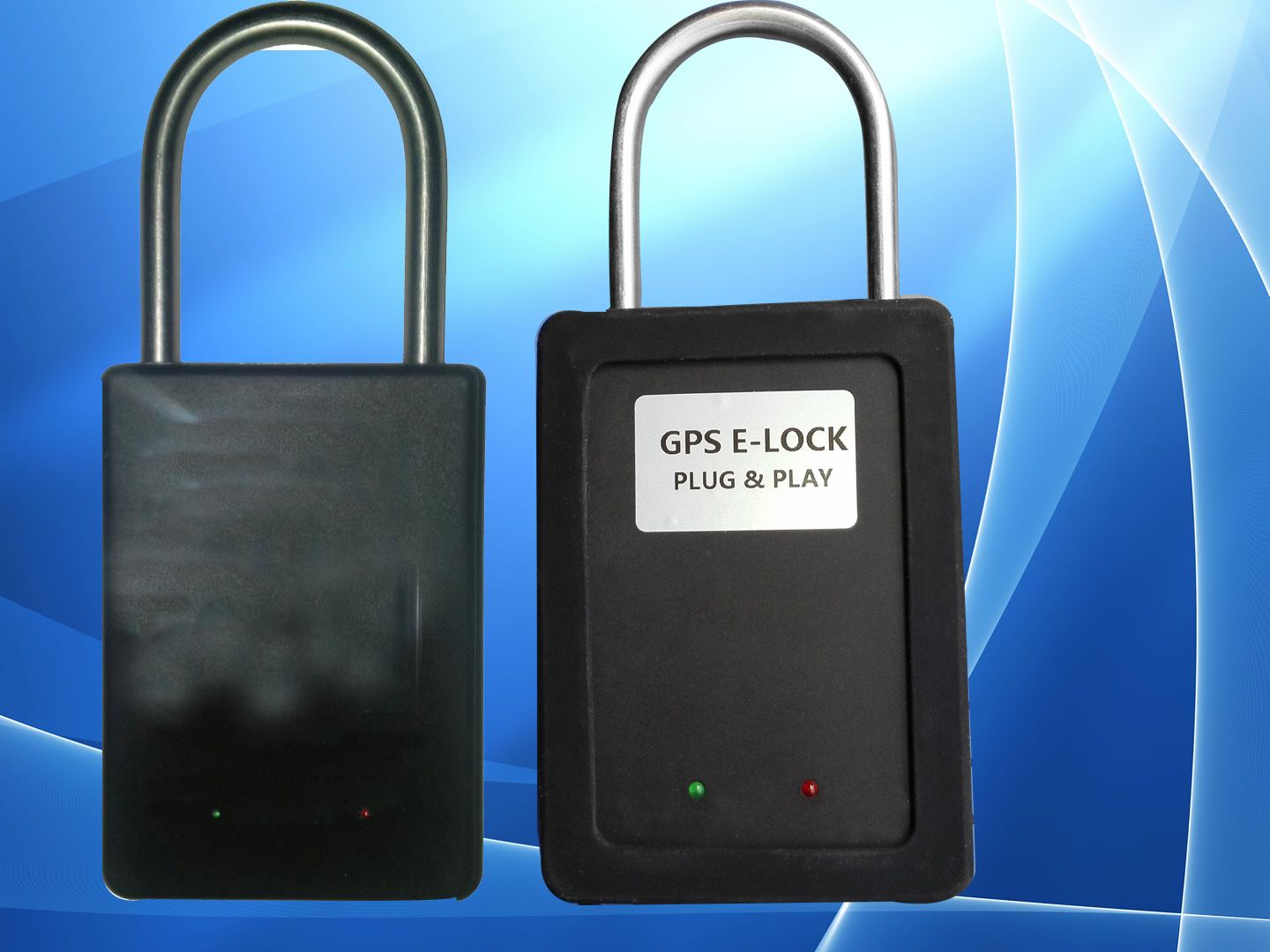

Elock GPS Tracking Device for Containerized Vehicle
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CIF |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal,Money Gram,Western Union |

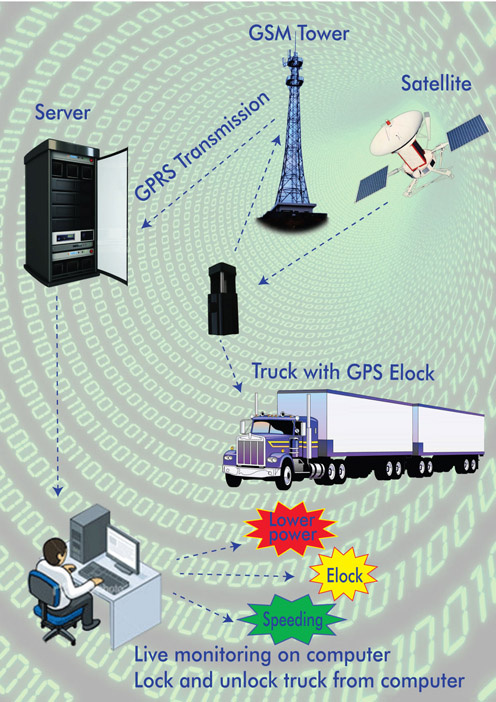

Brief info:GPS elock is a tracking unit with locking feature which is applied to trucking fleet. Whether for containerized vehicle or tanker vehicle, it's a perfect way to track realtime and control of the safety of goods. With built in battery and antenna plug waterproof covering, it's a play and plug GPS tracking system, convenient for any vehicle that require tracking and door status monitoring in transit. Highlight features:WaterproofBuilt in antennaPlug and playHigh capacity built in batteryLock truck door, power alert and abnormal door open alertOutdoor design: Waterproof, salt spray, shock-proof designRecyclable: Environmental friendly and can be re-usedStandard features: Wireless electronic lock control Real-time status detecting and alarming Embedded with GPS capabilities Battery operated, plug and play SMS parameters configuration Store records: large-capacity battery , power down without losing the memory of operation records Visual indication: LED indicates power and working status: Robust design: High strength lock, lock bar and lock rope design Explosion safety: Lock fully sealed design and anti-explosion Lasting power: high-capacity rechargeable lithium battery and low power circuit design to ensure long-time use outdoors Outdoor design: Waterproof, salt spray, shock-proof design Recyclable: Environmental friendly and can be re-used Tracking platform features Realtime tracking Tracing route Mileage calculation Setting: Over speeding and tracking interval setting, Polygon Geofence setting and alert Multiple reports: speeding report, mileage report etc Lock operation: Seal Unseal Check lock status Alarming Overspeeding alarm GPS low power alarm Lock alarm Alarm handling Tracking software: Webbase software/Client software/Android phone appSpecifications
| 100 x76 x 30mm (Lx W x H) ( 4*2.3*1.2in) |
Lock rod | 8mm (diameter) |
Lock rope | 85mm (height) (70mm when in lock status) |
Weight | 520g (570g with covering) (18oz) |
Lithium battery | 4AH -rechargeable |
Working current | 100mA (working) 0.5Ma (Standby) |
Wireless communication | GPRS/SMS |
Built-in antenna | Omnidirectional |
Continuous working time | 40-48hrs (Every 1min tracking interval) |
Protection rate | IP67 |
Lifetime | Over 3 years |
Operating temperature | -25ºC to 60ºC |
Relative humidity | ≤90% |
Air pressure | 86KPa~106KPa |
Package includes:Package includes:1 x E-lock with protective plastic covering1 x 220V charger1x Elock with built in battery and GSM/GPS module1 x CD or USB disk with electronic user manual1 x CD or USB disk with electronic user manual

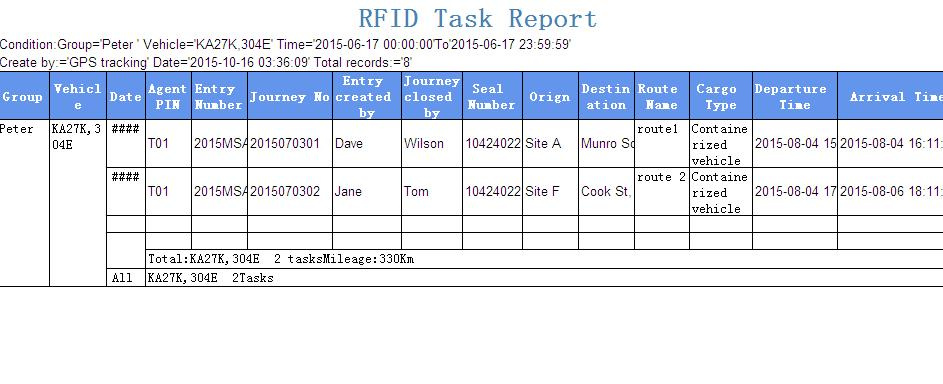

Screenshots of platform tracking and reports
Prod Model: |
EG08-5A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
GPS Size: |
125*98*40mm(4.9*3.9*1.6in) |
GPS Weight: |
0.35kg (12oz) |
Elock Size: |
170 * 72*77mm (6.7*2.8*3.0in) |
Elock Weight: |
1000g (35.3oz)) |
Type: |
GPS Tracker |
Use: |
Automotive |
Screen Size: |
No Screen |
Chip: |
Huawei |
Brand: |
Www |
