Product Specifications
Prod Model: |
SBC21 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application Field: |
Industrial Control |
Processor Type: |
Samsung |
Stratification: |
HardWare Layer |
Range Of Application: |
General |
Certification: |
RoHS |
Type: |
Embedded SBC |
Machine Word-Length: |
32 |
Instruction Type: |
RISC |
Bus Type: |
Arm |
Kernel: |
Linux |
Product Description
Description:
Boardcon's EM210 integrates a high-performance, low-power 1GHz Samsung ARM Cortex-A8 S5PV210AH with Samsung K4T1G164QF chipsets and Samsung K9F2G08, delivering best performance-per-watt for communication, healthcare, automation, transportation, multimedia advertising, high performance POS machine, and surveillance applications.

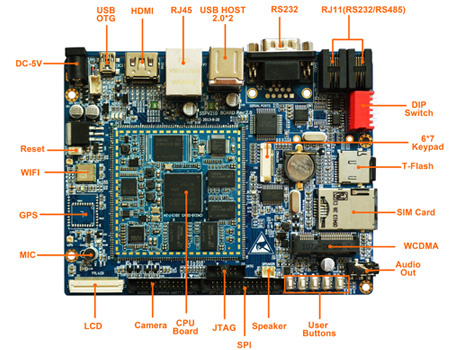

The compact EM210 offers a rich set of peripherals and interfaces including Ethernet, USB Host &OTG, Camera, HDMI, Serial ports, Audio, LCD, Keypad, T-Flash, Buttons and etc. The EM210 brings a flexible array of communications options including Wi-Fi, WCDMA and RFID. A SIM card slot is also included. Supporting Linux 2.6.32, WinCE6.0 and Android 4.0, the EM210 can deliver a variety of features and APIs that allow developers to highly customize their system designs in the low-profile and fully-configured embedded devices.
The board has complete electronic documentation, schematics, demo applications, and third party industry-standard C compilers and embedded development environments for evaluation. We are sure to have the right single board computer for your applications.
Highlights:
Processor: Samsung ARM Cortex-A8 S5PV210AH, up to 1GHz
Memory: 512MB DDR2
Flash: 256MB SLC NAND Flash
Supporting 2D graphics acceleration, up to 160Mpixels/s, maximum resolution 8000*8000
Supporting 3D graphics acceleration(Power VR SGX540)
Monolithic integrated power management chip
Supporting 4.3 inch, 7 inch, 10.1 inch resistive/capacitive touchscreen, 15 inch SAW touchscreen
One Key to update Boot-loader, Kernel, Yaffs and one Key to configure parameters of
Linux
3.1Mega pixels Camera
Supporting Cramfs/ramfs/etx2/fat32/nfs/yaffs
System parameters can be saved in REGEDIT, and residual Flash can be read and written
The system can be updated via USB interface.
Supporting Android 4.0, Linux 2.6.32 and WinCE6.0
Optional module: GPS, WCDMA, Camera, WIFI, RFID
Dimensions: Carrier board-108mm x 141mm; CPU board- 60mm x 60mm
Boardcon embedded design established in 2006, is an Original Design Manufacturer dedicated to providing high quality ARM core based industrial Computer-on-Module, Single Board Computer and Evaluation board, Boardcon eigineer has been developing embedded computing solutions for the OEM market over 5 years. The services are hardware design, driver development, BSP porting and BSP development. On the operating system side Boardcon specializes in Windows CE and embedded Linux. Our commitment to excellent products, low prices and exceptional customer support has encouraged our business to flourish in a very competitive marketplace. We offer a wide variety of ARM bassed SBCs, computer -on-module and peripherals that satisfy most embedded project requirements.
Our engineers are also enthusiastic about new projects and take pride in new designs that are on the cutting edge of the embedded marketplace. Custom designs are a large part of our business and, with our experience team of embedded engineers, we can provide our client a custom solution at a price that competes with an in-house design.
What is computer-on-module?
Computer-on-module are tiny single-board computers, designed for attachment as a "component" into a carrier board developed by the user, according to his application-specific needs.
Boardcon's product line comprising computer-on-module based on ARM processor architectures. Each module covers distinct range of price, performance and features, to create a line of comprehensive solutions for the diverse requirements of various industry sectors.
Features and benefits of Boardcon's computer-on-module All-in-one single board computers with CPU, memory and peripherals. Based on ARM processor architectures. Very small size.
NAND Flash Disk, implementing large on-board storage at low cost. Comprehensive software packages, drivers and support for all major operating systems.
Built-to-order manufacturing process. Users order and pay for only those functions actually needed, further reducing the user's costs. Boarcon will continues to expand its computer-on-module product line with additional products and features to meet the customer requirement.
