Product Specifications
| Prod Model: |
X3/X3-W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| VGA Resolution: |
800*600/1024*768/1366X768/1440*900/1280*1024 |
| HDMI Resolution: |
1280*720/1920*1080(Max) |
| Dimension: |
15.7*10.7*2.5cm |
| Supporting System: |
Linux, Windows XP/ 2003 Server, Win 7/Vista |
| CPU Type: |
PC Share/Terminal |
| Max. CPUs: |
1 |
| Supporting Memory Capacity: |
RAM 1g |
Product Description
SHAREVDI X3 Product Features
ARM A9 Based SOC, all solid-state design, no moving parts, no fans
Can connect to | Linux OS | Windows Server 2003 / 2008 | Windows XP, Windows 7
All types of USB Flash Drives support
Option for Local Browser, Media Player, Libre Office, Voip Softphone, Skype, PDF Reader & other customizable Linux application as per your needs
Support graphics programs with fast speed.

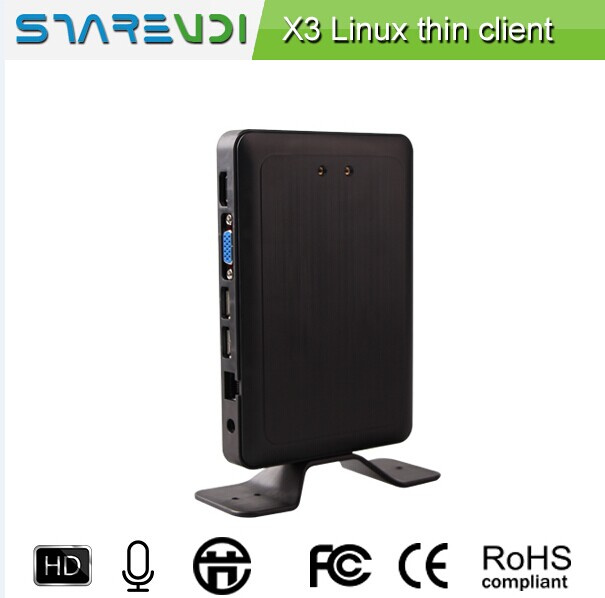

SHAREVDI Linux OS Cloud Computer X3
SAVINGS AND BENEFITS
90% on maintenance cost as compared to regular CPU due to SOC (system on chip)
90% on power consumption cost due to 5V/2A adapter as compared to regular 400'w SMPS
60% on cost as compared to regular computer CPU box price
Space Saving as it can be mounted behind any LED / LCD screen or on any Wall / Table
Security | Data centralization | Easy administration and management | Increase productivity
| Spec | X3 |
| Framework | ARM-A9 |
| Processor | Dual Core 1GHz |
| RAM | 512MB |
| Graphics Chips | Graphics Card Type MALI400 1080P |
| OS | Embedded linux kernel |
| Video | VGA resolution | 800*600/1024*768/1366*768/1440*900/1280*1024 |
| HDMI resoltion | 1280*720/1920*1080(MAX) |
| USB port | USB2.0 port(×3) |
| Video | 1080P HD |
| Upgrade | Firmware Update |
| Physical Dimensions (mm) | 164×116×32MM |
| Weight(G) | 200 |
| Power supply | DC 5V/2A |
| Energy consumption | Static Power less than 5W,Maximum Power less than 7.5W |
| Video | Hardware-accelerated video support for most media formats
on stand-alone media player applications and browser-based video |
| Protocol | RDP 7.1 |
| External port | HDMI, VGA, USB*3, RJ45, Power supply port,Switch port |
| Working Temperature | -20ºC ~50ºC |
| WIFI | Optional |
Shenzhen Sharevdi Co, . Ltd
About us
Shenzhen Sharevdi Co, . Ltd (hereafter referred as "Sharevdi", ) with registered capital of 10 million RMB, has been a high-tech enterprises engaged in the field of cloud computing since 2006. It headquartered in Shenzhen, where it is known as "the smart manufacturing city". We have subsidiaries distributed in Beijing and Wuhan, as well as many joint partners in many other countries, such as USA, Italy, Germany, and India.
Our team has specialized in cloud computing field more than a decade, consisting of three major parts: R&D Team, the marketing team and manufacturing team. R&D team is very professional and experienced in software and hardware of VDI; Manufacturing team excels in cost-saving and quality control; Marketing team is characterized as innovation and high efficiency. We have obtained more that a hundred of patents and certifications. Sincerely we believe that we can provide one-stop cloud desktop hardware and software solutions for both domestic and international customers.
Main products:
Our products mainly cover three parts: ARM cloud terminal, X86 Thin Client ( mini computer ) and desktop visualization cloud software, which are wildly applied to many industries such as, government, finance, education, manufacturing, office and so on. Particularly the X series employed the ARM architecture and K Series employed X86 architecture, have won lots popularity from the global market. OEM&ODM service can be also offered for all customers. Our latest thin client X5 will be released soon in 2015 and definitely will set fire on the cloud computing industry.
Company qualification
The marketing office of Sharevdi is located at Huaqiang North Electronic Technology Building, the world's largest distribution center for electronic products. Our marketing team is young and dynamic, most members have worked on cloud computing industry for more than 5 years. Our factory is located at golf avenue, guanlan town, longhua district, Shenzhen, covers more than 1, 000 square meters, including testing &aging room, assembly area as well as warehouses. In order to meet the requirements of our customers and guarantee the quality of our products, SMT and embedding chipset & posts are completed by FOXCONN, and complete testing and assembling facility are also supported. We spare no efforts to make every product perfect and regard customer needs top priority.
Having been aware of the very importance of continuous research and innovation for IT enterprises, Sharevdi adheres to the road of independent research and development and cultivates a professional research team specializing in the embedded OS computing terminals for strong technical support, among which some are kernel &underlying hardware engineers. To offer sufficient talent for our company and the industry, . Sharevdi managed to achieve long-term cooperation agreement on employment practices and other aspects with a number of well-known universities in China, including Huazhong University of Science and Technology, Wuhan University and other agencies. We are very proud and honored to be the project practice base.
Company Culture
'Make the simple simpler' is our product idea. Our goal is to make the lifestyle of our customers
Smarter, easier and better. With unparalleled strength, strong technical support, perfect quality as well as first-rate service, Sharevdi firmly believes the excellent computing terminal products and visualization smart tech solution can be offered to you!
