Product Specifications
| Prod Model: |
Cortex-A8 CES-EDU210 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

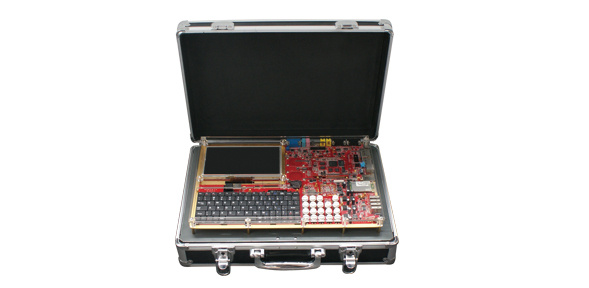

CORTEX-A8 CES-EDU210 Parameters:
Hardware:
Samsung S5PV210,Cortex-A8,Frequency is 1GHz
1GB DDR2 SDRAM, Samsung K4T1G084QQ
1GB, NAND FLASH Samsung K9K8G08U0A
PMU: MAXIM, MAX8698C
Support VGA/LVDS/TFTMulti-display functions
Platform with 7-inch LCD touch screen, four-wire resistive touchscreen
Audio stereo input/ output, IIS signal, Wolf WM8580A
4 channels USB HOST 2.0, 1 channels USB OTG2.0, 4 channels serial
1 channels HDMI 1.3 HD Interface
4 SDIO ports for MMC / SD,WiFi
DM9000AEP,10M/100M Cable Interface
2*8 Keyboard scan surface
Internal real time clock (with back-up lithium battery)
Support ZTEs MG3732,MC8630,AD3812V2(minipci)
Support WiFi module, built in 802.11 b/g/n
Support GPS, the use of SIF III, can be globalpositioning
Support camera
DC 12V power supply
Software:
Google Android 4.0 Windows Embedded CE 6.0 R3 Linux 3.2.0
Google Android 4.0
Kernel:Linux 3.0.8
System boot:U-boot-1.3.4
Debugging too:DNW 1.01
Cross compiler:arm-2009q3
File System:AMDISK,YAFFS2
GUI:Google Android 4.0
3G communication module:Support text messages, internetfunctions
WiFi module:Support 802.11b/g
Bluetooth module:Support Bluetooth communication
GPS module:Support SIF III Global Positioning
Camera module:Support CMOS driver
Ethernet module:10M/100M adaptive network portdriver
HDMI Display:Support HDMI output
AUDIO driver:Support AUDIO
LCD Display:Support LTE480 WVGA(800*480)
TOUCH driver:Four-wire resistive touch screen driver
I2C driver:Audio, Camera, HDMI with the I2C driver to communication
USB HOST driver:Support HOST function, canconnect U disk,Mouse,Keypad
USB OTG driver:Support device function
Keypad driver:Support 8*8 button scanning
SD/MMC interface:Support high speed SD/MMC Card
RTC driver:Support real time clock
MFC driver:Multi-Format Video Codec
UART driver:Serial communication
JPEG driver:JPEG CODEC
2D driver:2D hardware acceleration
3D driver:3D hardware acceleration
Windows Embedded CE 6.0 R3
BSP:Windows Embedded CE 6.0 BSP
Bootloader :V210_USB.BL2.bin(USB boot code, no sourcecodes) eboot.nb0
Boot Mode:NandFlash boot
Debugging Tool:DNW V0.6
Wireless WI-FImodule:Support 802.11b/g
Wireless Bluetoothmodule:Support Bluetooth communication
GPS module:Support SIF III Global Positioning
Camera module:Support CMOS driver, Support 1080 Phardware encoding
Ethernet module:10M/100M adaptive network port driver
HDMI Display:Support HDMI output
AUDIO driver:The main chip is Wm8580
LCD Display:Support LTE480 WVGA(800*480)
TOUCH driver:Four-wire resistive touch screen driver
TV OUT:Support analog output
VGA driver:Support 1024*768 and 800*600
I2C driver:Audio, Camera, HDMI with the I2C driver tocommunication
USB HOST driver:Support HOST function, can connect U disk,Mouse,Keypad
USB OTG driver:Support device function
Keypad driver:2*8 and 8*8 scan keypad
SD/HSMMC driver:Support high speed SD/MMC Card
RTC driver:Support real time clock
MFC driver:Multi-Format Video Codec
UART driver:Serial communication
JPEG driver:JPEG CODEC
2D driver:2D Hardware acceleration
3D driver:3D Hardware acceleration
Linux 3.2.0
Operating system :Linux 3.2.0
Kernel:Linux 3.2.0
Boot loader:U-boot-1.3.4
Cross compiler:arm-2009q3(GCC 4.4.1)
File system:BusyBox1.19.2,YAFFS2
GUI:QT-4.8.4
SD/MMC Interface:Support high speed SD/MMC Card
Ethernet module:10M/100M Adaptive network port driver
LCD Display:Default resolution 800*480
VGA driver:Support resolution 1024*768
USB HOST driver:Support U disk,USB mouse, USB keyboard
UART driver:Four UART
TOUCH driver:Four-wire resistive touch screen driver
RTC driver:Real time clock
Keypad:Scan button
WiFi:Support 802.11b/g
