Wuhan Seifree Technology Co., Ltd. >> Embedded Type Mechanic Field-Assembly Connector

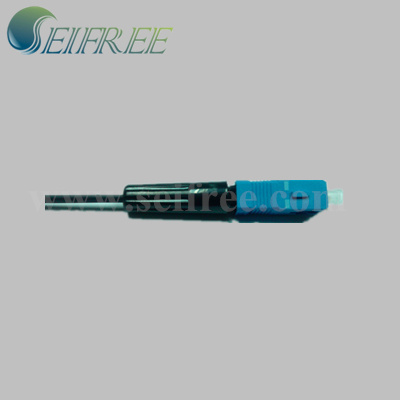

Embedded Type Mechanic Field-Assembly Connector

Name: Embedded Type Mechanic Field-Assembly Connector
Brand: China-Manufacturer-Directory.com
SKU: 698166412
Availability: InStock
Rating: 4.6 (140 reviews)

Supplier:	Wuhan Seifree Technology Co., Ltd.
Price:	US $ 0.7-1.5/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	Embedded Type Mechanic Field-Assembly Connector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	Mm(Om1/Om2/Om3)
Transmission Medium:	Single-Mode
Structure:	SC
Ferrule Endface:	APC
Number Of Cores:	Single-Core

Product Description

Embedded Type Mechanic Field-Assembly Connector

Features
1.Price-Competitive
2.Low Insertion Loss & PDL
3.Factory-terminated and Tested
4.Fiber Options: G652D /G657A/OM1/OM2/OM3 and PM Panda Fiber
5.Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
6.Polishing Options: PC/UPC/APC
7.Feature Connector with Ceramic Ferrules

Applications
1.Access Network
2.Telecom/CATV Systems
3.FTTx

Embedded Type

Type: SC, FC
Insertion Loss: < 0.3 dB
Return Loss: ≥ 45dB
Tensile Strength: ≥ 5kg

Optical Performance	Insertion Loss	1310nm	≤ 0.3 dB	NA
Optical Performance	Return Loss	1310nm	NA	≥45dB(PC), ≥55dB(APC)
Mechanical Performance	Interchangeability	Random Connection	<0.2 dB	<5 dB
	Vibration	5-50Hz, 1.5mm, Vibration Amplitude	<0.2 dB	<5 dB
	Tensile Strength	6kg	<0.2 dB	<5 dB
Environmental Performance	High Temperature	+85ºC, 96H	<0.2 dB	<5 dB
	Low Temperature	-40ºC, 96H	<0.2 dB	<5 dB
	Temperature Cycling	-40ºC~ +85ºC 5Cycles	<0.2 dB	<5 dB
	Humidity	+40ºC, 90%~95%, 96H	<0.2 dB	<5 dB

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
