Product Specifications
| Prod Model: |
AT3300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Uvss Scanner Advantage: |
No Need to Park Vehicle |
| Uvss Scanner: |
Auto Digital Line Scan |
| Uvss Scanner Image Display: |
Whole Image |
| Uvss Scanner Operator: |
Can Zoom and Save Image |
| Uvss Scanner Size: |
1200*350mm |
| Uvss Scanner Illumination: |
LED |
| Uvss Scanner Operating Temperature: |
-40 Degree to +70 Degree |
| Uvss Scanner Io Contorl: |
2 Units for Double-Way |
| Uvss Scanner Host: |
Normal Computer |
| Uvss Scanner Display: |
22 Inch LCD |
| Type: |
Monitoring System |
| Feature: |
Waterproof / Weatherproof |
| Sensor: |
CCD |
| Horizontal Resolution: |
540tvl |
| Technology: |
Line CCD Camera |
| Application: |
Under Vehicle Inspecting Explosive |
| Kind: |
Under Vehicle System |
Product Description
Embedded Under Vehicle Surveillance Scanner System-Model: AT-3300Vehicle security controat the entrance
Features of UVSS scanner:1. Auto digitaline scan, high-resolution undercarriage imaging.
2. High automation, easy to be used.
3. Applicable to variety of vehicles, wide vision.
4. Test wilbe completed during the vehicle maneuvers without stopping, adapted to different speed.
5. Undercarriage image can be stored, retrieved, searched or compared with other images.
6. A variety of image processing methods: Enlarge, stretching and cutting.
7. Multi entrance management model, management, and statistics of entering and exiting vehicles.
8. Flexible detection process can be made on site to satisfy the needs of various work conditions.
9. Option of automatic number plate recognition system available, associative storage of various vehicle information and undercarriage images.
10. Image monitoring, video recording for different scenario.
Advantage of UVSS scanner:1. No need to park vehicle, can bear speed below 30km/h
2. Whole image display ion monitor
3. Operator can zoom and save image
Main TechnicaIndexes of UVSS scanner:Embedded Under Vehicle Imaging Equipment
1. Camera: Sensor: Line scans CCD, Resolution: 2048, Power Supply: 12VDC, 3A
2. Illumination: LED, Power Supply: 12VDC, 150W
3. Size: 1200mm X 350mm
4. Operating Temperature Range: -40 degree to +70 degree
Intelligent IO ControUnit of UVSS scanner:1. Input: Scale: 16 channeinput, Isolation: Photoelectric isolation, Isolation voltage: 5000Vr. M. S
2. Output: Scale: 16 channeoutput, Isolation: Relay isolation, Output Model: Make-and-break or 12VDC can be set
3. Communication Port: RS485
4. Operating Temperature Range: -10 degree to +55 degree
Controller of UVSS scanner:1. Input: 2 channeinduction coi(can optionaextend to 3 channel)
2. Output: 1 channeswitch type 12VDC
3. Communication Port: RS485, Ethernet (Optional)
4. Operating Temperature Range: -10 degree to +55 degree
System Host of UVSS scanner:1. CPU: InteCenturion Duo or higher, Memory: 2G, Hard Disk: 500G
2. Display: 22" LCD, can choose a vice display to show the image independently (optional)
3. Scene Video Record: 4 channel, Compression algorithm of scene video: H264

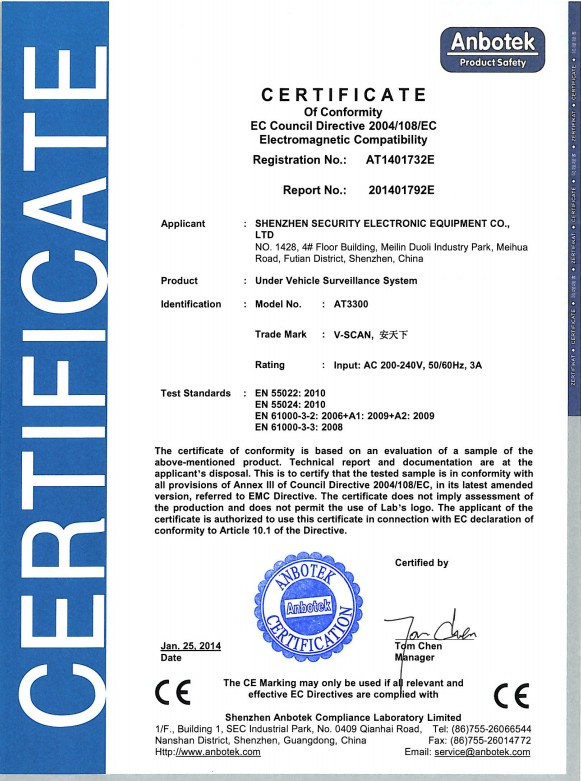

CE certification of UVSS scanner:

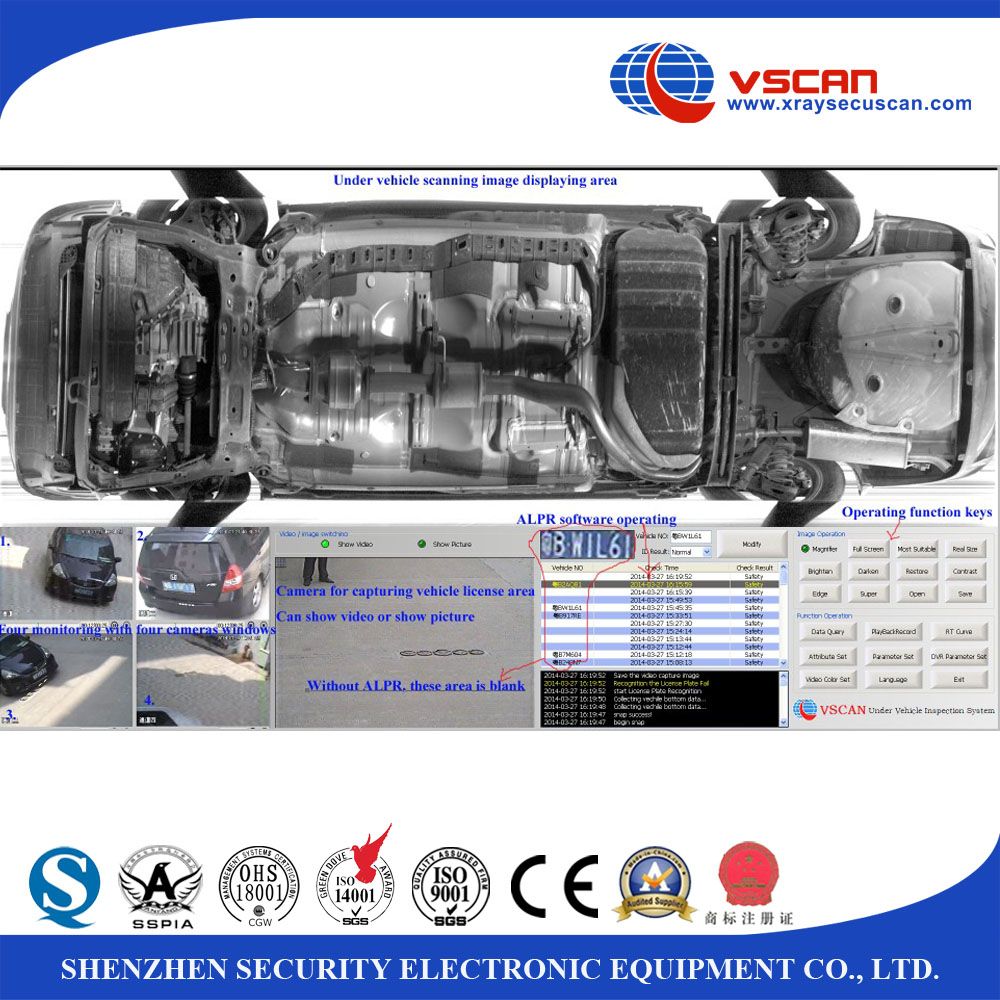

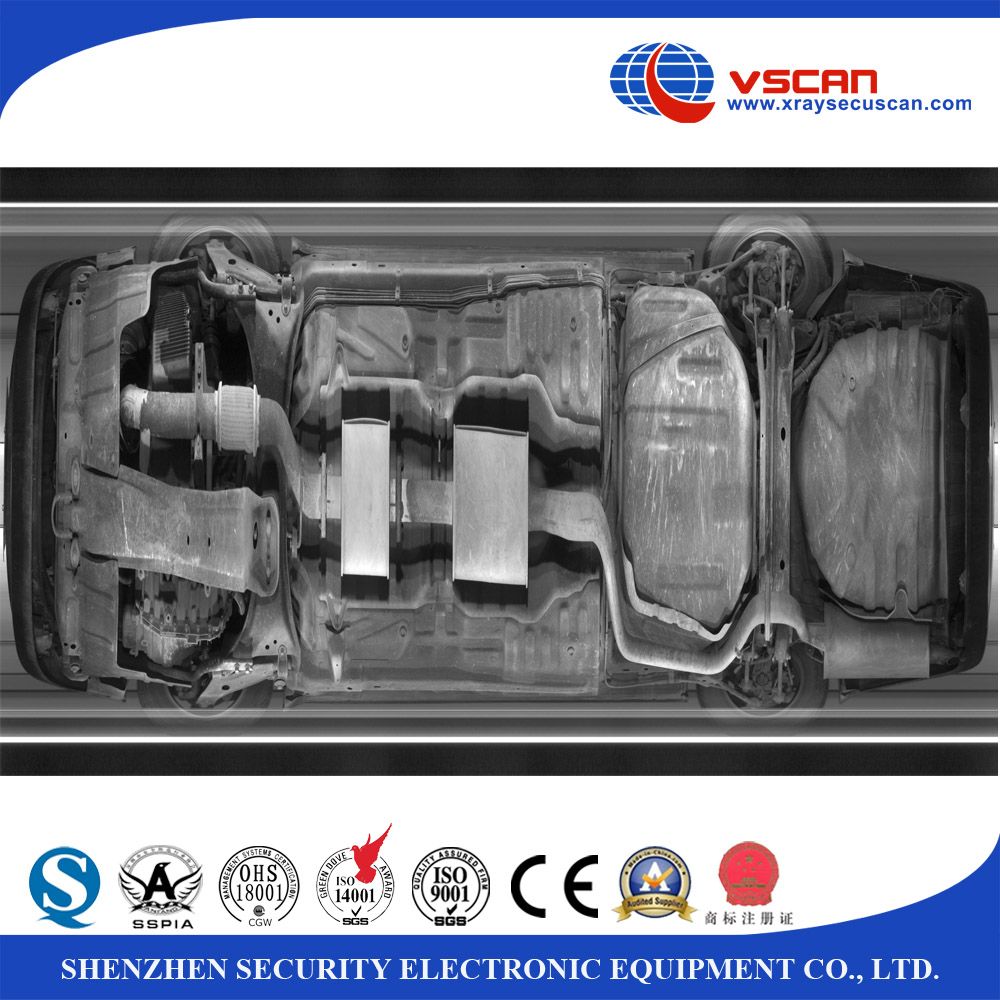

UVSS scanner picture:
