Emergency Calling System Knzd-07-a Rugged Ship Telephone Maritime
Product Specifications
| Prod Model: |
KNZD-07-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Stainless Steel |
| Analog,IP Poe,GSM: |
Optional |
| Vandal Resistant: |
Yes |
| Keypad: |
Yes |
| Handset: |
Yes |
| SIP,Analog,GSM: |
Optional |
| Type: |
Key Phone |
| Function: |
Vandal Resistant Telephone |
| Display: |
Without Display |
| Touch Screen: |
Without Touch Screen |
| Dial: |
DTMF |
| Voice Mail: |
Not Support Voice Mail |
| Accessories: |
Telephone Cords |
| Customized: |
Non-Customized |
Product Description

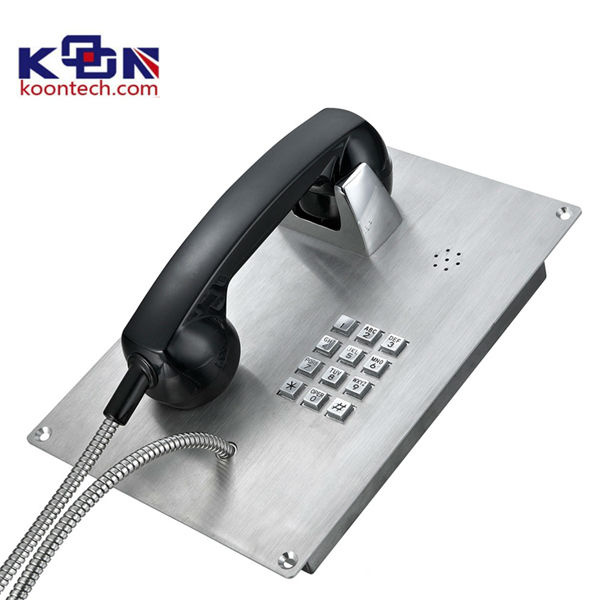

Emergency Calling System KNZD-07-A Rugged Ship Telephone Maritime
Main Features:
The telephone is compatible with most of simulative or digit telephone distance control exchanger. Mainly used as handset free sound telecommunication in hazardous work environment.
Features:
1. Analogue / IP/VIOP optional
2. Metal body. Mechanical hookswitch.
3. Autodial when phone is picked up.
4. The speed-dial number can be optionally set or changed by keypad and its very easily operated.
5. Tally with the full function of the common telephone
6. Wearable, waterproof, moisture proof, Vandal resistant and tamper-resistant hardware
7. Lightening protection to ITU-T K.21
8. Handset integrity wiring to enable the telephone system to check if the telephone unit is still operational.
9. Selectable 7 minute time out
10. Stainless steel keypad withstands high loads.
11. The stainless steel armoured handset cord is manufactured to withstand high tensile forces.
Application Examples:
As Public telephone for indoor or outdoor, Taxi or bus stands or station, Highway call box
Railway, metro, ATM machines side, Tunnel, Port, Dock, Mines, Generation facilities...
A good ideal telephone for use in wet or corrosive atmospheres
Specification:
Main technical indexes:
1. Applicable for various types of SPC exchange and dispatching exchange system with feeding voltage of 33-60V.
2. Ambient temperature: -30 ~ +60 degreeRelative Relative humidity: 10%~95%
Atmospheric pressure: 86~106Kpa Circumstance noise: <60dB(A)
3. Sound level of ringing: >70dB(A).
4. Standard frequency: low frequency group: 697, 770, 852, 941Hz,
high frequency group: 1209, 1336, 1477Hz, frequency deviation: -1.5%~+1.5%
If service line is a 3Km signal-level:
Standard frequency: low frequency group: -12dB~-6dB, high frequency group: -10dB~-4dB, level difference between low and high frequency of compound signal: 1dB~3dB, the total distortion caused by intermodulation of harmonic wave is lower than the basic level by at least 20dB.
5. Call transmission index: (5KM)SLR<12, RLR<-1, STMR>10, output impedance is 600 Ohm.
6. Super strong function is available for dialing 12 groups of numbers stored in the memory (maximum length of each number is16 digits)
Start from 1998, KOON Technology Ltd located in HONGKONG and have its own factory in Shenzhen China which is one hour drive from HONGKONG.
KOON mainly devote to the R&D, manufacture and sales of the Telephone remote management system of tourists emergency help phone, special telephone terminal and RFID. The production covered by Analogue / Fiber optic system and wireless GSM telephone system. Along with the development of the company, KOON had setted up four subsidiary corporations: Guangzhou Da Vinci electronic Ltd, Shenzhen Chieftel technology Ltd, HongKong Litongxing tradek Ltd and HongKong Koon Technology(Shenzhen) Ltd.
The Remote management system of tourists emergency help phone, R&D by ourself, poccesses timely remote voice to control and manage the site, had success-fully applied to Bank ATM stop, tourists' SOS help in Beauty Spot, transf-ormer substation, expressway remote management, SUBWAY, airport&wharf, passenger and disable assitance, etc. And it also enter into the European and American market successfully with wonderful reputation.
We have our own products proprietary intellectual property rights and the patent, and had been the unique professional telephone manufactuer Company with the IP67 waterproof standard, EN Railway 50121, CE, FCC certification in China. We had developed a good cooperation with some famous companies domestic and oversea, such as the Siemens, FHF, Alcate, Schlumberger, TTIC, ZET, Huawei...The market Stretchs across to USA, Canada, France, Russia, Italy, Norway, Switzerland, Finland, Denmark, Germany, Portugal, Holland, Britain, Brazil, Chile. Venezuela. Mexico Argentina. Malaysia. Inda. Vietnam. Thailand. Singapore. Pakistan. Nigeria. Shouth Africa. Egypt. Sudan. Tunis. Kenya. Tanzania. Morocco. etc.
Occupied 95% of SUBWAY market in China include Shenzhen, Guangzhou, Tianjin, Dalian, Shanghai, Chongqin, Chenddu. etc Otherwise, We are the important emergency communication supplier of Hingway, Beauty Spot, electric power, harbor, iron and steel industry...
KOON's patented management system deduce an important role:
Remote management system of tourists emergency help phone with timely remote voice to control and manage the site, had success-fully applied to Bank ATM stop, tourists' SOS help in Beauty Spot, transf-ormer substation, expressway remote management, SUBWAY, airport&wharf, passenger and disable assitance, etc. All the outstanding achievement had also enter into the European and American market with the explosion transmission speed.
The remote management system can manage and monitor thousands of different system call terminal, operate simplely. Wireline and wireless solar phone, RFID long-range reader, RFID card reader, RFID PARKING SYSTEM, vehicle taxes and fees Remote intelligent inspection system, remote management system of the bus. With independent intellectual property rights, a national patent, and access to government scientific and technological progress awards, most companies of the top 20 have cooperation with us, among which are FUJI intelligence, Jieshun, Red Gate, car security. We have our own R & D center and production base.
KOON has its own developing center and production base. The factory covers an area of 8000 square meters with workshop of 6000 square meters which have got ISO9001 and strictly controlling according to ISO. Professional and excellent quality control system helps KOON win clients from over the world.
Company principle: For first quality and best service.
Our team: With the camel's spirits of targeted, disciplined, perseverance, endurance.
Our staff: Of honesty, sincerity, carefulness, meticulosity and toughness.
Our vision: With the aim of creating a world famous brand and building a century-old company.
